KTM 1090 Adventure R User Manual

8 ERGONOMICS
88
8.10 Adjusting the basic position of the foot brake lever
S00283-10
–
Disconnect spring
1
.
–
Loosen nut
2
.
–
Remove screw
3
.

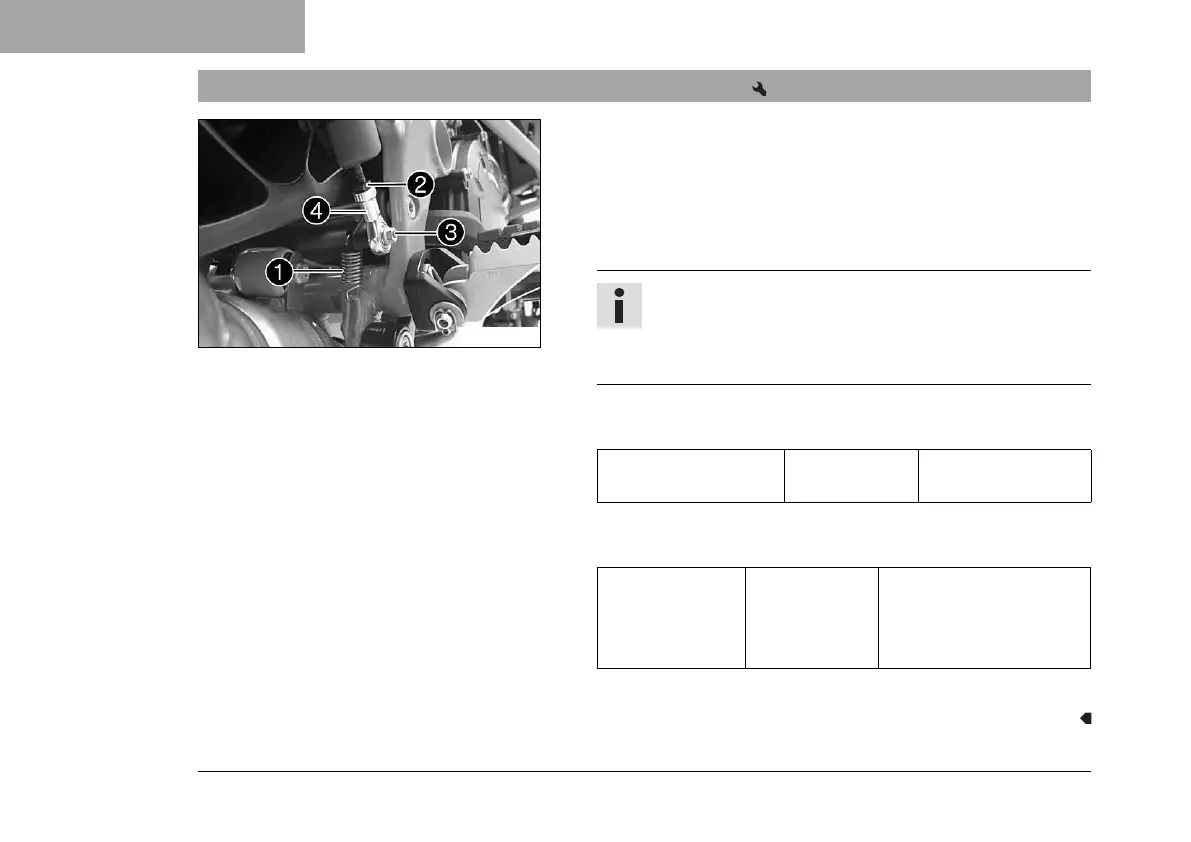

– To adjust the basic position of the foot brake lever to individ-
ual requirements, turn ball joint
4
accordingly.
Info
The range of adjustment is limited.
The screw must be screwed into the ball joint by at
least 5 turns.
–
Hold ball joint
4
and tighten nut
2
.
Guideline
Remaining chassis
nuts
M6 10 Nm (7.4 lbf ft)
–
Mount and tighten screw
3
.
Guideline
Screw, ball joint
of push rod on
foot brake cylin-
der
M6 10 Nm (7.4 lbf ft)
Loctite
®
243™
–
Attach spring
1
.

KTM 1090 Adventure R Specifications

General

Displacement	1050 cc
Torque	109 Nm
Transmission	6-speed
Fuel Capacity	23 liters
Seat Height	890 mm
Dry Weight	207 kg
Front Suspension	WP USD Ø 48 mm
Bore x Stroke	103 mm x 63 mm
Compression Ratio	12.5:1
Starter	Electric starter
Fuel System	Electronic fuel injection
Front Wheel	2.50 x 21"
Rear Wheel	4.50 x 18"
Front Tire	90/90-21
Rear Tire	150/70-18
Ground Clearance	250 mm
Engine Type	V-Twin, 4-stroke, DOHC
Power	125 hp (92 kW)
Rear Suspension	WP shock absorber
Front Brake	2 x 320 mm discs, 4-piston radial fixed calipers
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9M+ two-channel ABS (disengageable)
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
