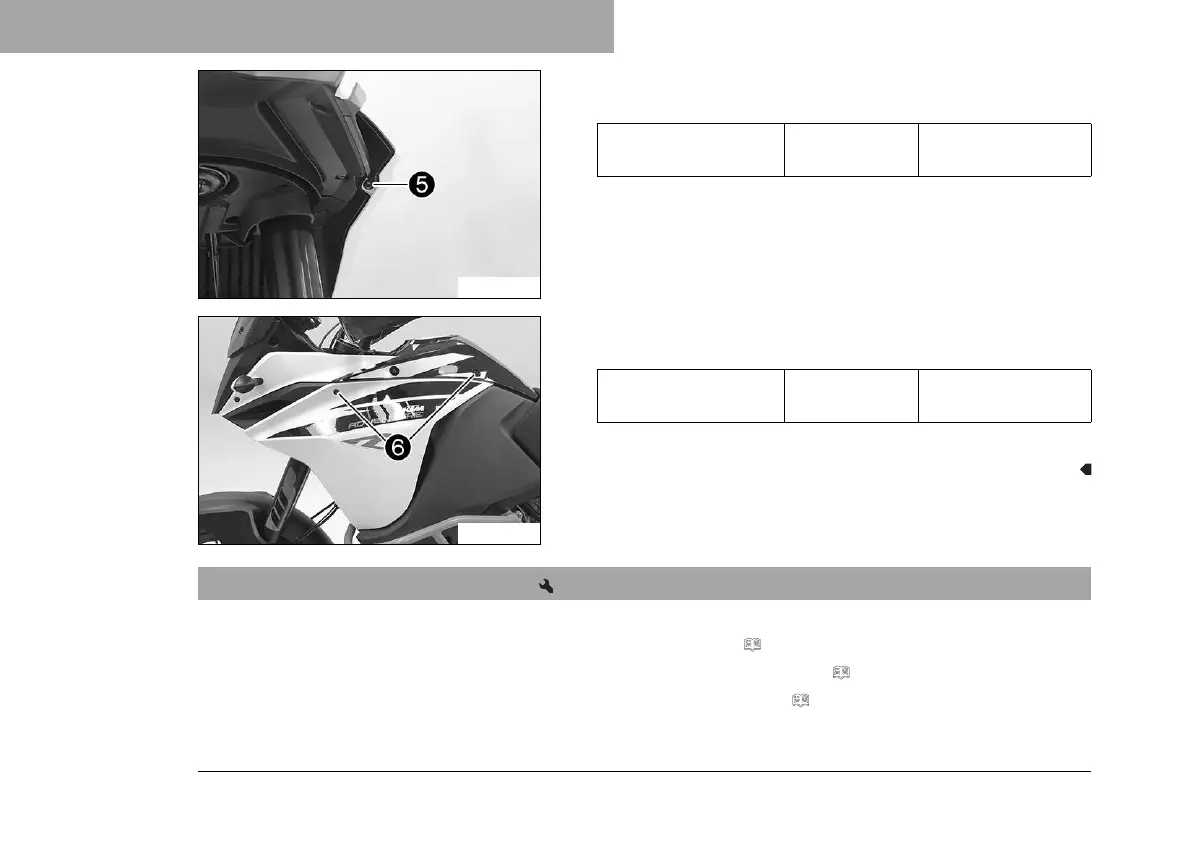

13 SERVICE WORK ON THE CHASSIS
150
S01786-11
Mount and tighten screw
5
.
Guideline
Screw, cover part M5 3.5 Nm
(2.58 lbf ft)
S01790-10
Mount and tighten screws
6
.
Guideline
Screw, cover part M5 3.5 Nm
(2.58 lbf ft)
Repeat these steps on the opposite side.
13.20 Removing the mask spoiler
Preparatory work
Remove the seat. ( p. 133)
Remove the front side cover. ( p. 148)
Remove the tank cover. ( p. 160)
