KTM 1090 Adventure R User Manual

SERVICE WORK ON THE CHASSIS 13
149
13.19 Installing the front side cover
S01788-10
–

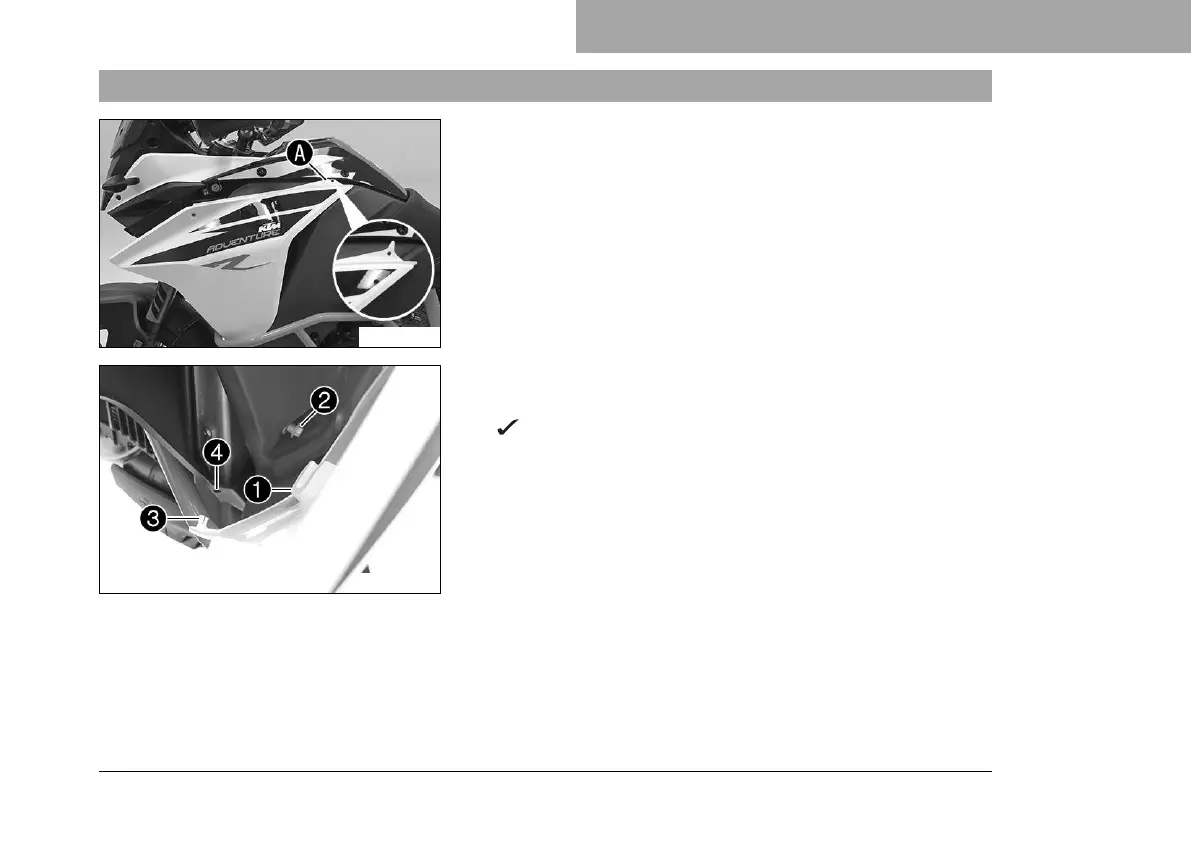

Position the side cover in the area
A
under the tank cover.
S01789-10
–
Attach catch
1
of the side cover to bracket
2
and position
on the fuel tank.
The holding lug
3
engages in the hole
4
.

KTM 1090 Adventure R Specifications

General

Displacement	1050 cc
Torque	109 Nm
Transmission	6-speed
Fuel Capacity	23 liters
Seat Height	890 mm
Dry Weight	207 kg
Front Suspension	WP USD Ø 48 mm
Bore x Stroke	103 mm x 63 mm
Compression Ratio	12.5:1
Starter	Electric starter
Fuel System	Electronic fuel injection
Front Wheel	2.50 x 21"
Rear Wheel	4.50 x 18"
Front Tire	90/90-21
Rear Tire	150/70-18
Ground Clearance	250 mm
Engine Type	V-Twin, 4-stroke, DOHC
Power	125 hp (92 kW)
Rear Suspension	WP shock absorber
Front Brake	2 x 320 mm discs, 4-piston radial fixed calipers
Rear Brake	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9M+ two-channel ABS (disengageable)
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
