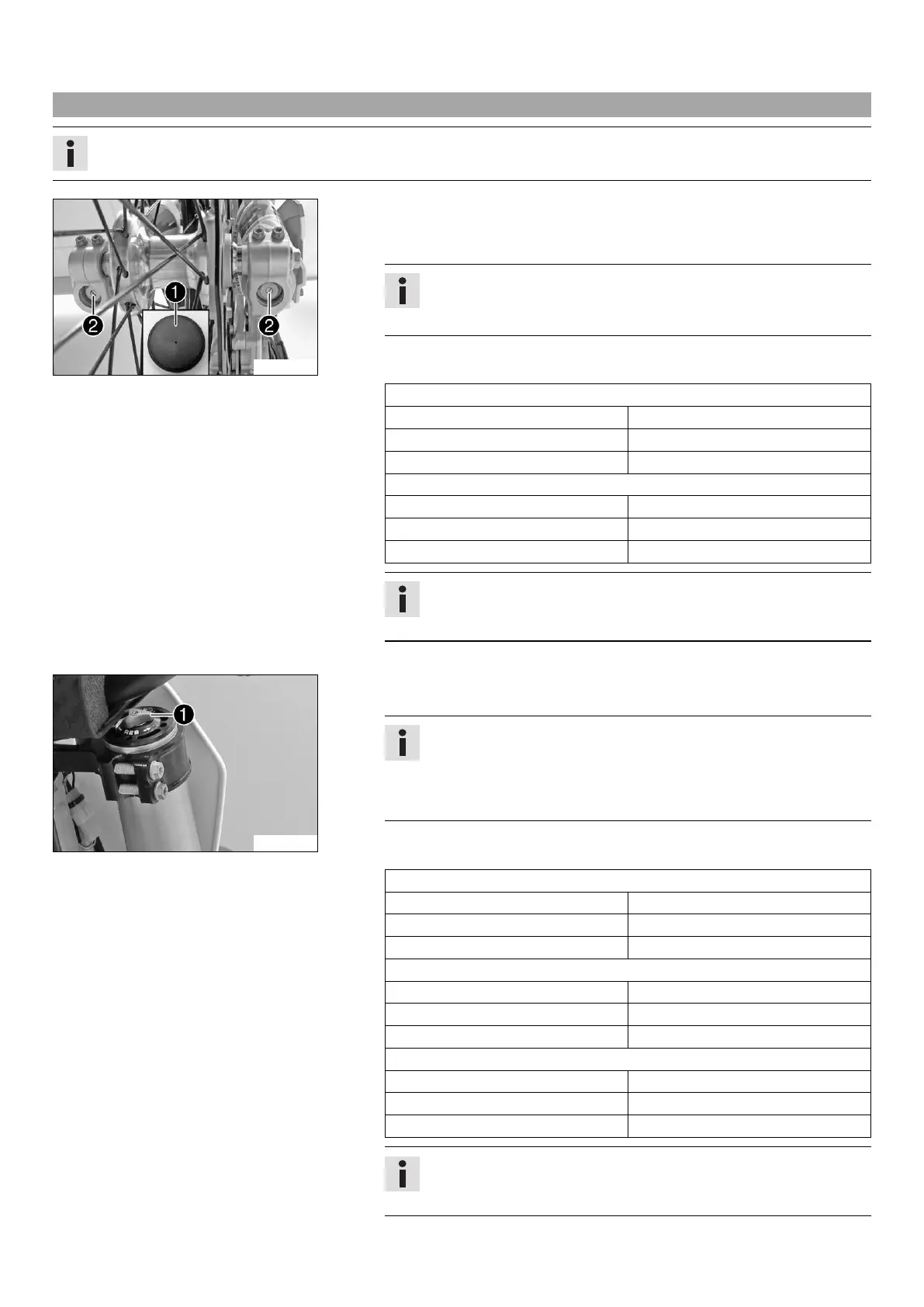

10 TUNING THE CHASSIS 37
10.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
B02083-10
(125 SX EU, 150 SX EU, 250 SX EU)
–
Remove protection caps

.
–
Turn adjusting screws

clockwise all the way.
Info
Adjusting screws

are located at the bottom end of the fork legs.
Make the same adjustment on both fork legs.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping (125 SX EU, 150 SX EU)
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Rebound damping (250 SX EU)
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
–
Mount protection caps

.
B02084-10
(All XC models, 125 SX US, 150 SX US, 250 SX US)
–
Turn the red adjusting screw

all the way clockwise.
Info
Adjusting screw

is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping (125 SX US, 150 SX US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (All XC models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
