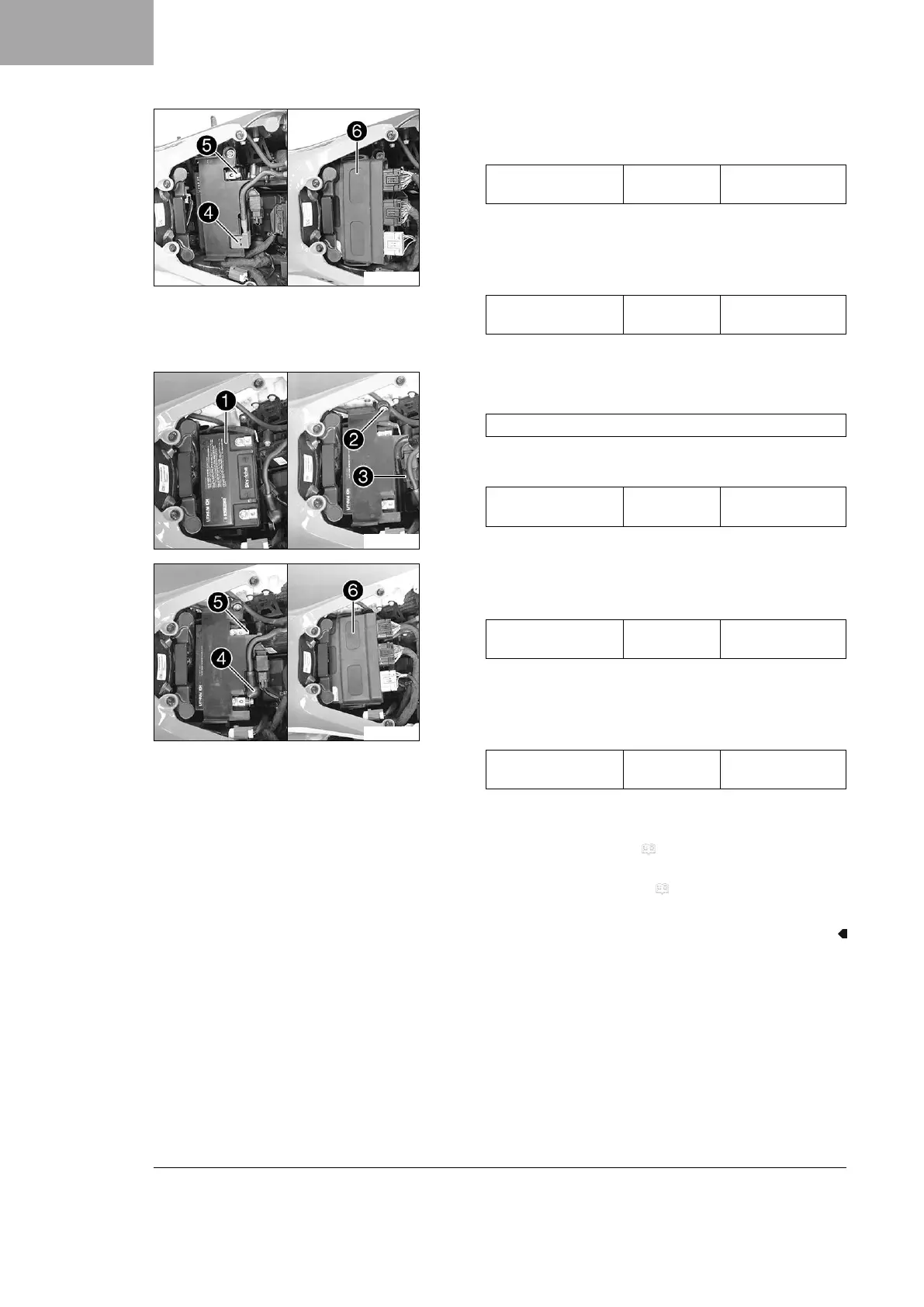

3 WORK
12
S03937-10
Position the positive cable and mount and tighten the
screw.
Guideline
Screw, battery ter-
minal
M6 4.5 Nm
(3.32 lbf ft)
Mount positive terminal cover
4
.
Position negative cable
5
and mount and tighten the
screw.
Guideline
Screw, battery ter-
minal
M6 4.5 Nm
(3.32 lbf ft)
Position control unit
6
.
S04811-10
(SUPER DUKE RR)
Insert 12-V battery
1
into the battery compartment.
12-V battery (HJTZ14S-FPI)
Position the battery cover, mount screw
2
, and tighten.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
Join plug-in connector
3
.
S04812-10
Position the positive cable and mount and tighten the
screw.
Guideline
Screw, battery ter-
minal
M6 4.5 Nm
(3.32 lbf ft)
Position positive terminal cover
4
.
Position negative cable
5
and mount and tighten the
screw.
Guideline
Screw, battery ter-
minal
M6 4.5 Nm
(3.32 lbf ft)
Position control unit
6
.
Finishing work
Mount the front rider's seat. ( p. 9)
(SUPER DUKE R)
Mount the passenger seat. ( p. 8)
Set time and date.
