KTM 1290 Super Duke R Setup Instructions

2 SETUP
4

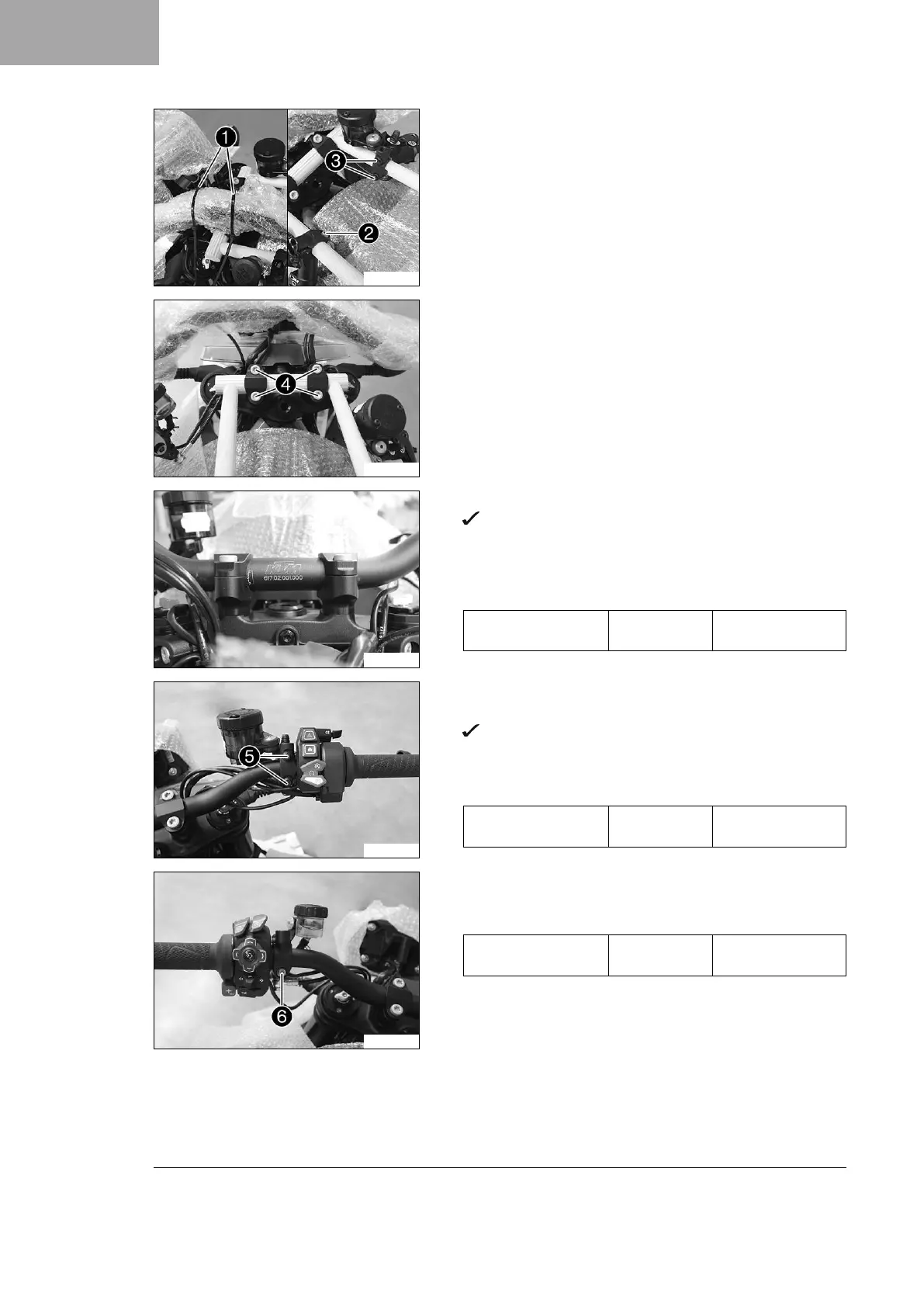

S04114-10
–
Remove cable tie(s)
1
.
–
Remove screws
2
and
3
.
– Take off the controls from the transport holder.
S04115-10
–
Remove the handlebar clamp screws
4
.
– Take off the handlebar clamp and transport holder.
S04116-01
– Position the handlebar.
The markings of the handlebar scale are located centrally
between the handlebar clamp.
– Position the handlebar clamp. Mount and tighten the screws
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
S04117-10
– Position the brake assembly on the handlebar.
– Position brake assembly clamp on the handlebar.
The holding lug of the clamp engages in the combination
switch.
–
Mount and tighten screws
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S04118-10
– Position the clutch assembly on the handlebar.
–
Mount and tighten screw
6
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 1290 Super Duke R Specifications

General

Displacement	1301 cc
Transmission	6-speed
Seat Height	835 mm
Fuel Tank Capacity	16 liters
Dry Weight	189 kg
Starter	Electric starter
Fuel System	Electronic fuel injection
Traction Control	MTC (Motorcycle Traction Control), lean-angle sensitive
Wheelbase	1482 mm
Front Tire	120/70 ZR 17
Rear Tire	200/55 ZR 17
Engine Type	V-Twin, 4-stroke
Power	180 hp (132 kW) @ 9500 rpm
Torque	140 Nm
Frame	Chromium-Molybdenum steel frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX monoshock
Rear Brake	Brembo two-piston caliper, 240 mm disc
Front Brake	Dual 320 mm discs, Brembo Stylema monobloc calipers
ABS	Bosch 9.1 MP (incl. Cornering-ABS and Supermoto mode)
