10 TUNING THE CHASSIS 69

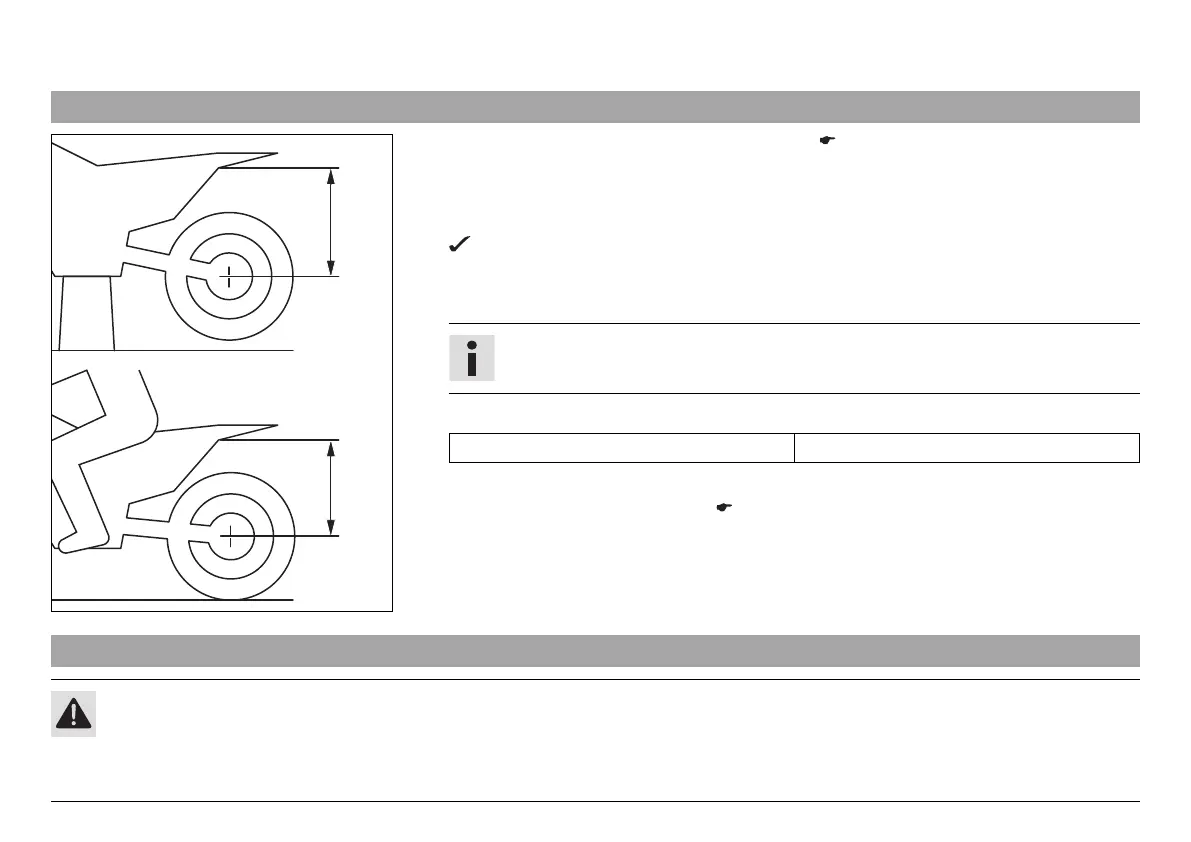

10.10 Checking the riding sag of the shock absorber
400990-10
–
Measure distance
of rear wheel unloaded. ( p. 67)
– With another person holding the motorcycle, the rider, wearing full protective clothing,
sits on the seat in a normal sitting position (feet on footrests) and bounces up and down
a few times.
The rear wheel suspension levels out.
– Another person now measures the distance between the rear axle and a fixed point.
–
Note down the value as dimension
.
Info
The riding sag is the difference between measurements
and
.
– Check the riding sag.
Riding sag 70… 80 mm (2.76… 3.15 in)
» If the riding sag differs from the specified measurement:
–
Adjust the riding sag. x ( p. 71)
10.11 Adjusting the spring preload of the shock absorber x
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)
