KTM 690 Enduro R 2021 Setup Instructions

3 WORK
8

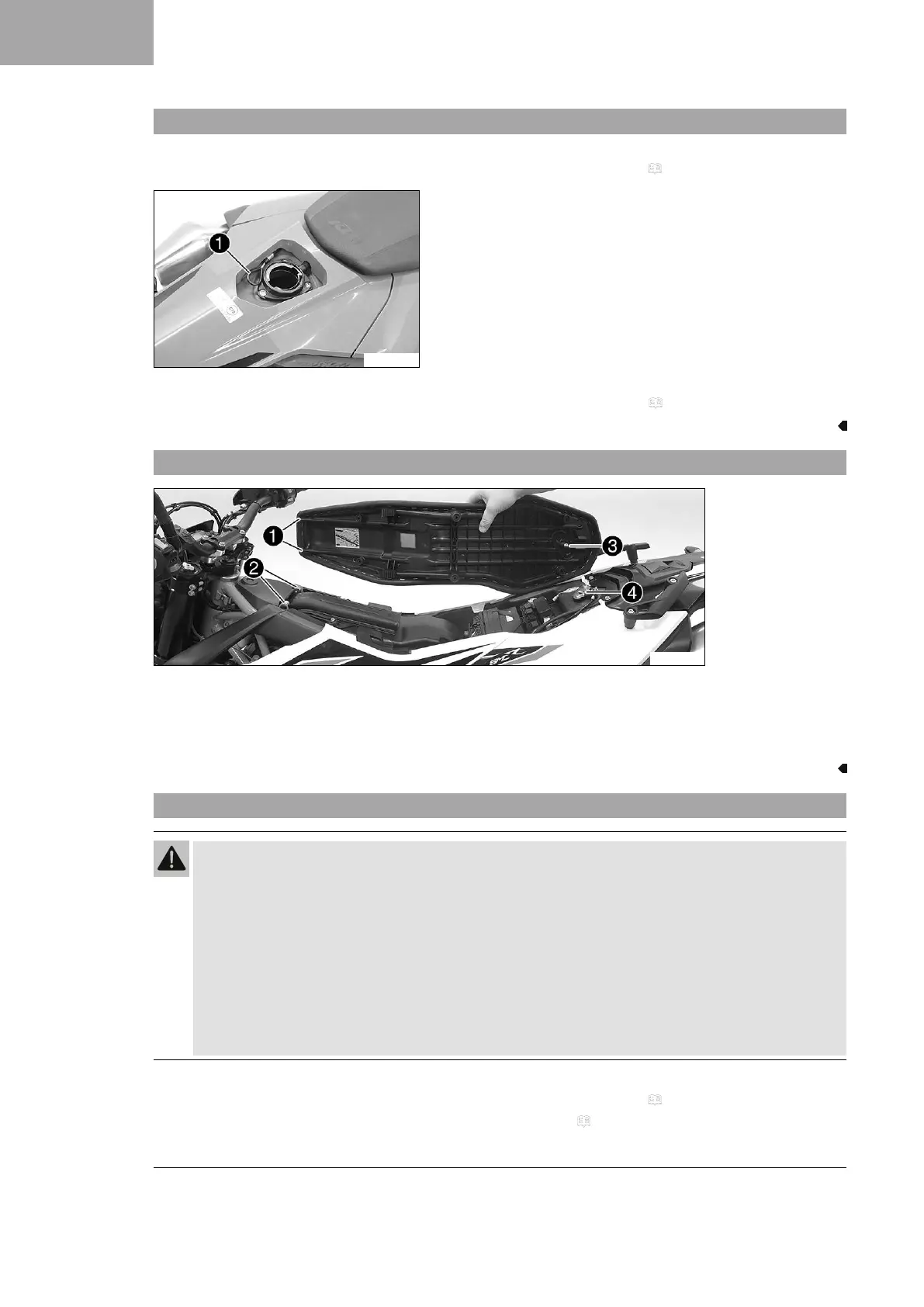

3.1 Removing the seat
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
S04383-10
Main work
–
Pull on loop
1
and raise the rear of the seat.
– Pull the seat back and lift it off.
Finishing work
– Close the fuel tank filler cap. ( p. 12)
3.2 Mounting the seat
S03282-10
–
Hook the seat using holding lugs
1
on to bushings
2
, lower the seat at the rear and push it forward.
–
Push locking pin
3
into lock housing
4
and push the back of the seat down until the locking pin locks in
place with an audible click.
– Check that the seat is correctly mounted.
3.3 Removing the 12-V battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep 12 V batteries out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Avoid contact with battery acid and battery gases.
– Keep sparks or open flames away from the 12 V battery.
– Only charge 12 V batteries in well-ventilated rooms.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
–
Remove the seat. ( p. 8)

KTM 690 Enduro R 2021 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid-cooled
Compression Ratio	12.7:1
Starter	Electric starter
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Power	74 hp (55 kW) @ 8, 000 rpm
Torque	73.5 Nm
Frame	Chromoly steel trellis frame
Front Suspension	WP XPLOR USD, 48 mm
Rear Suspension	WP XPLOR monoshock
Front Brake	Single 300 mm disc
Rear Brake	Single 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Front Wheel	21 inch
Rear Wheel	18 inch
Wheelbase	1504 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
