KTM 690 Enduro R 2021 Setup Instructions

SETUP 2
7
S03408-01
–

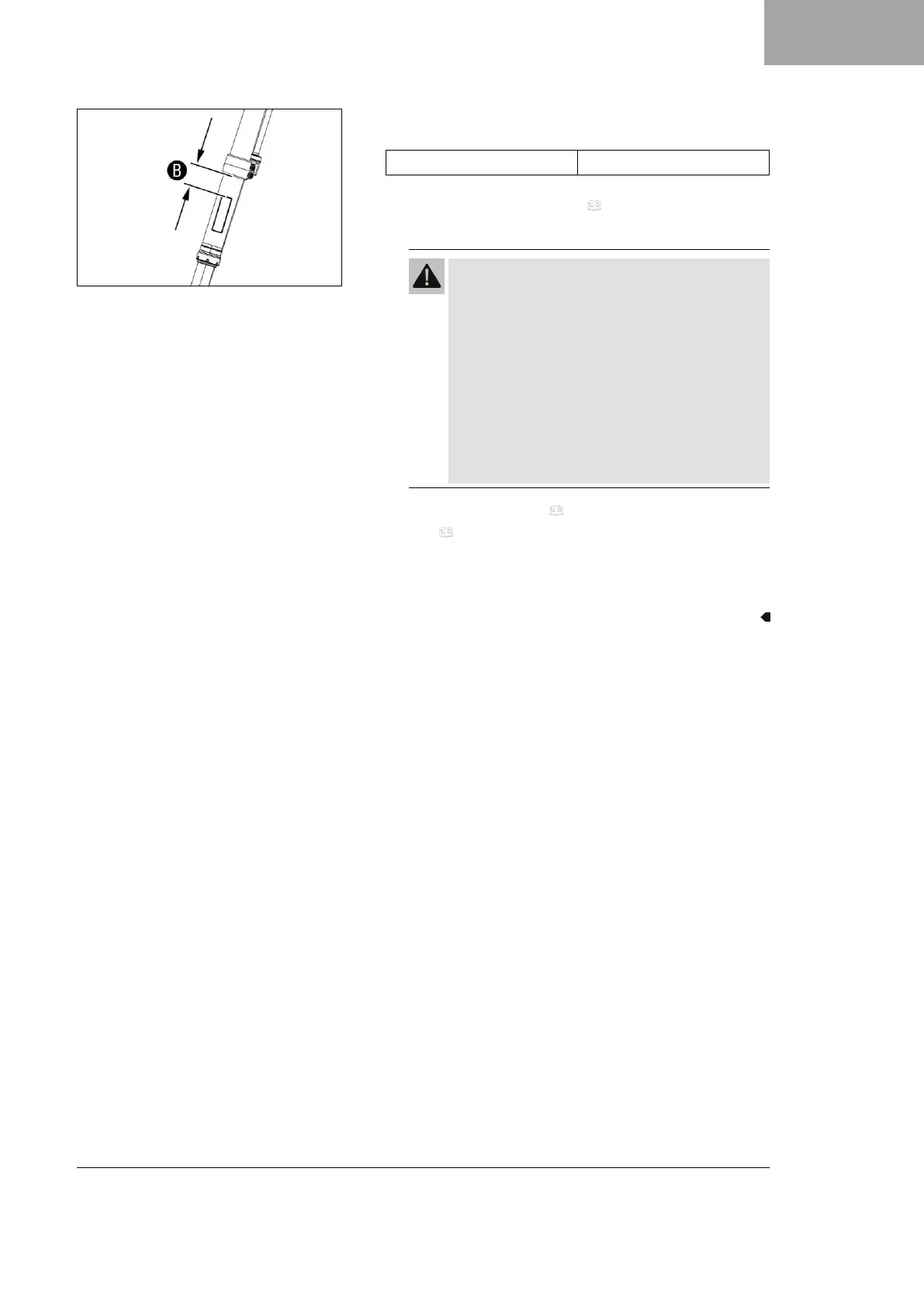

Mount the reflectors with distance
B
on the fork.
Guideline
Distance
B
for reflectors
100 mm (3.94 in)
Operation as a 2-seater
– Mount rear footrest bracket. ( p. 17)
Operation as a 1-seater (only if requested by customer)
Warning
Voiding of the government approval for road use and
the insurance coverage If the heel protector is fit-
ted instead of the footrest bracket, the vehicle no
longer conforms to the homologation.
The vehicle is homologated in the factory as 2-
seater.
– Set up the vehicle as standard as a 2-seater.
– If you set up the vehicle as a 1 seater, ensure
the change is entered in the registration papers
before preparing for use.
– Mount heel protector. ( p. 17)
– Refuel. ( p. 18)
– Prepare the vehicle according to the specifications in
KTM Dealer.net for handover to the customer.
– Set the kilometers or miles.

KTM 690 Enduro R 2021 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid-cooled
Compression Ratio	12.7:1
Starter	Electric starter
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Power	74 hp (55 kW) @ 8, 000 rpm
Torque	73.5 Nm
Frame	Chromoly steel trellis frame
Front Suspension	WP XPLOR USD, 48 mm
Rear Suspension	WP XPLOR monoshock
Front Brake	Single 300 mm disc
Rear Brake	Single 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Front Wheel	21 inch
Rear Wheel	18 inch
Wheelbase	1504 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
