KTM 690 SMC R 2016 Series User Manual

3 WORK 10

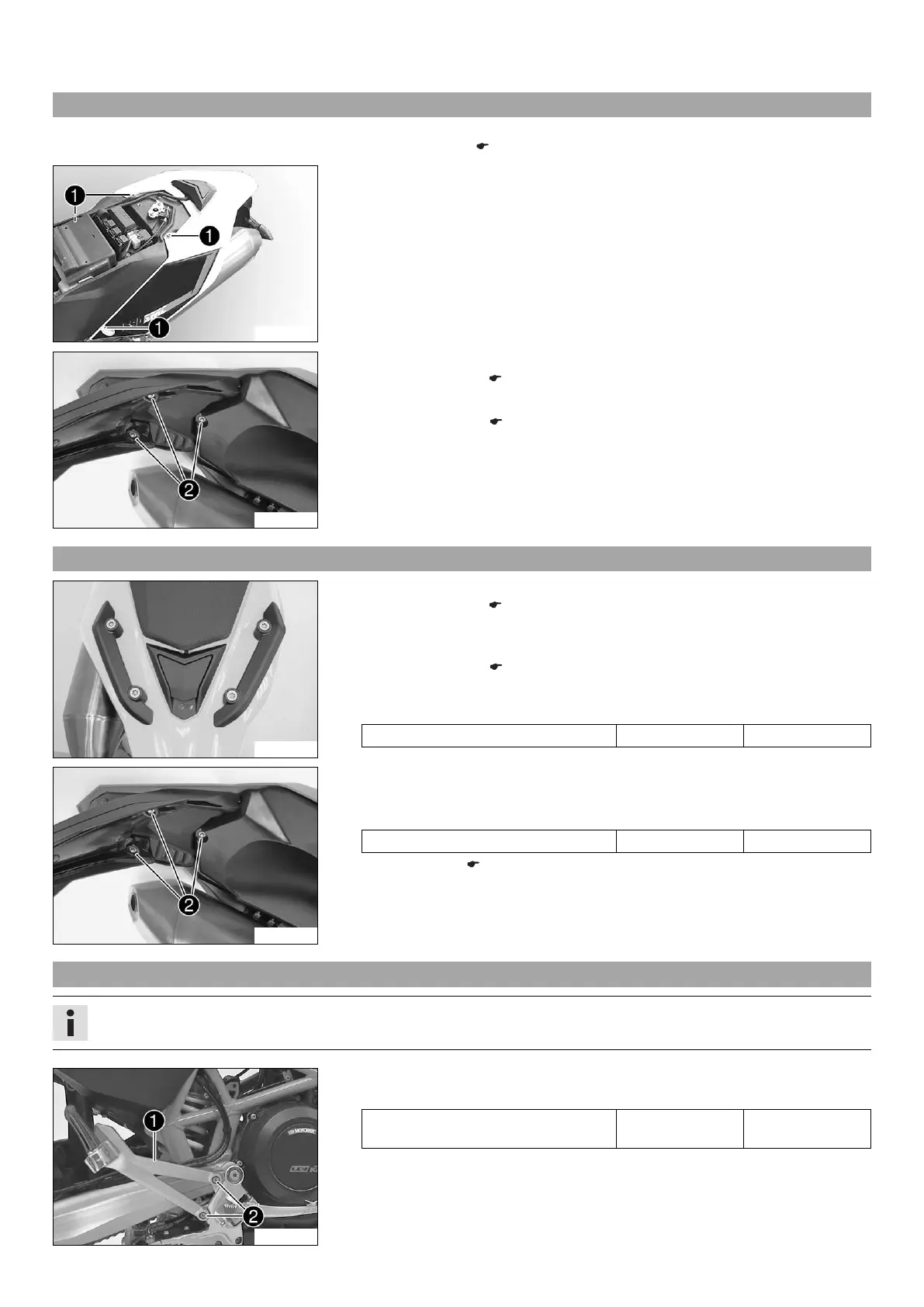

3.8 Removing rear fairing
Preparatory work
– Remove the seat. ( p. 6)
S00811-10
Main work
–
Remove screws

.
100314-10
–
Remove screws

.
– Open the filler cap. ( p. 9)
– Take off the rear fairing.
– Close the filler cap. ( p. 9)
3.9 Fitting rear fairing
S00806-10
– Position the license plate holder and cable harness.
– Open the filler cap. ( p. 9)
–
Position the rear fairing and grab handles

as shown in the figure. Fit and
slightly tighten the screws of the grab handles.
– Close the filler cap. ( p. 9)
– Fit and tighten the screws on the rear fairing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
100314-10
–
Mount and tighten screws

.
– Tighten the screws of the grab handles.
Guideline
Screw, grab handle M8 10 Nm (7.4 lbf ft)
– Mount the seat. ( p. 6)
3.10 Mounting rear footrest bracket
Info
The operations are the same for the left and right sides.
S00784-10
–
Position the footrest bracket

. Mount and tighten screws

.
Guideline
Screw, rear footrest bracket M8x16 25 Nm
(18.4 lbf ft)

KTM 690 SMC R 2016 Series Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Cooling	Liquid cooled
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Fuel Tank Capacity	13.5 liters
Power	67 hp
Fuel System	Keihin EFI with 46mm throttle body
Clutch	hydraulically operated
Rear Suspension	WP monoshock
Front Brake	Brembo 4-piston radial fixed caliper, brake disc Ø 320 mm
Rear Brake	Brembo single-piston caliper, 240 mm disc
ABS	Bosch two-channel ABS (disengageable)
