2 SETUP 3

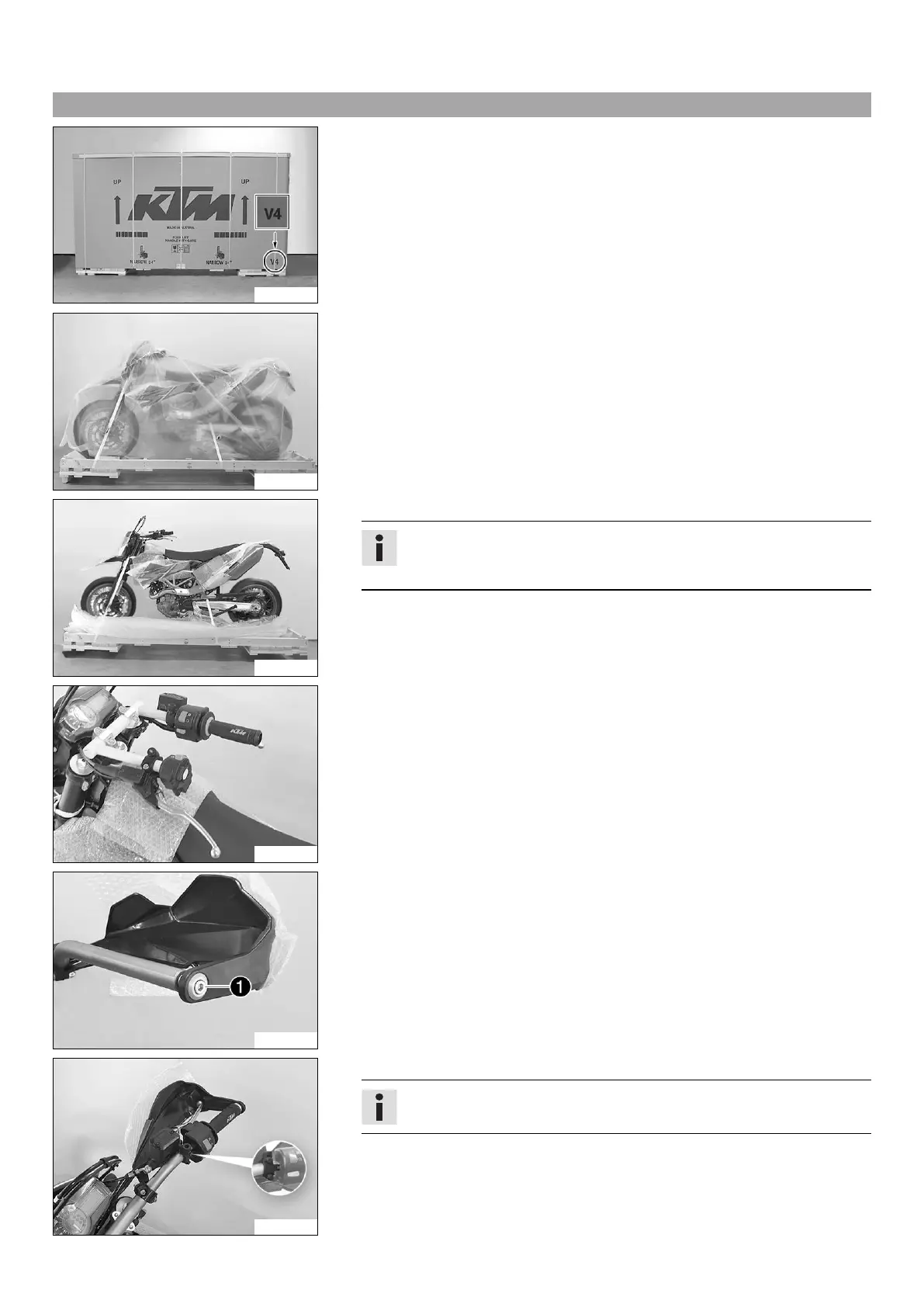

2.1 Unpacking and setting up the vehicle
S00791-10
– Remove the straps and box.
S00809-10
– Remove the adhesive tape in the upper area of the motorcycle.
S00810-10
– Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking, leave the other films
on the vehicle until you have finished work on the vehicle.
– Remove the separate enclosure and unpack it. Check the separate enclosure for
completeness.
– Check the vehicle for transport damage.
S00794-10
– Remove the controls from the transport holder.
– Remove the screws and handlebar clamps.
– Remove the transport holder.
S00795-10
–
Remove screw

of the right hand guard.
S00796-10
– Position the controls on the right half of the handlebar.
Info
The figure shows how to route the cable and lines.
– Mount the screws.

KTM 690 SMC R 2016 Series Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Cooling	Liquid cooled
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Fuel Tank Capacity	13.5 liters
Power	67 hp
Fuel System	Keihin EFI with 46mm throttle body
Clutch	hydraulically operated
Rear Suspension	WP monoshock
Front Brake	Brembo 4-piston radial fixed caliper, brake disc Ø 320 mm
Rear Brake	Brembo single-piston caliper, 240 mm disc
ABS	Bosch two-channel ABS (disengageable)
