KTM 690 SMC R 2016 Series User Manual

2 SETUP 4
S00797-10

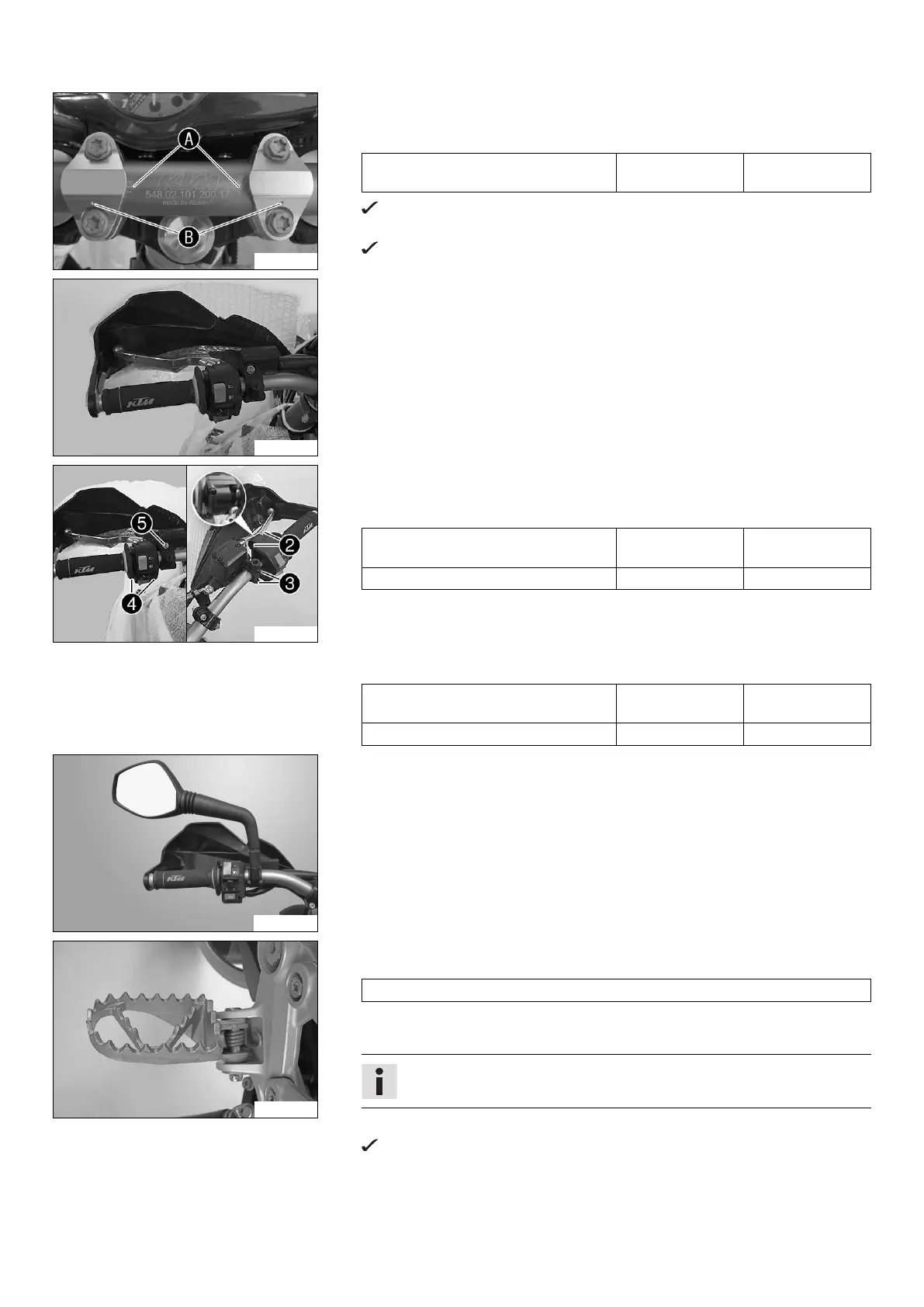

– Position the handlebar.
– Position the handlebar clamps. Mount the four screws and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
The markings

of the handlebar scale are located centrally between the han-
dlebar clamps.
Markings

face backwards.
S00798-10
– Position the controls on the left half of the handlebar.
– Mount the screws.
S00799-10
– Position all controls in their exact positions on the handlebar.
–
Tighten screws

and

.
Guideline
Screw, throttle grip M5 3.5 Nm
(2.58 lbf ft)
Screw, brake assembly M6 5 Nm (3.7 lbf ft)
– Check the throttle grip for smooth operation.
– Mount and tighten the screw of the right hand guard.
–
Tighten screws

and

.
Guideline
Screw, combination switch, left M5 3.5 Nm
(2.58 lbf ft)
Screw, clutch assembly M6 5 Nm (3.7 lbf ft)
K00062-01
– Mount and tighten the rear mirror adapter and rear mirror on both sides.
100308-01
– Mount the footrests with springs and pins. Secure the pins using washers and cot-
ter pins.
Pliers for footrest spring (58429083000)
– Remove the protective plastic.
– Carefully loosen and remove the tension belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
– Carefully loosen and remove the tension belts around the lower triple clamp.
The vehicle is released at the front.
– Together with an assistant, take the vehicle off the palette.

KTM 690 SMC R 2016 Series Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Cooling	Liquid cooled
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Fuel Tank Capacity	13.5 liters
Power	67 hp
Fuel System	Keihin EFI with 46mm throttle body
Clutch	hydraulically operated
Rear Suspension	WP monoshock
Front Brake	Brembo 4-piston radial fixed caliper, brake disc Ø 320 mm
Rear Brake	Brembo single-piston caliper, 240 mm disc
ABS	Bosch two-channel ABS (disengageable)
