KTM 690 SMC R 2016 Series User Manual

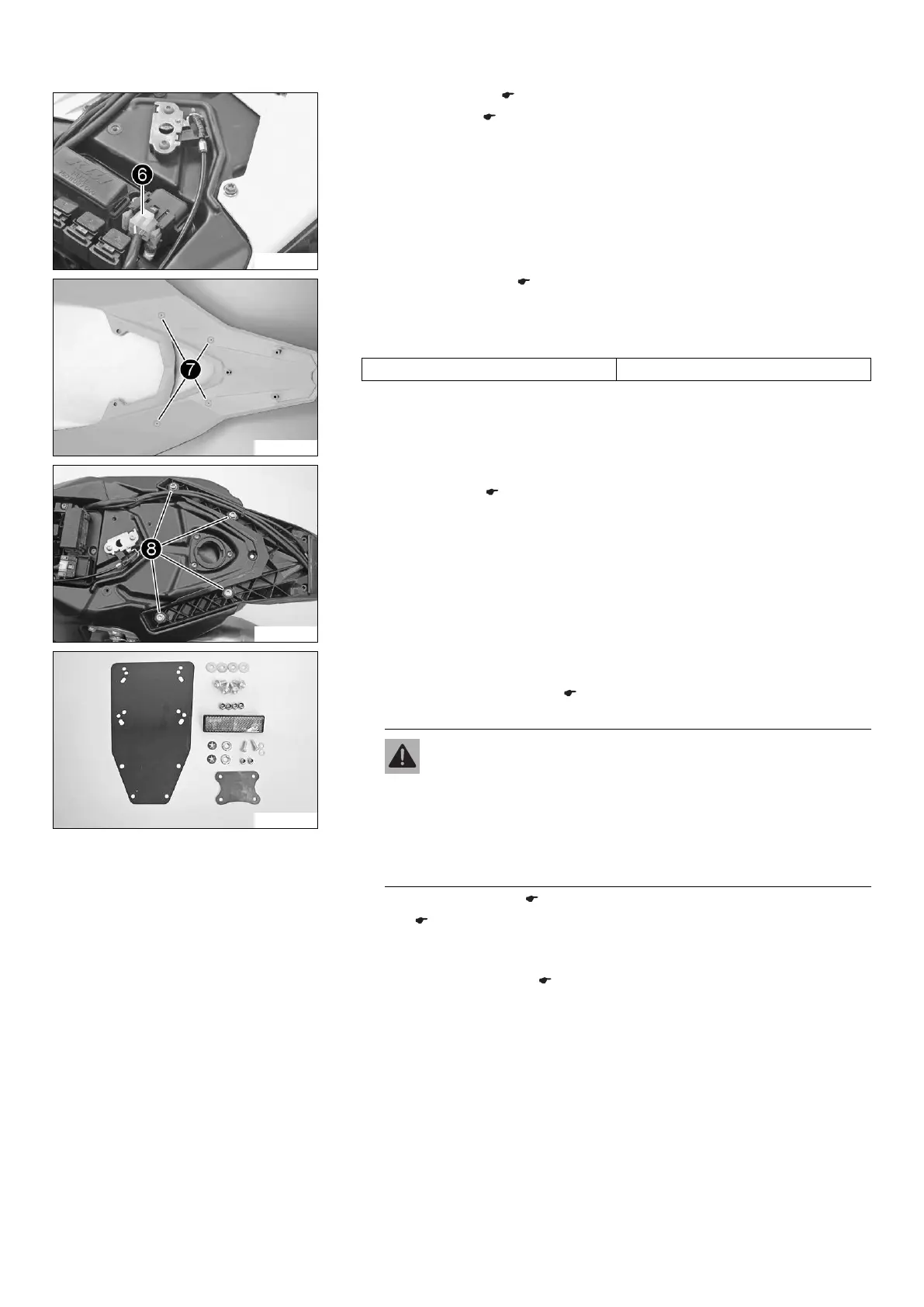

2 SETUP 5
S00801-10
– Recharge the battery. ( p. 7)
– Install the battery. ( p. 8)
–
Plug in connector

on the starter relay.
S00802-10
– Remove the rear fairing. ( p. 10)
–
Four markings

are found on the underside of the rear fairing. At these location,
drill holes to the specified diameter in three stages.
Guideline
Hole diameter for grab handles 14.5 mm (0.571 in)
S00803-10
–
Remove screws

.
– Fit the rear fairing. ( p. 10)
201901-10
– Mount the reflector.
Operation as a 2-seater
– Mount rear footrest bracket. ( p. 10)
Operation as a 1-seater (only if requested by customer)
Warning
Forfeiture of homologation and insurance cover The vehicle is
homologated as 2-seater. If the heel protector is fitted instead of the
footrest bracket, the vehicle no longer conforms to the homologation and
must not be operated in this form without alterations to the registration
papers.
– Set up and operate the vehicle as a 2-seater or have changes made
to the registration papers.
– Mount heel protector. ( p. 11)
– Refuel. ( p. 11)
– Prepare the vehicle according to the specifications in the KTM Dealer.net for han-
dover to the customer.
– Set the kilometers or miles. ( p. 12)

KTM 690 SMC R 2016 Series Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Cooling	Liquid cooled
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Fuel Tank Capacity	13.5 liters
Power	67 hp
Fuel System	Keihin EFI with 46mm throttle body
Clutch	hydraulically operated
Rear Suspension	WP monoshock
Front Brake	Brembo 4-piston radial fixed caliper, brake disc Ø 320 mm
Rear Brake	Brembo single-piston caliper, 240 mm disc
ABS	Bosch two-channel ABS (disengageable)
