3 WORK 8

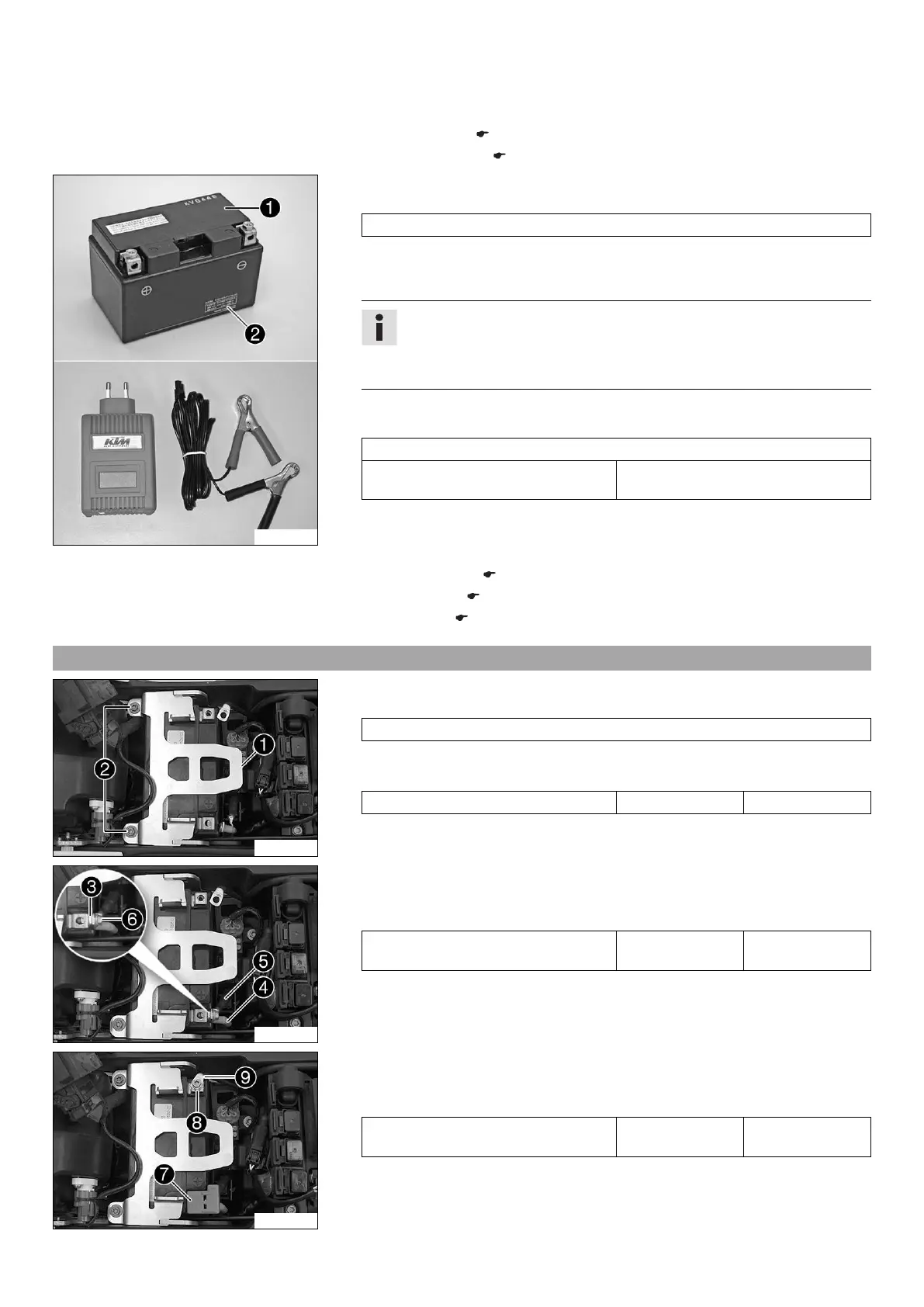

Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 6)
– Remove the battery. ( p. 6)
S01013-10
Main work
– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the
battery, and to test the alternator. With this device, you cannot overcharge the bat-
tery.
Info
Never remove lid

.
Charge the battery with a maximum of 10% of the capacity specified on the
battery housing

.
– Switch off the battery charger after charging and disconnect from the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
– Install the battery. ( p. 8)
– Mount the seat. ( p. 6)
– Set the clock. ( p. 12)
3.5 Installing the battery
S00621-11
Main work
– Insert the battery into the battery compartment with the terminals facing rearward.
Battery (YTZ10S)
–
Position retaining bracket

and mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
S00623-10
–
Position washer

, positive cable

, and ABS connection cable

.
–
Mount and tighten screw

.
Guideline
Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
S00622-11
–
Position positive terminal cover

.
–
Position washer

and negative cable

, and mount and tighten the screw.
Guideline
Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)

KTM 690 SMC R 2016 Series Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Cooling	Liquid cooled
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Fuel Tank Capacity	13.5 liters
Power	67 hp
Fuel System	Keihin EFI with 46mm throttle body
Clutch	hydraulically operated
Rear Suspension	WP monoshock
Front Brake	Brembo 4-piston radial fixed caliper, brake disc Ø 320 mm
Rear Brake	Brembo single-piston caliper, 240 mm disc
ABS	Bosch two-channel ABS (disengageable)
