KTM 690 SMC R Setup Instructions

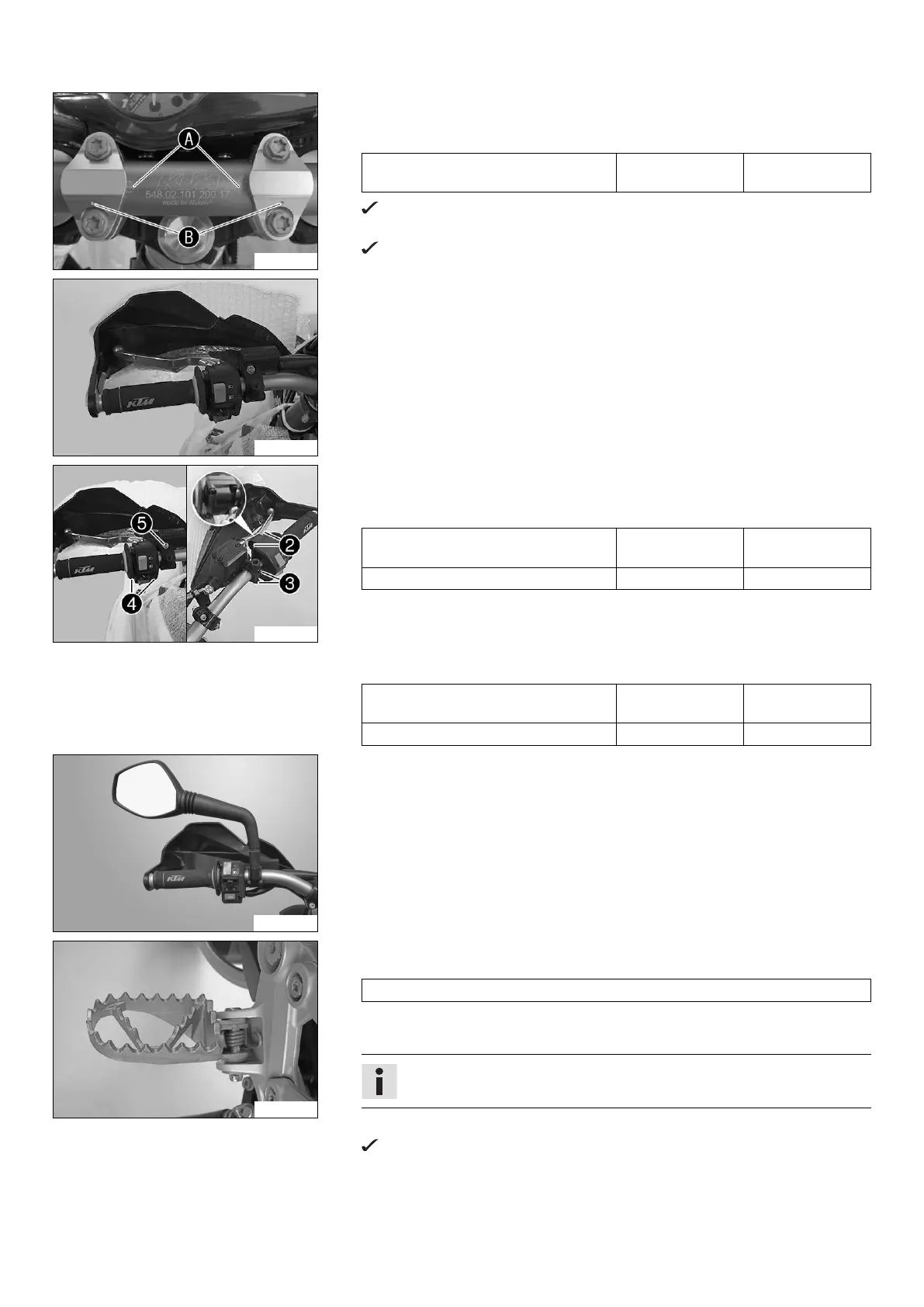

2 SETUP 4
S00797-10
– Position the handlebar.
– Position the handlebar clamps. Mount the four screws and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
The markings
A
of the handlebar scale are located centrally between the han-
dlebar clamps.
Markings
B
face backwards.
S00798-10
– Position the controls on the left half of the handlebar.
– Mount the screws.
S00799-10
– Position all controls in their exact positions on the handlebar.
–
Tighten screws
2
and
3
.
Guideline
Screw, throttle grip M5 3.5 Nm
(2.58 lbf ft)
Screw, brake assembly M6 5 Nm (3.7 lbf ft)
– Check the throttle grip for smooth operation.
– Mount and tighten the screw of the right hand guard.
–
Tighten screws
4
and
5
.
Guideline
Screw, combination switch, left M5 3.5 Nm
(2.58 lbf ft)
Screw, clutch assembly M6 5 Nm (3.7 lbf ft)
K00062-01
– Mount and tighten the rear mirror adapter and rear mirror on both sides.
100308-01
– Mount the footrests with springs and pins. Secure the pins using washers and cot-
ter pins.
Pliers for footrest spring (58429083000)
– Remove the protective plastic.
– Carefully loosen and remove the tension belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
– Carefully loosen and remove the tensioning belts around the lower triple clamp.
The vehicle is released at the front.
– Together with an assistant, take the vehicle off the palette.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
