KTM 690 SMC R Setup Instructions

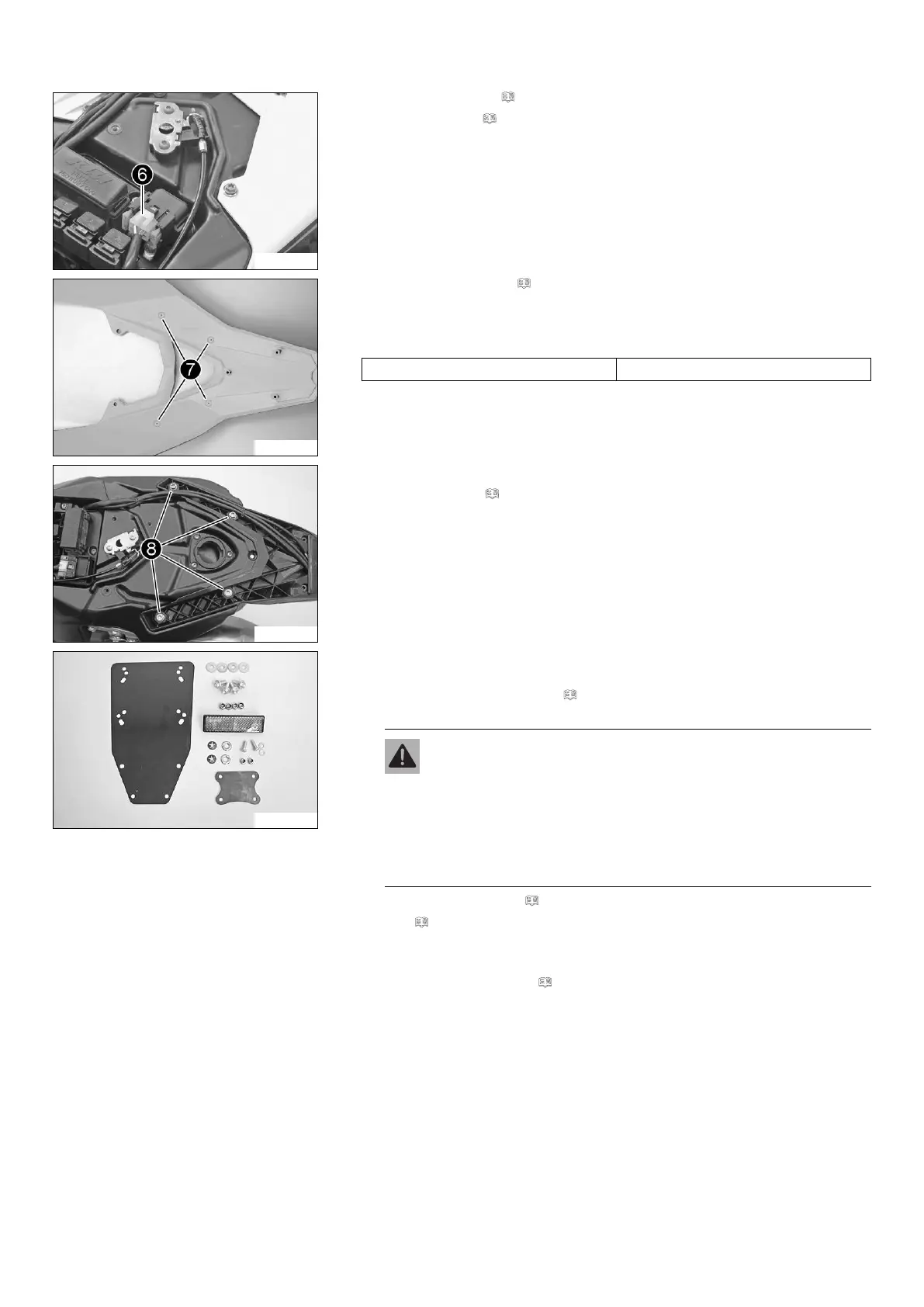

2 SETUP 5
S00801-10
– Recharge the battery. ( p. 7)
– Install the battery. ( p. 8)
–
Plug in connector
6
on the starter relay.
S00802-10
– Remove the rear fairing. ( p. 10)
–
Four markings
7
are found on the underside of the rear fairing. At these location,
drill holes to the specified diameter in three stages.
Guideline
Hole diameter for grab handles 14.5 mm (0.571 in)
S00803-10
–
Remove screws
8
.
– Fit the rear fairing. ( p. 10)
201901-10
– Mount the reflector.
Operation as a 2-seater
– Mount rear footrest bracket. ( p. 11)
Operation as a 1-seater (only if requested by customer)
Warning
Forfeiture of homologation and insurance cover The vehicle is
homologated as 2-seater. If the heel protector is fitted instead of the
footrest bracket, the vehicle no longer conforms to the homologation and
must not be operated in this form without alterations to the registration
papers.
– Set up and operate the vehicle as a 2-seater or have changes made
to the registration papers.
– Mount heel protector. ( p. 11)
– Refuel. ( p. 11)
– Prepare the vehicle according to the specifications in the KTM Dealer.net for han-
dover to the customer.
– Set the kilometers or miles. ( p. 13)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
