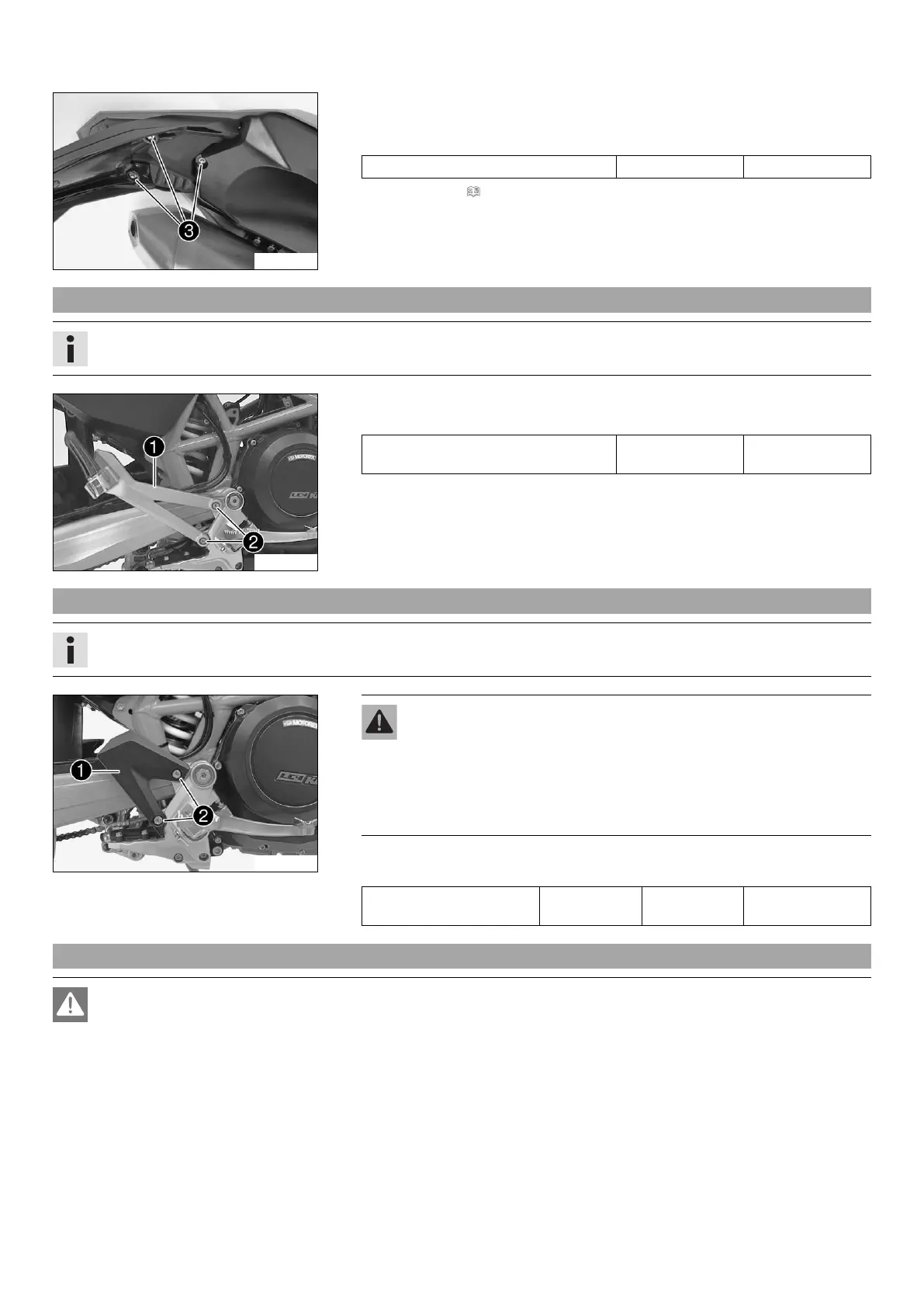

3 WORK 11
S01536-10
Mount and tighten screws
3
.
Tighten the screws of the grab handles.
Guideline
Screw, grab handle M8 10 Nm (7.4 lbf ft)
Mount the seat. ( p. 6)
3.10 Mounting rear footrest bracket
Info
The operations are the same for the left and right sides.
S00784-10
Position the footrest bracket
1
. Mount and tighten screws
2
.
Guideline
Screw, rear footrest bracket M8x16 25 Nm
(18.4 lbf ft)
3.11 Mounting heel protector
Info
The operations are the same for the left and right sides.
S00808-10
Warning
Forfeiture of homologation and insurance coverThe vehicle is homologated
as 2-seater. If the heel protector is fitted instead of the footrest bracket, the
vehicle no longer conforms to the homologation and must not be operated in
this form without alterations to the registration papers.
Set up and operate the vehicle as a 2-seater or have changes made to
the registration papers.
Position the heel protector
1
. Mount and tighten screws
2
.
Guideline
Screw, heel protector M8x12 5 Nm
(3.7 lbf ft)
Loctite
®
243™
3.12 Refueling
Danger
Fire hazardFuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
Switch off the engine for refueling.
Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
If any fuel is spilled, wipe it off immediately.
Observe the specifications for refueling.

Other manuals for KTM 690 SMC R

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KTM 690 SMC R and is the answer not in the manual?

KTM 690 SMC R Specifications

General IconGeneral
Engine TypeSingle-cylinder, 4-stroke
Bore x Stroke105 mm x 80 mm
Compression Ratio12.7:1
StarterElectric starter
Transmission6-speed
Fuel SystemElectronic Fuel Injection
Cooling SystemLiquid cooled
FrameChromium-Molybdenum steel trellis frame, powder coated
Front Wheel3.50 x 17"
Rear Wheel5.00 x 17"
Front Tire120/70 ZR 17
Rear Tire160/60 ZR 17
Seat Height890 mm
Power55 kW (74 hp)
Torque73.5 Nm
Front SuspensionWP APEX 48
Rear SuspensionWP APEX with Pro-Lever linkage
Front BrakeSingle 320 mm disc, 4-piston caliper
Rear BrakeSingle 240 mm disc, 1-piston caliper
ABSBosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity13.5 liters
Dry Weight147 kg
