KTM 690 SMC R Setup Instructions

3 WORK 6

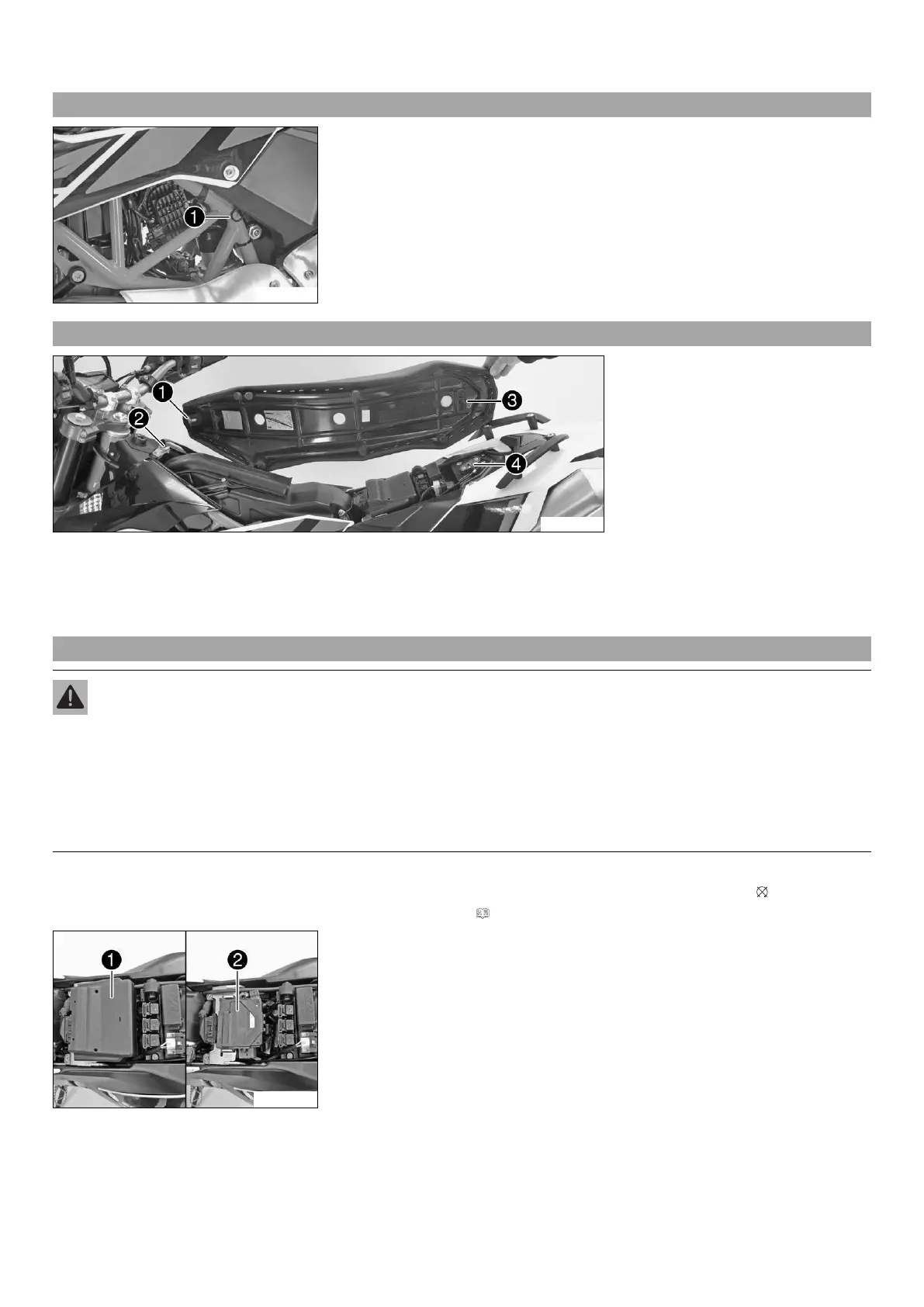

3.1 Removing the seat
101977-10
–
Pull on strap
1
and raise the rear of the seat at the same time.
– Pull back the seat and lift it off.
3.2 Mounting the seat
101988-10
–
Hook slot
1
of the seat onto screw
2
, press the rear downward and at the same time push it forward.
–
Push locking pin
3
into lock housing
4
and push the back of the seat down until the locking pin locks in place with an audible
click.
– Check, finally, that the seat is correctly mounted.
3.3 Removing the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Preparatory work
– Switch off the ignition by turning the ignition key to position OFF .
– Remove the seat. ( p. 6)
B01974-10
Main work
–
Remove battery cover
1
.
–
Pull engine electronics control unit
2
off of the holder and set it to one side.

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
