KTM 690 SMC R Setup Instructions

3 WORK 10

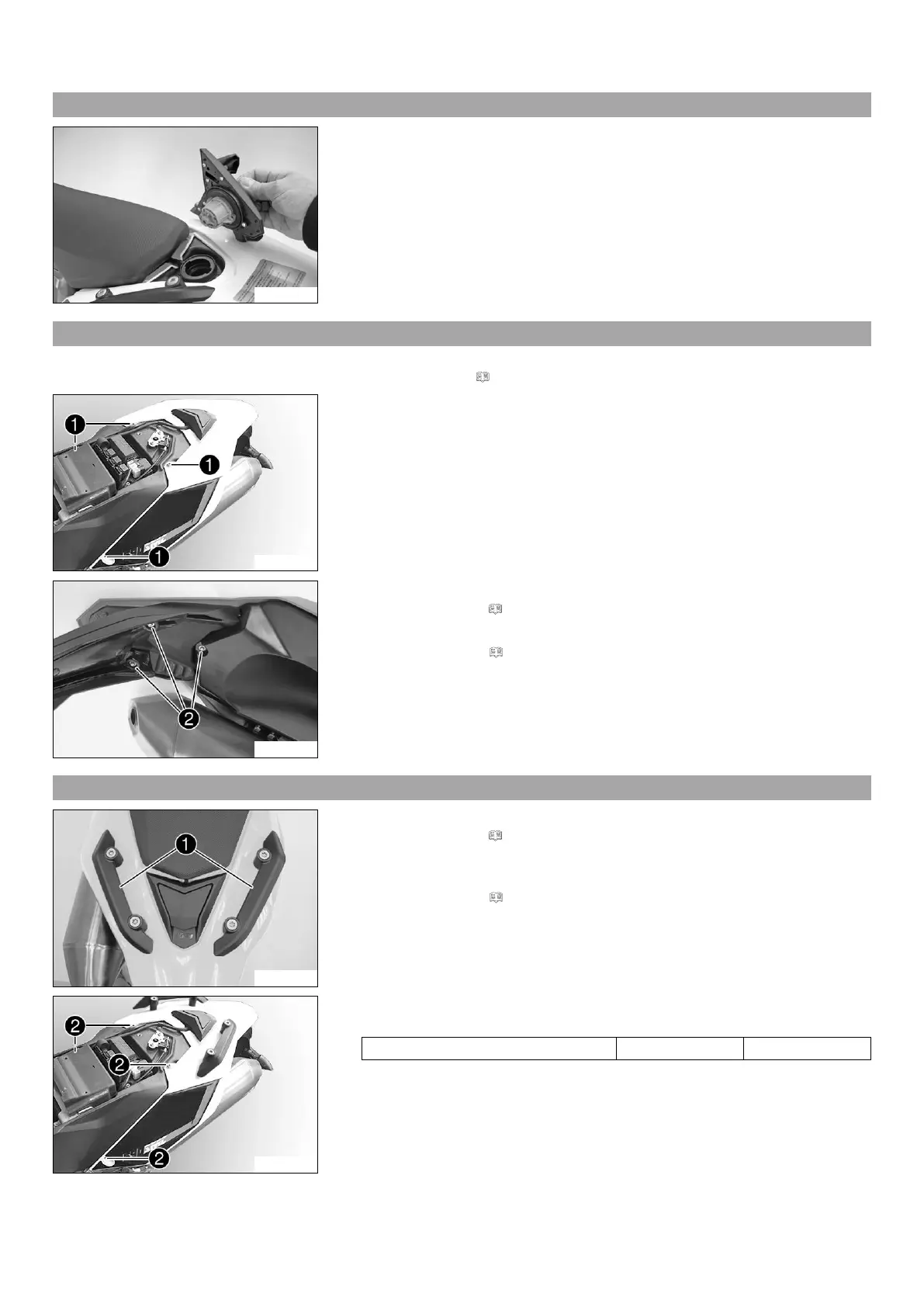

3.7 Closing filler cap
101976-01
– Put the filler cap back on and turn the ignition key 90° clockwise.
– Remove the ignition key and fold down the cover.
3.8 Removing rear fairing
Preparatory work
– Remove the seat. ( p. 6)
S00811-10
Main work
–
Remove screws
1
.
100314-10
–
Remove screws
2
.
– Open the filler cap. ( p. 9)
– Take off the rear fairing.
– Close the filler cap. ( p. 10)
3.9 Fitting the rear fairing
S00806-10
– Position the license plate holder and cable harness.
– Open the filler cap. ( p. 9)
–
Position the rear fairing and grab handles
1
as shown in the figure. Fit and
slightly tighten the screws of the grab handles.
– Close the filler cap. ( p. 10)
S00811-11
–
Mount and tighten the rear fairing fixing screws
2
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

KTM 690 SMC R Specifications

General

Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Brake	Single 320 mm disc, 4-piston caliper
Rear Brake	Single 240 mm disc, 1-piston caliper
ABS	Bosch 9.1 MP (lean angle sensitive)
Fuel Tank Capacity	13.5 liters
Dry Weight	147 kg
