MAINTENANCE WORK ON CHASSIS AND ENGINE 143
100282-10

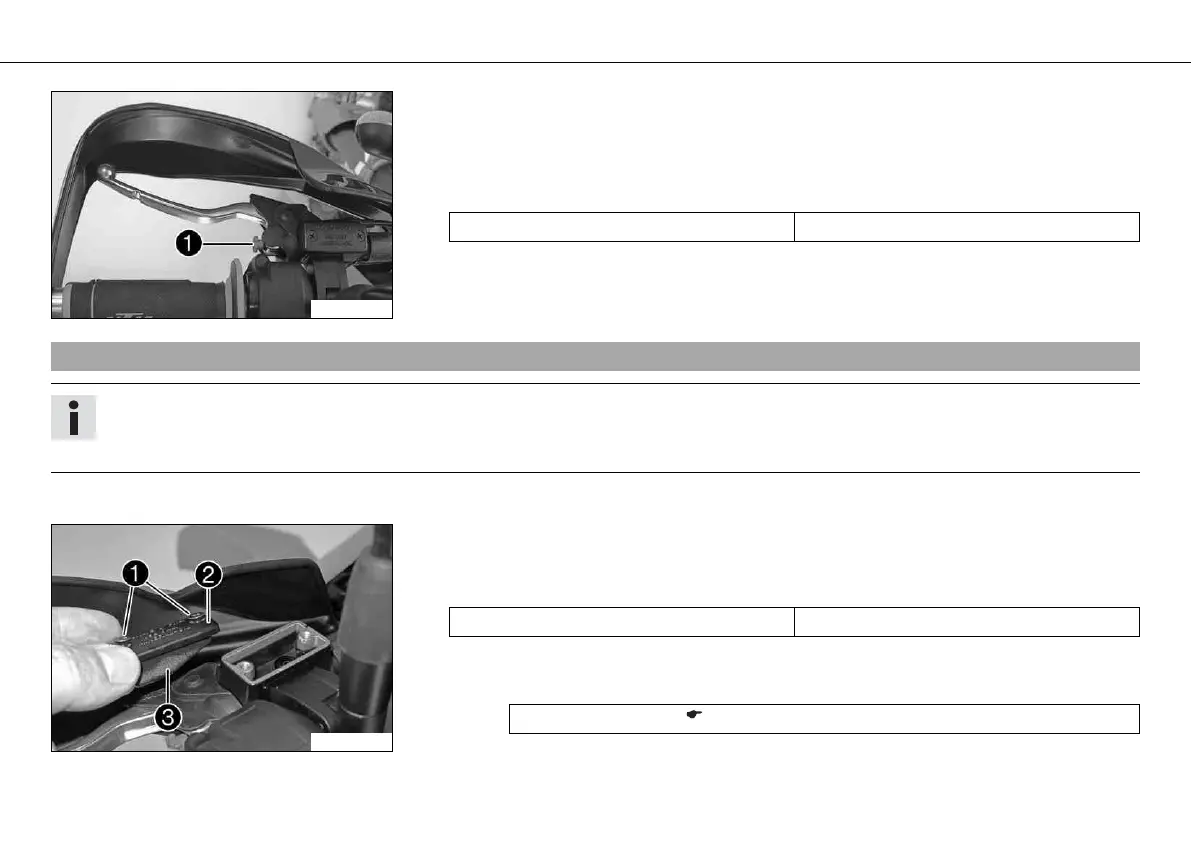

– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw .
– When adjusting the clutch lever make sure that there is a minimum clearance to other
parts of the vehicle.
Guideline
Minimum clearance 5 mm (0.2 in)
9.77Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
100281-10
– Remove screws .
– Remove cover  with membrane .
– Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the level of the coolant does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 183)
– Position the cover with the membrane. Mount and tighten the screws.

KTM 690 SMC USA 2010 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	654 cc
Bore x Stroke	102 mm x 80 mm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Rear Suspension	WP monoshock
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Starter	Electric
ABS	Optional
Seat Height	890 mm
Fuel Capacity	12 liters
Engine	Single cylinder, 4-stroke
Ignition	Digital
Front Suspension	WP 48 mm USD forks
Front Brake	Single disc, 320 mm
Rear Brake	Single disc, 240 mm
Frame	Steel trellis frame
Power	46 kW (63 hp) at 7500 rpm
