KTM 890 ADVENTURE R 2023 Setup Instructions

2 SETUP
6
Guideline
Screw for throttle
grip
M5 3.5 Nm
(2.58 lbf ft)
Screw, combination
switch, right
M5 5 Nm (3.7 lbf ft)
Info
Pay attention to the markings on the handlebar.
Make sure the cables and wiring are positioned cor-
rectly.
– Tie the cables and wires together with the rubber straps sup-
plied.
– Check the throttle grip for smooth operation.
F02132-10

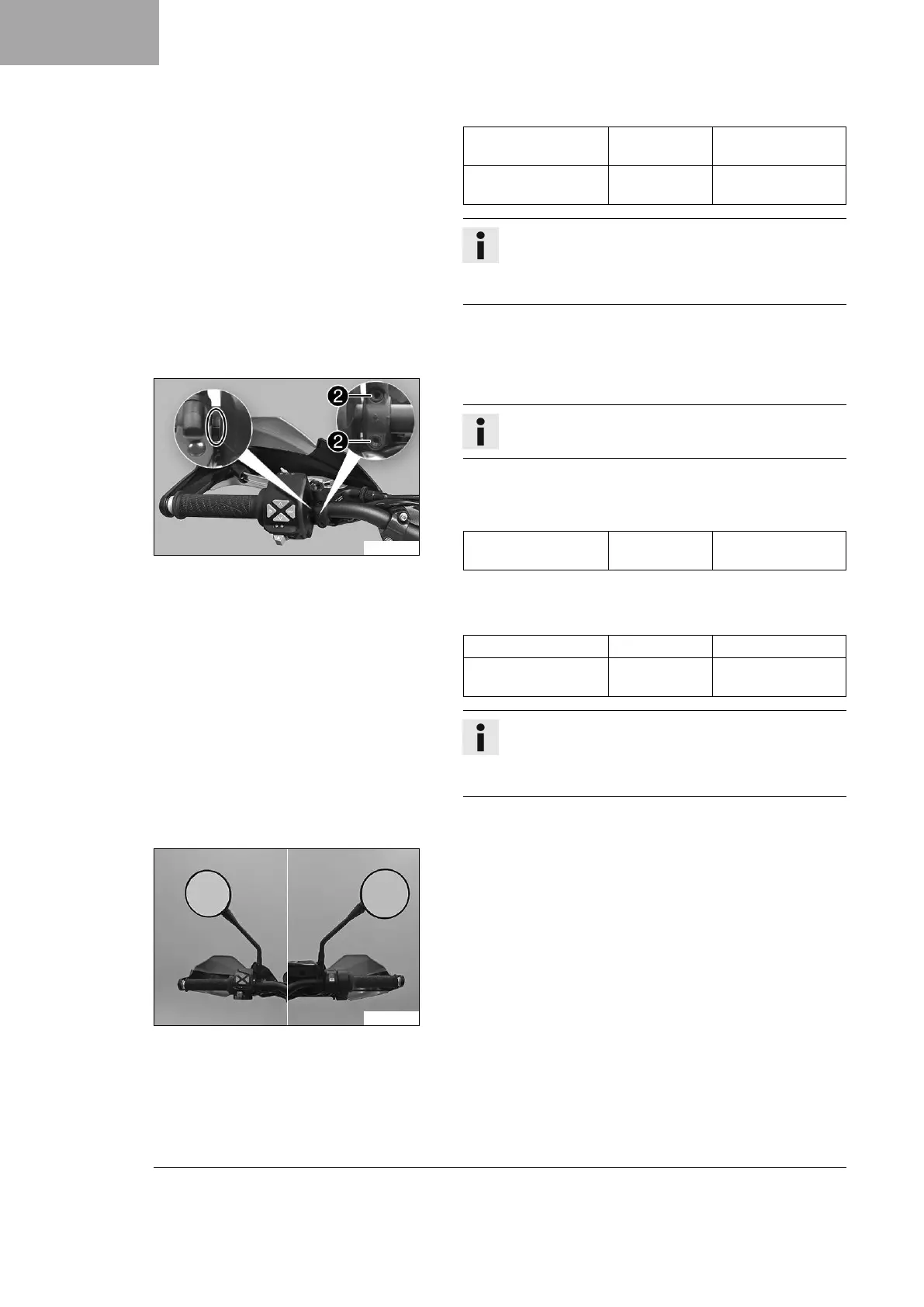

– Position the clutch assembly on the handlebar.
Info
Pay attention to the markings on the handlebar.
– Position the clutch assembly clamp on the handlebar.
–
Mount and tighten screws
2
.
Guideline
Screw, clutch assem-
bly
M6 5 Nm (3.7 lbf ft)
– Tighten all the screws on the controls on the left half of the
handlebar.
Guideline
Screw, fixed grip, left M4 3 Nm (2.2 lbf ft)
Screw, combination
switch, left
M5 2 Nm (1.5 lbf ft)
Info
Pay attention to the markings on the handlebar.
Make sure the cables and wiring are positioned cor-
rectly.
– Tie the cables and wires together with the rubber straps sup-
plied.
F02150-01
– Mount and tighten the rear mirror on both sides.

KTM 890 ADVENTURE R 2023 Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cc
Transmission	6-speed
Front Suspension	WP XPLOR-USD, Ø 48 mm
Bore x Stroke	90.7 mm x 68.8 mm
Compression Ratio	13.5:1
Fuel System	Electronic Fuel Injection
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	150/70-18
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Power	105 hp (77 kW) @ 8, 000 rpm
Torque	100 Nm
Fuel Tank Capacity	20 liters
Seat Height	880 mm (34.6 in)
Dry Weight	196 kg (432 lb)
Rear Suspension	WP XPLOR PDS shock absorber
Front Brake	2x radially mounted 4-piston calipers
Rear Brake	2-piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode)
Wheels Front	21"
Wheels Rear	18"
Chain	520
Steering Head Angle	63.5°
Ground Clearance	263 mm
