SERVICE WORK ON THE CHASSIS 98

B00672-10

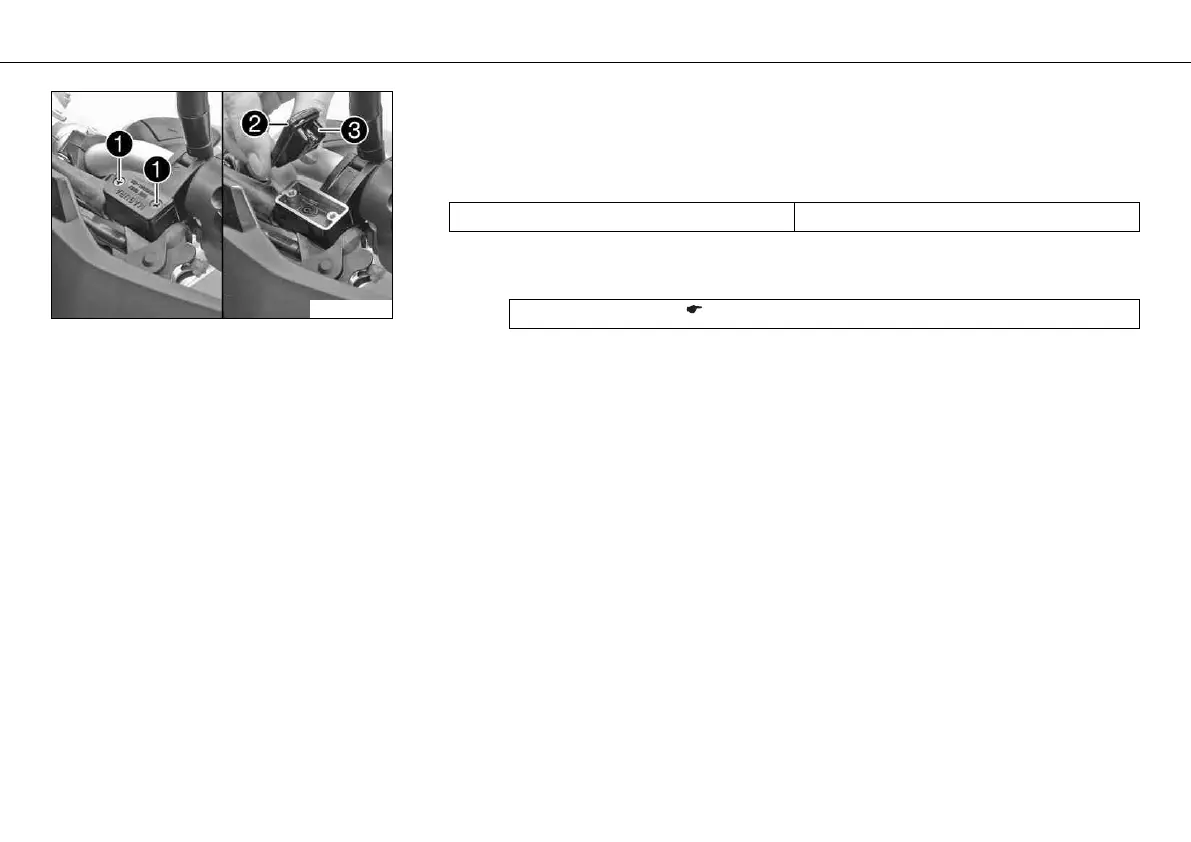

– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.

– Remove screws .

– Remove cover  with membrane .

– Check the fluid level.

Fluid level below top edge of container 4 mm (0.16 in)

» If the coolant level does not meet specifications:

– Correct the fluid level of the hydraulic clutch.

Hydraulic fluid (15) ( p. 207)

– Position the cover with the membrane. Mount and tighten the screws.
