WHEELS, TIRES 115
B00626-11

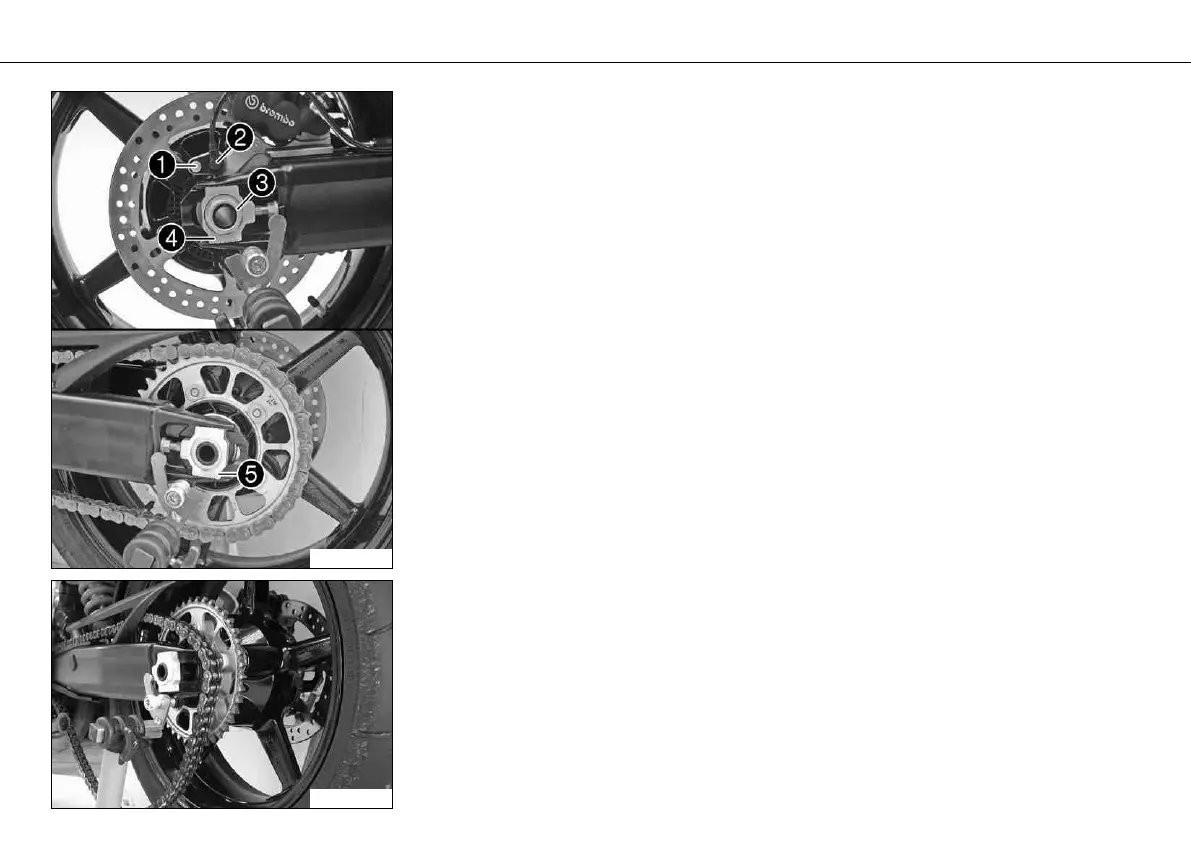

– Remove screw and pull wheel speed sensor out of the hole.
– Remove nut . Remove chain adjuster .
– Pull out wheel spindle to the point where the chain adjuster is no longer in contact
with the adjusting screw.
B00135-01
– Push the rear wheel forward as far as possible and take the chain off the rear sprocket.
– Withdraw the wheel spindle.
– Pull the rear wheel backward until the brake caliper support hangs free between the
brake disc and the wheel rim.
