WHEELS, TIRES 117

B00635-10

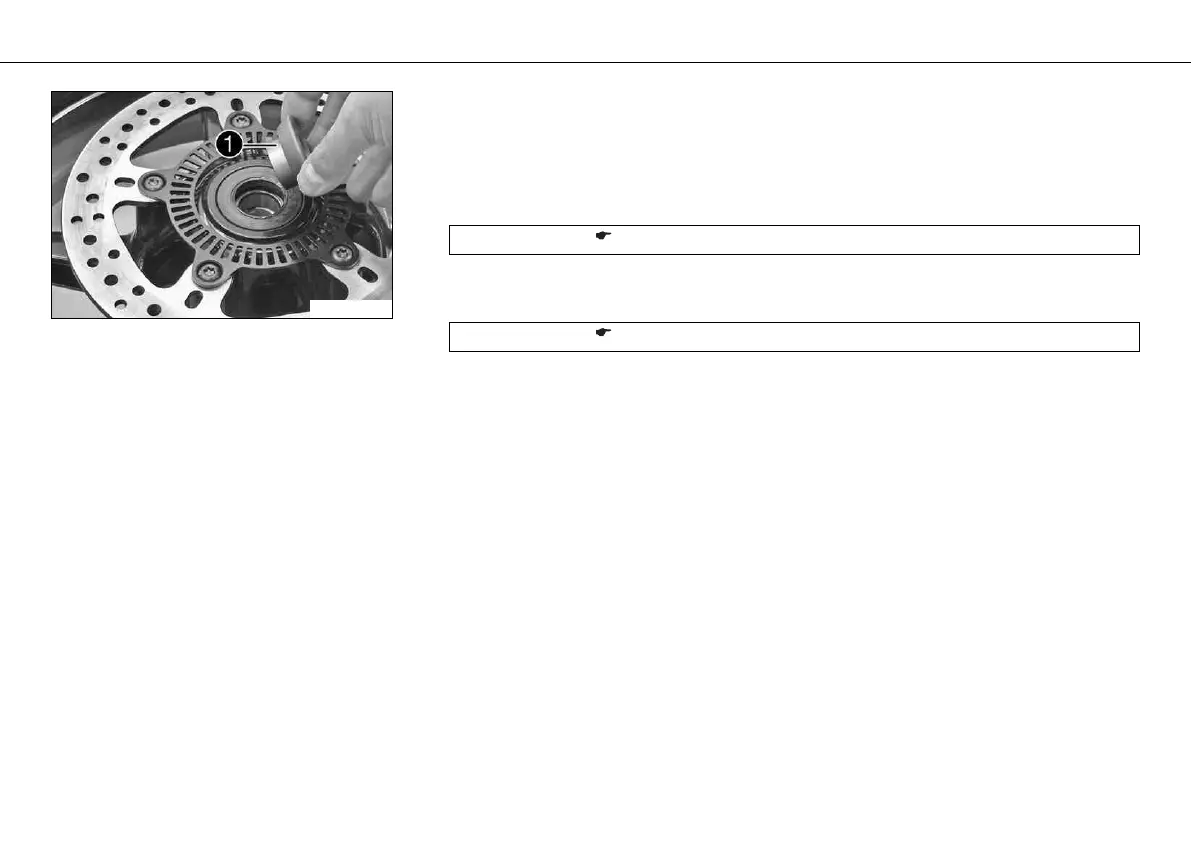

– Check the wheel bearing for damage and wear.

» If the wheel bearing is broken or worn:

–

Replace the wheel bearing. x

– Remove bushing . Clean and grease the mating surfaces of the bushing and the shaft

seal ring.

Long-life grease ( p. 210)

– Install the bushing.

– Clean and grease the thread of the wheel spindle and nut.

Long-life grease ( p. 210)

– Clean the fixing locations on the brake caliper support and swingarm.
