ELECTRICAL SYSTEM 133

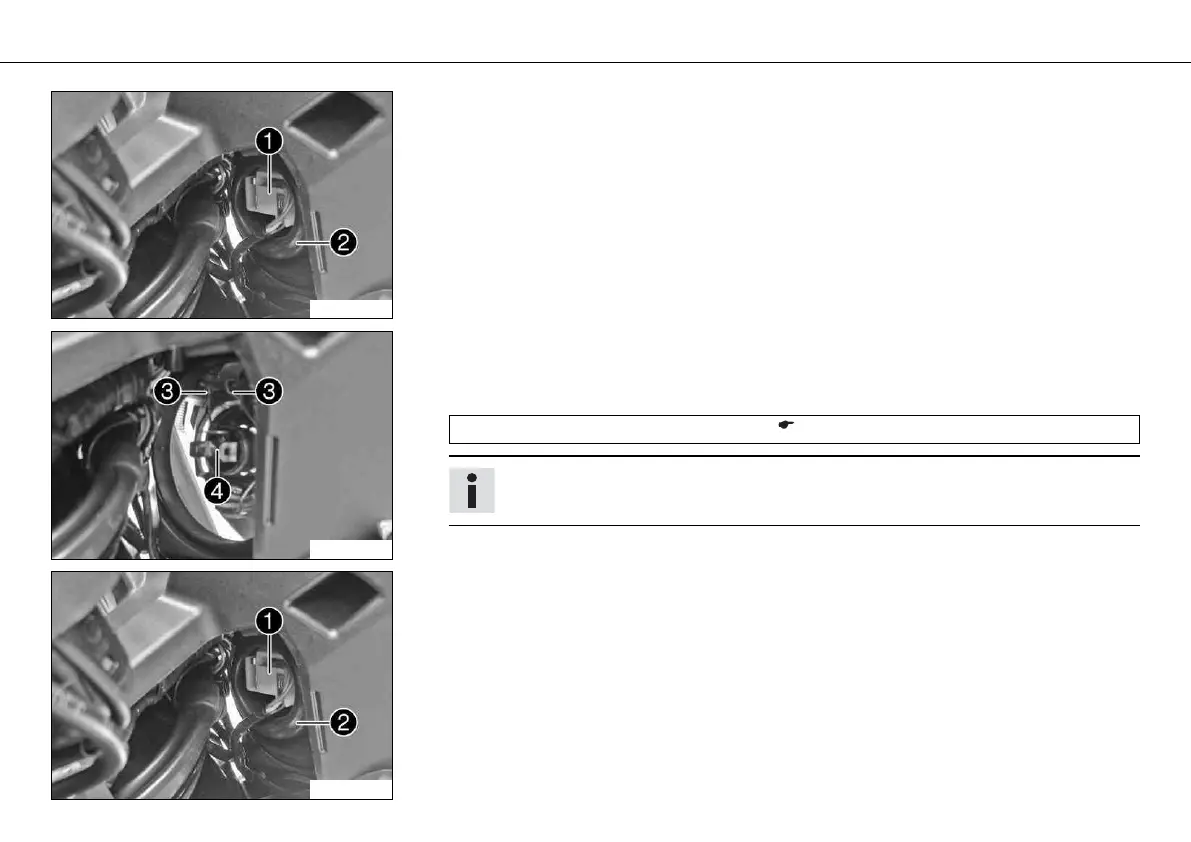

B00673-10

– Disconnect connector .

– Remove rubber cap .

B00674-10

– Detach retaining clamps .

– Remove headlight bulb .

– Position the new headlight bulb in the headlight housing.

Low beam/high beam (H4/socket P43t) ( p. 195)

Info

Insert the headlight bulb so that the bayonet lugs latch into the slots.

– Position the retaining clamps.

B00673-10

– Mount rubber cap .

– Plug in connector .
