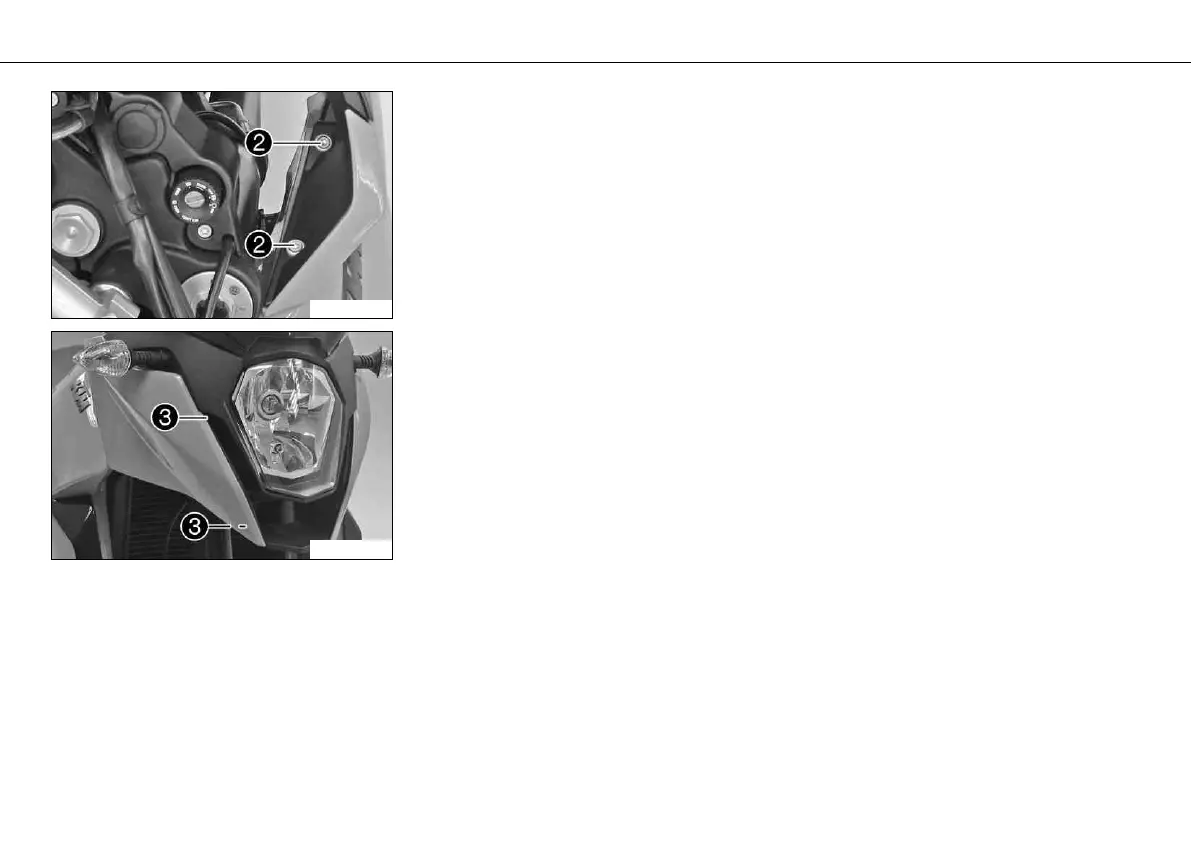

SERVICE WORK ON THE CHASSIS 89

B00625-11

– Position the mask spoiler.

– Mount and tighten screws .

B00671-11

– Mount and tighten screws .

– Repeat the operation on the opposite side.
