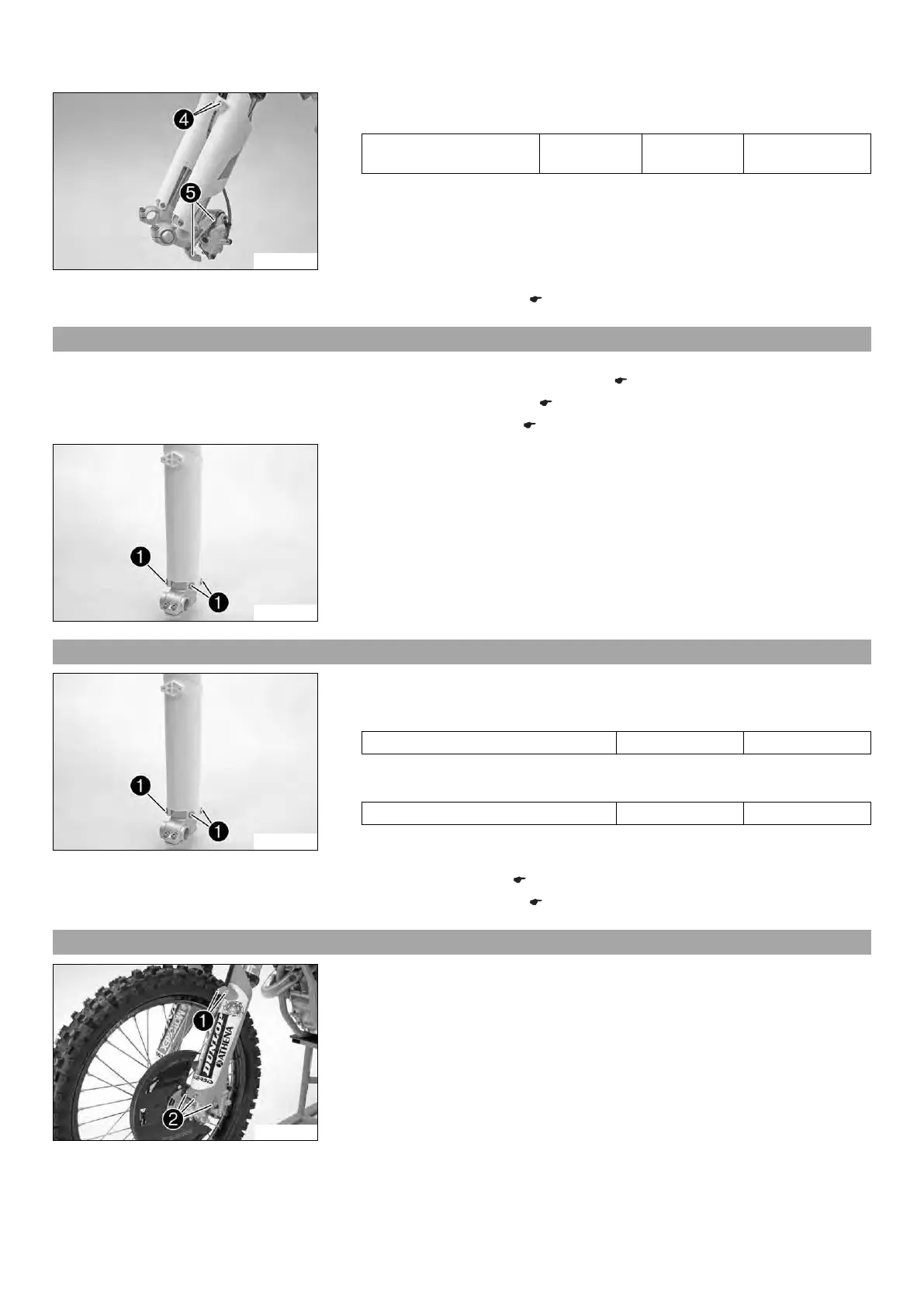

11 SERVICE WORK ON THE CHASSIS 39
B00300-11
Position the brake caliper. Mount and tighten screws
5
.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
Position the brake line and clamp. Mount and tighten screws
4
.
Finishing work
Install the front wheel. x ( p. 69)
11.9 Removing the fork protector x (SXF EU, SXF USA, XCF)
Preparatory work
Raise the motorcycle with the lift stand. ( p. 36)
Remove the front wheel. x ( p. 69)
Remove the fork legs. x ( p. 38)
B00306-10
Main work
Remove screws
1
on the left fork leg. Remove the fork protector from above.
Remove the screws on the right fork leg. Remove the fork protector from above.
11.10 Installing the fork protector x (SXF EU, SXF USA, XCF)
B00306-10
Main work
Position the fork protection on the left fork leg. Mount and tighten screws
1
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Position the fork protection on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
Install the fork legs. x ( p. 38)
Install the front wheel. x ( p. 69)
11.11 Removing the fork protector x (SXF Factory Edition)
101955-10
Remove screws
1
. Take off the clamp.
Remove screws
2
on the left fork leg. Take off the fork protector.
