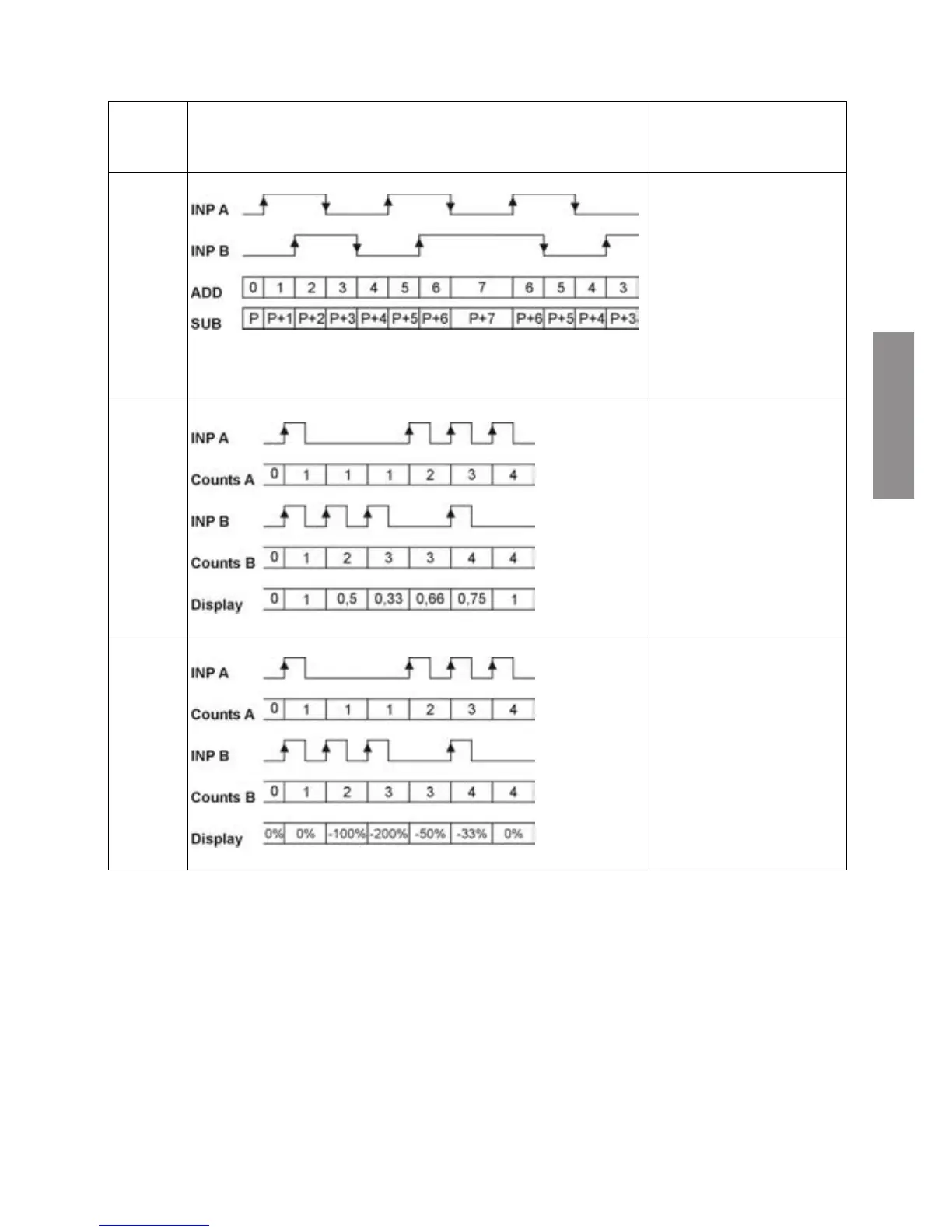

Function Diagram
Not
e: No counting when GATE input is active
PNP: Count on rising edge
NPN: Count on falling edge
QUAD4
A 90°
B
Inp A: Count input
Count on rising and on
falling edges
Inp B: Count input
Count on rising and on
falling edges, Reverse
direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
A / B
Inp
A: Count input 1
Inp B: Count input 2
Formula:
A / B
A % B
Inp
A: Count input 1
Inp B: Count input 2
Formula:
(A – B)/A x100
