16 Input modes: Timing
Func

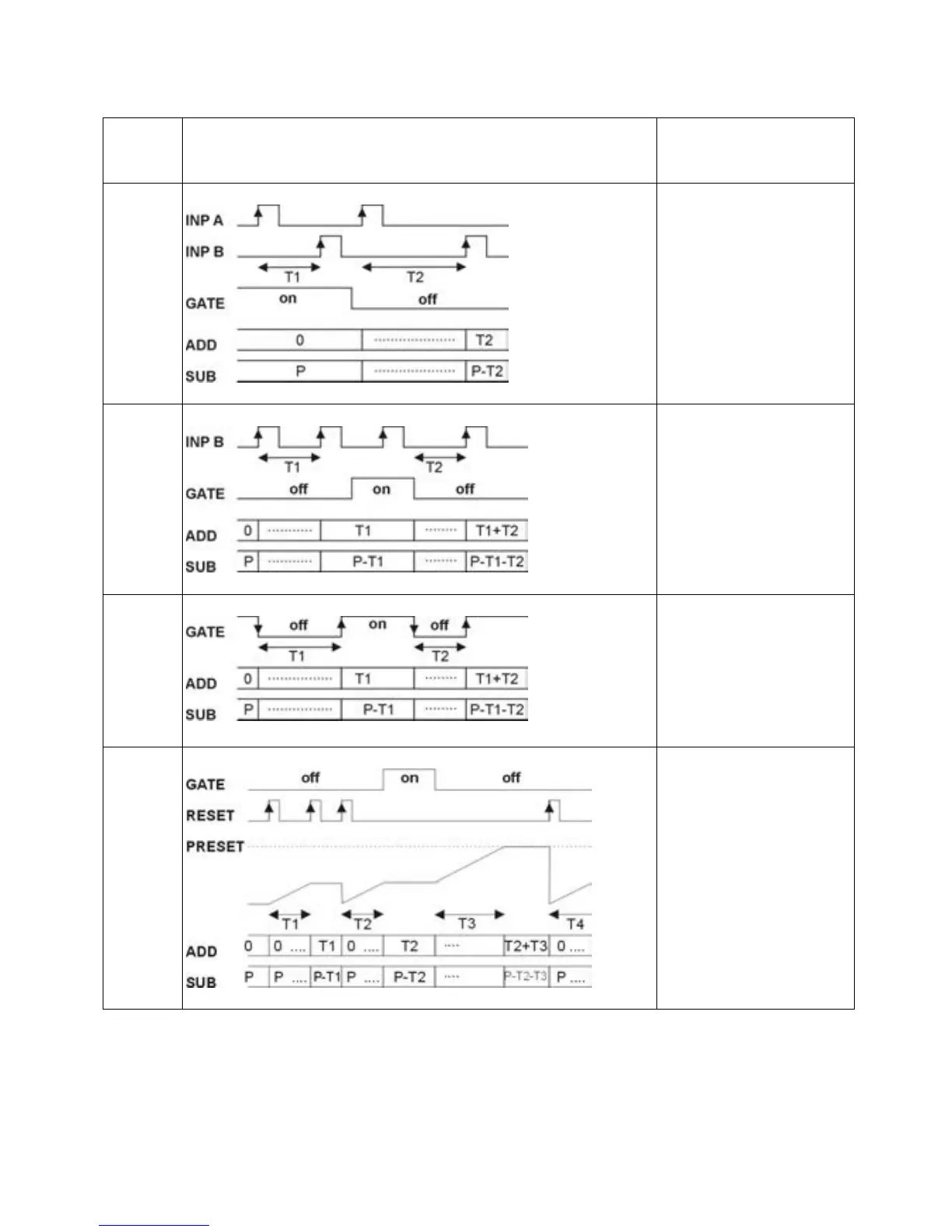

tion Diagram
PNP: Count on rising edge
NPN: Count on falling
edge
INA.INB
Inp
A: Start
Inp B: Stop
Add: Display 0 --> Preset
Sub: Display Preset -> 0
INB.INB
Inp
A: no function
Inp B: Start/Stop
Add: Display 0 --> Preset
Sub: Display Preset -> 0
FREE.RN
Inp A: no function
Inp B: no function
Control of the timing only
via the GATE input
Add: Display 0 --> Preset
Sub: Display Preset -> 0
AUTO
Inp
A: no function
Inp B: no function
Control of the timing via
RESET (manual or
electrical)
Add: Display 0 --> Preset
Sub: Display Preset -> 0
