Kubler CODIX 560 - Input Modes: Pulse Counting

15 Input modes: Pulse counting
Fun

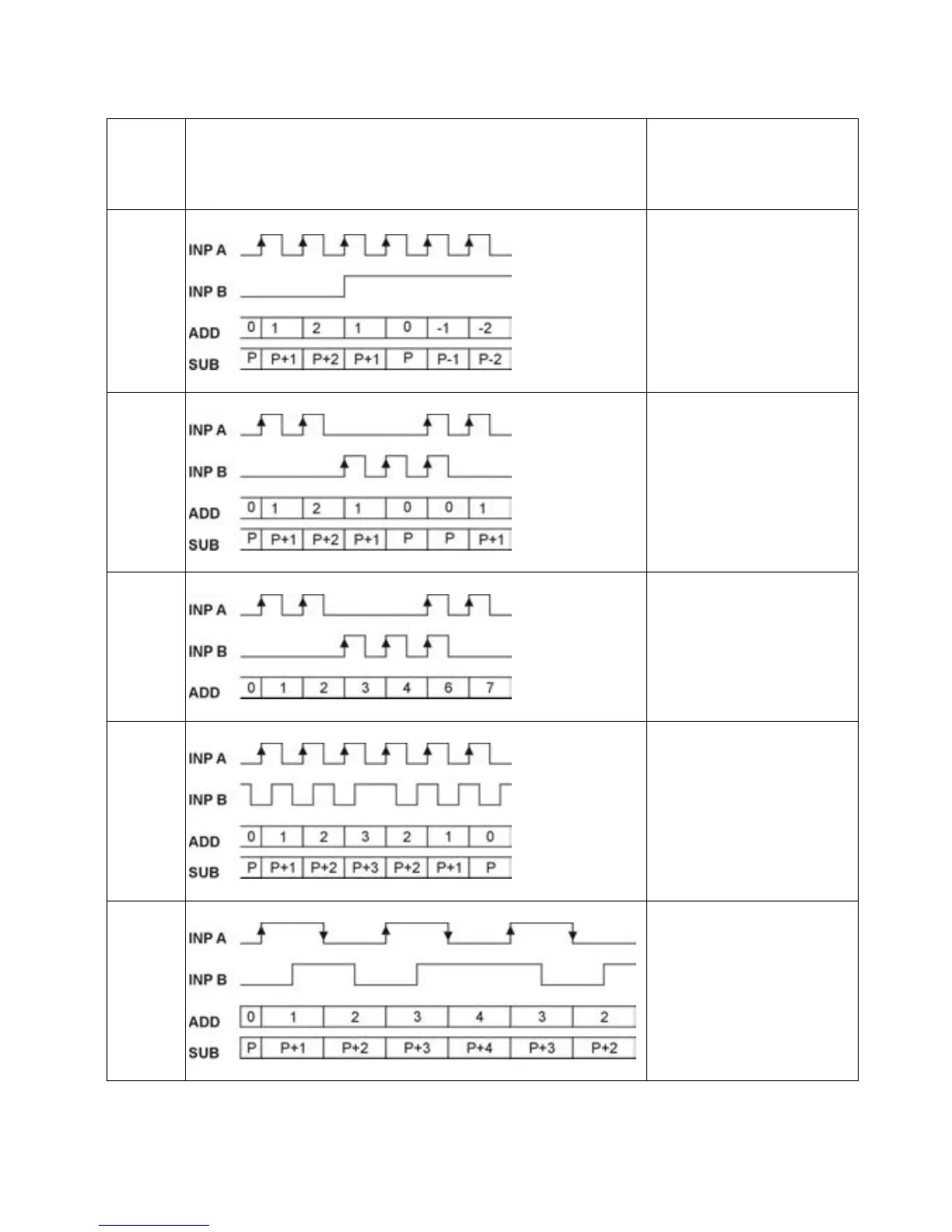

ction Diagram
Note: No counting when GATE input is active
P = Preset
PNP: Count on rising edge
NPN: Count on falling edge
CNT.DIR
Inp
A: Count input
Inp B: Count direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
UP.DN
Inp
A: Count input add
Inp B: Count input sub
Add: Display 0 --> Preset
Sub: Display Preset -> 0
UP.UP
Inp A: Count input 1 add
Inp B: Count input 2 add
Add: Display 0 --> Preset
QUAD
A 90° B
Inp
A: Count input
Count on one edge
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
QUAD2
A 90° B
Inp
A: Count input
Count on rising and on falling
edges
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
