Kubler CODIX 560 - Input Modes: Frequency Meter

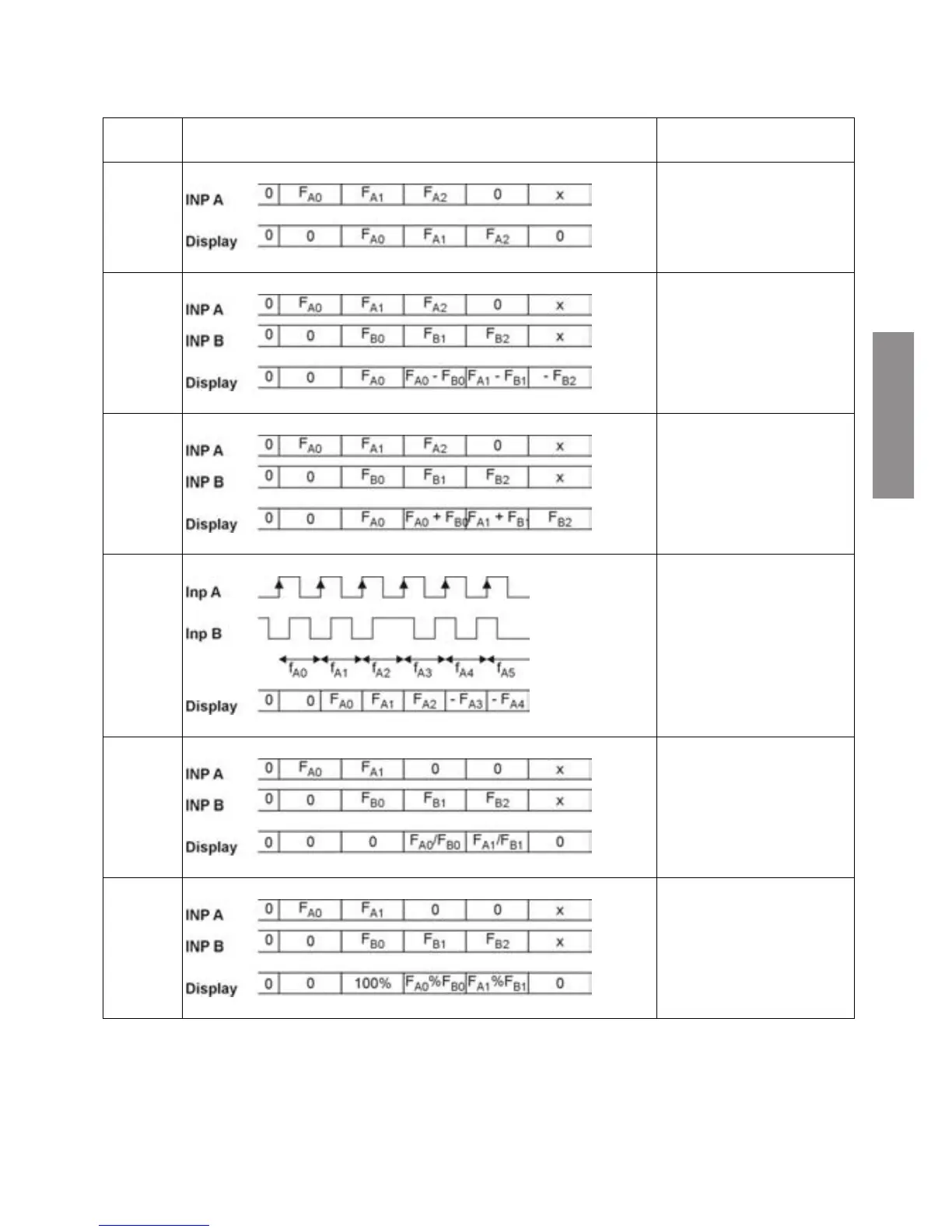

17 Input modes: Frequency meter
Func
tion Diagram
PNP: Count on rising edge
NPN: Count on falling edge
A
Inp A
: Frequency input
Inp B: no function
A - B
Inp
A: Frequency input 1
Inp B: Frequency input 2
Formula:
A - B
A + B
Inp
A: Frequency input 1
Inp B: Frequency input 2
Formula:
A + B
QUAD
A 90° B
Inp
A: Frequency input 1
Inp B: Reverse direction
A / B
Inp
A: Frequency input 1
Inp B: Frequency input 2
Formula:
A / B
A % B
Inp
A: Frequency input 1
Inp B: Frequency input 2
Formula:
(A – B)/A x100
english
