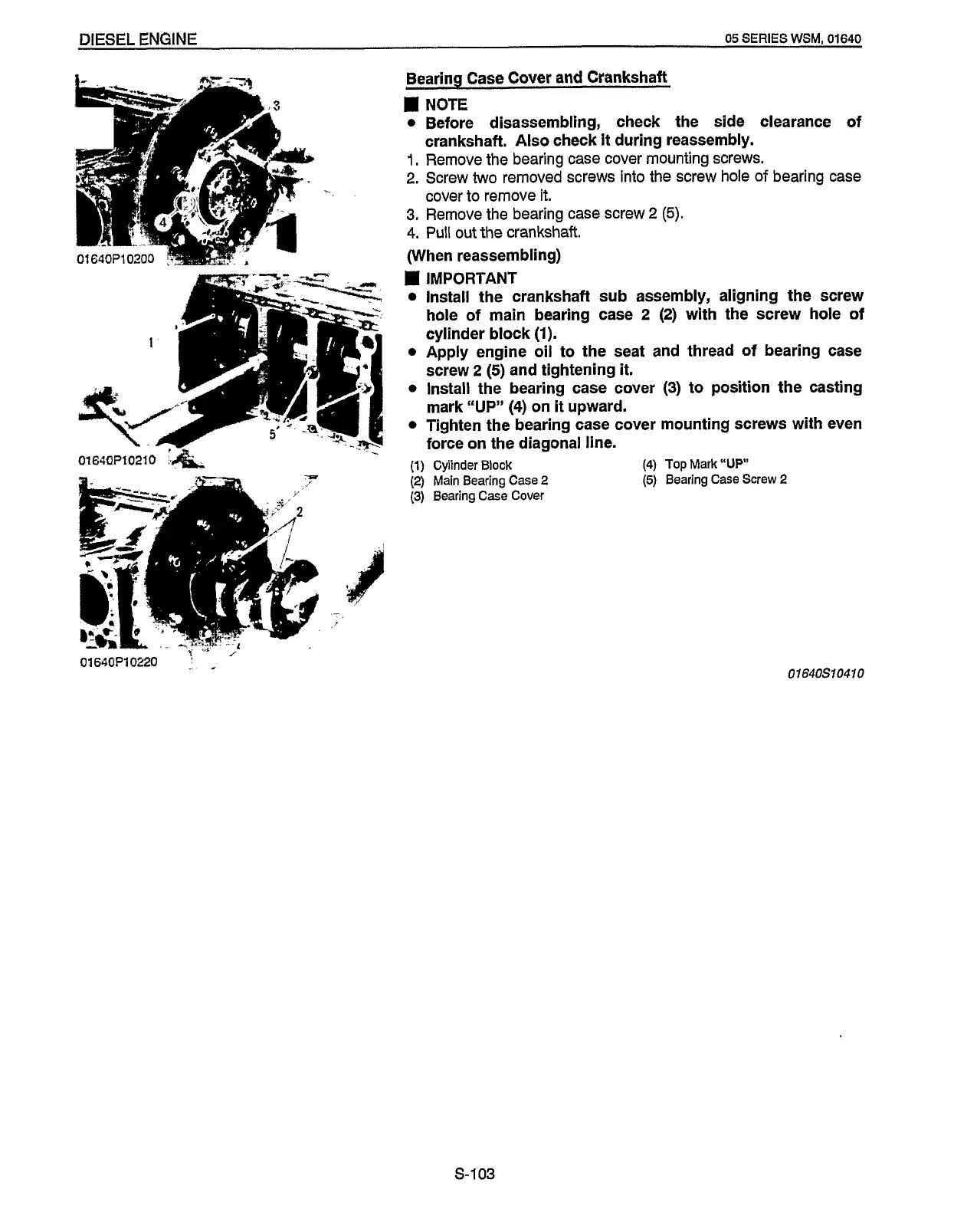

DIESEL ENGINE 05 SERIES WSM, 01640
.-
Bearing Case Cover and Crankshaft
I NOTE
0 Before disassembling, check the side clearance of
crankshaft,
Also check it during reassembly.
1. Remove the bearing case cover mounting screws.
2. Screw two removed screws into the screw hole of bearing case
cover to remove it.
3. Remove the bearing case screw 2 (5).
4. Pull out the crankshaft.
(When reassembling)
IMPORTANT
Install the crankshaft sub assembly, aligning the screw
hole of main bearing case
2 (2) with the screw hole of
cylinder block (1).
0 Apply engine oil to the seat and thread of bearing case
screw
2 (5) and tightening it.
0 Install the bearing case cover (3) to position the casting
mark “UP”
(4) on it upward.
0 Tighten the bearing case cover mounting screws with even
force on the diagonal
line.
(1) Cylinder Block
(2) Main Bearing Case 2
(3) Bearing Case Cover
(4) Top Mark “UP”
(5) Bearing Case Screw 2
