DIESEL
ENGINE
OS
SERIES
WSM,
01640
SERVICING
[I]
CYLINDER
HEAD
)OOOOF10010
[00000F10020
I

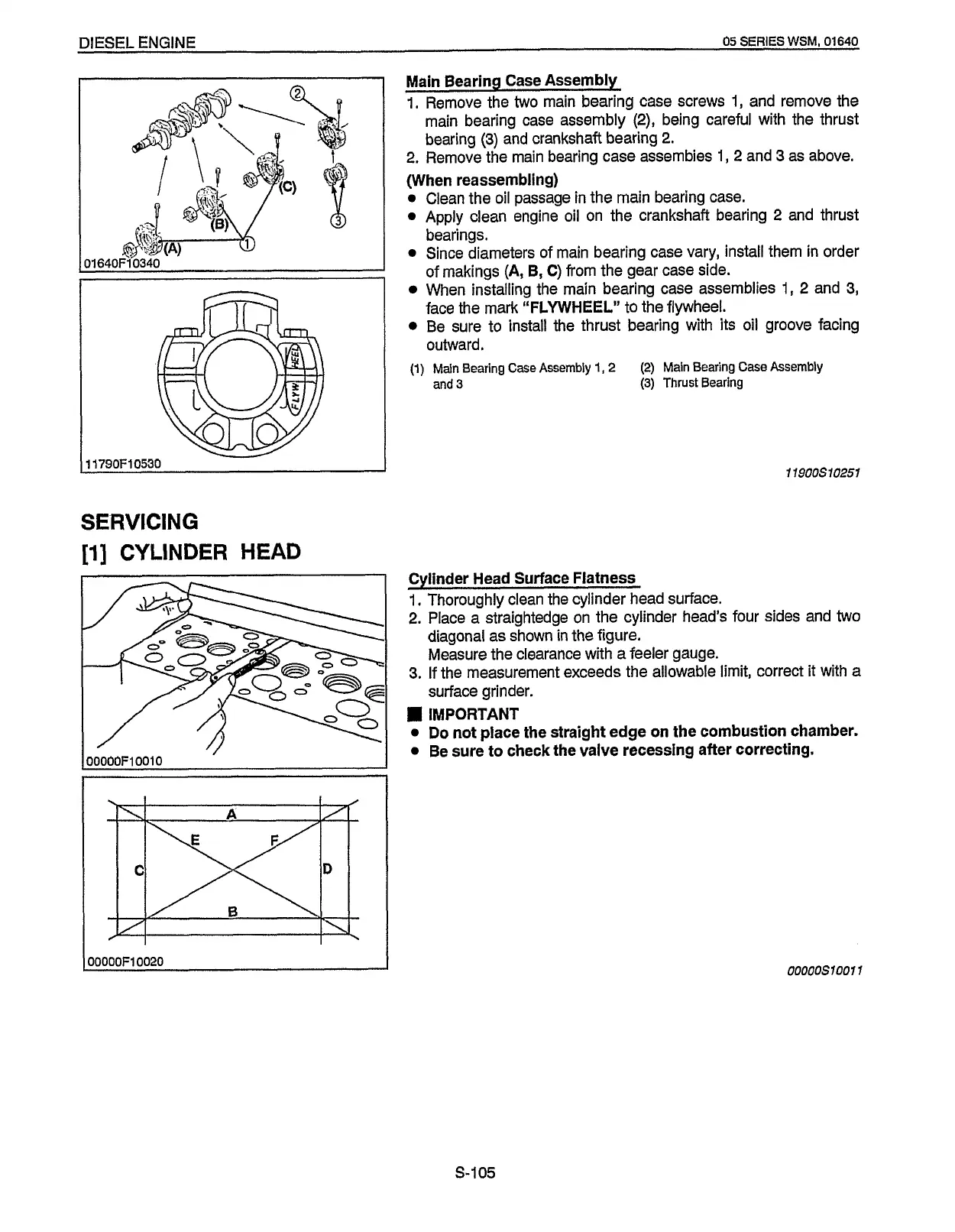

Main Bearing Case
Assembly
1.
Remove the
two
main bearing case screws
1,
and remove the
main bearing case assembly
(2),
being careful with the thrust
bearing
(3)
and crankshaft bearing
2.
2.
Remove the main bearing case assembies
1
,
2
and
3
as above.
(When reassembling)
0
Clean the oil passage in the main bearing case.
0
Apply clean engine oil on the crankshaft bearing
2
and thrust
0
Since diameters of main bearing case vary, install them in order
When installing the main bearing case assemblies
1,
2 and
3,
Be sure to install the thrust bearing with its
oil
groove facing
bearings.
of makings
(A,
B, C) from the gear case side.
face the mark
“FLYWHEEL”
to the flywheel.
outward.
(1)
Main
Bearing Case Assembly
1,
2
(2)
Main
Bearing Case Assembly
and
3 (3)
Thrust Bearing
11900S10251
Cylinder Head Surface Flatness
1.
Thoroughly clean the cylinder head surface.
2. Place
a
straightedge on the cylinder head’s four sides and
two
diagonal as shown in the figure.
Measure the clearance with
a
feeler gauge.
3.
If the measurement exceeds the allowable limit, correct it with
a
surface grinder.
I
IMPORTANT
0
Do
not place the straight edge on the combustion chamber.
0
Be sure
to
check the valve recessing after correcting.
oooooslooll
S-105
