DIESEL
ENGINE
05
SERIES
WSM,
01640
,JOOOOF10250
-

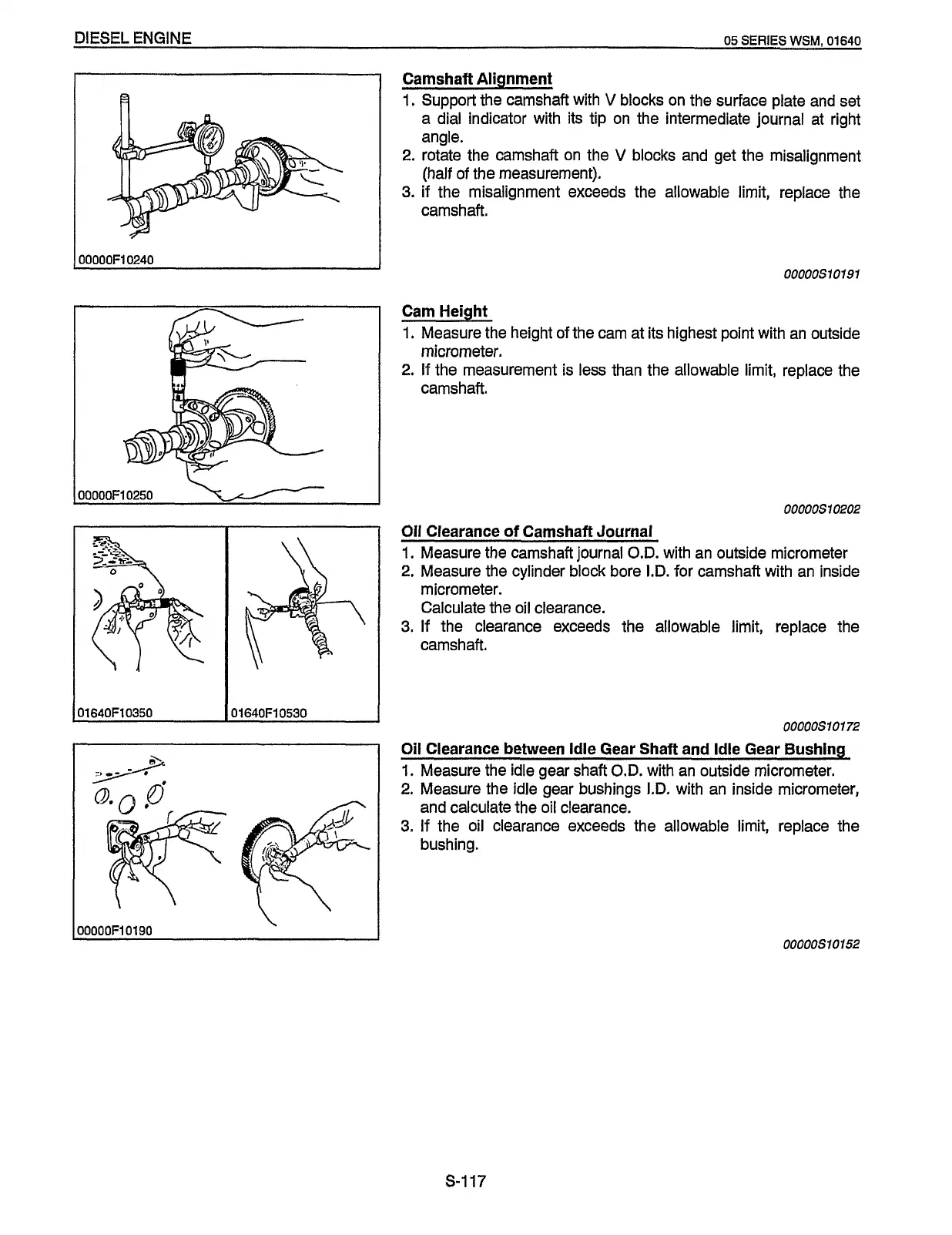

Camshaft Alignment
1.
Support the camshaft with
V
blocks on the surface plate and set
a
dial indicator with its tip on the intermediate journal at right
angle.
2.
rotate the camshaft on the
V
blocks and get the misalignment
(half
of
the measurement).
3.
if the misalignment exceeds the allowable limit, replace the
camshaft.
DO
-
OF1
0240
00000s10191
01640F10350
11
64OF10530
~OOOOOF10190
I
Cam Height
1.
Measure the height
of
the cam at its highest point with an outside
2.
If
the measurement is less than the allowable limit, replace the
micrometer.
camshaft.
00000s10202
Oil
Clearance
of
Camshaft Journal
1.
Measure the camshaft journal
O.D.
with an outside micrometer
2. Measure the cylinder block bore
I.D.
for camshaft with an inside
3.
If the clearance exceeds the allowable limit, replace the
micrometer.
Calculate the oil clearance.
camshaft.
OOOOOSlOf
72
Oil
Clearance between Idle Gear Shaft and Idle Gear Bushing
1.
Measure the idle gear shaft
O.D.
with an outside micrometer.
2.
Measure the idle gear bushings
I.D.
with an inside micrometer,
3,
If the
oil
clearance exceeds the allowable limit, replace the
and calculate the
oil
clearance.
bushing.
OOOOOS10152
S-I17
