Kubota 05 Series Repair Manual

05 SERIES J”JSk4, 01640

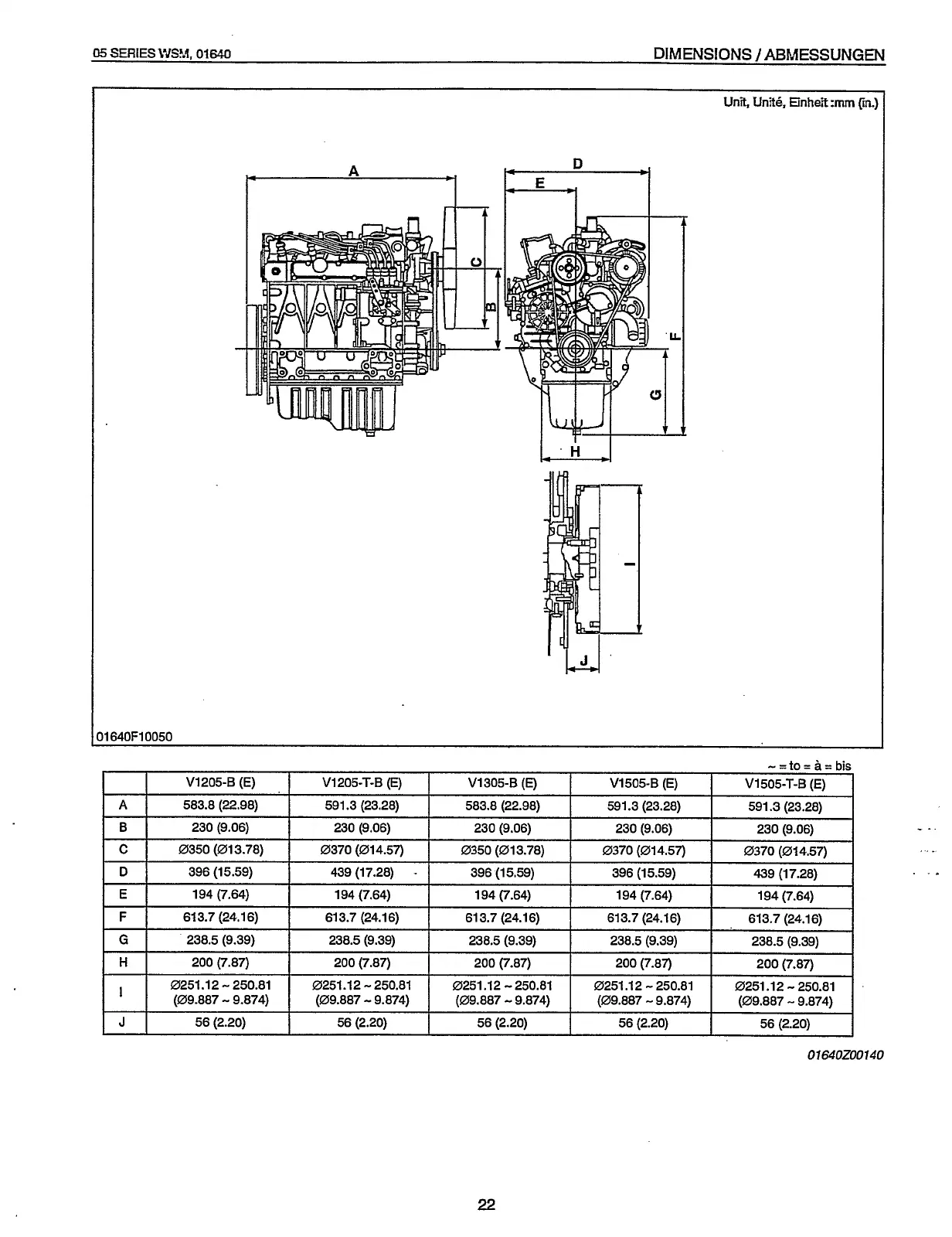

DIMENSIONS / ABhjESSUNGEN
V1205-B (E)
Unit, Unite, Einhekmm (in.]
V1205-T-B (E) V1305-8 (E) V1505-B (E) V1505-T-B (E)
11 640F10050
A
B
583.8 (22.98) 591.3 (23.28) 583.8 (22.98) 591.3 (23.28) 591.3 (2328)
230 (9.06) 230 (9.06) 230 (9.06)
230 (9.06) 230 (9.06)
C
D
E
F
G
0350 (013.78) 0370 (014.57) 0350 (013.78) 0370 (014.57) 0370 (014.57)
396 (15.59) 439 (17.28)
- 396 (15.59) 396 (15.59) 439 (17.28)
194 (7.64) 194 (7.64) 194 (7.64)
194 (7.64) 194 (7.64)
613.7 (24.16) 613.7 (24.16) 613.7 (24.16)
613.7 (24.16) 613.7 (24.16)
238.5 (9.39)
238.5 (9.39) 238.5 (9.39)
238.5 (9.39) 238.5 (9.39)
H
I
J
01640200140
200 (7.87) 200 (7.87) 200 (7.87)
200 (7.87) 200 (7.87)
0251.12
- 250.81
0251.12
- 250.81 0251.12 - 250.81
0251.12
- 250.81 0251.12 - 250.81
(09.887
- 9.874) (09.887 - 9.874) (09.887 - 9.874)
(09.887
- 9.874) (09.887 - 9.874)
56 (2.20)
56 (2.20) 56 (2.20) 56 (2.20) 56 (2.20)
22
