DIESEL ENGINE
05
SERIES
WSM,
01640
[SI

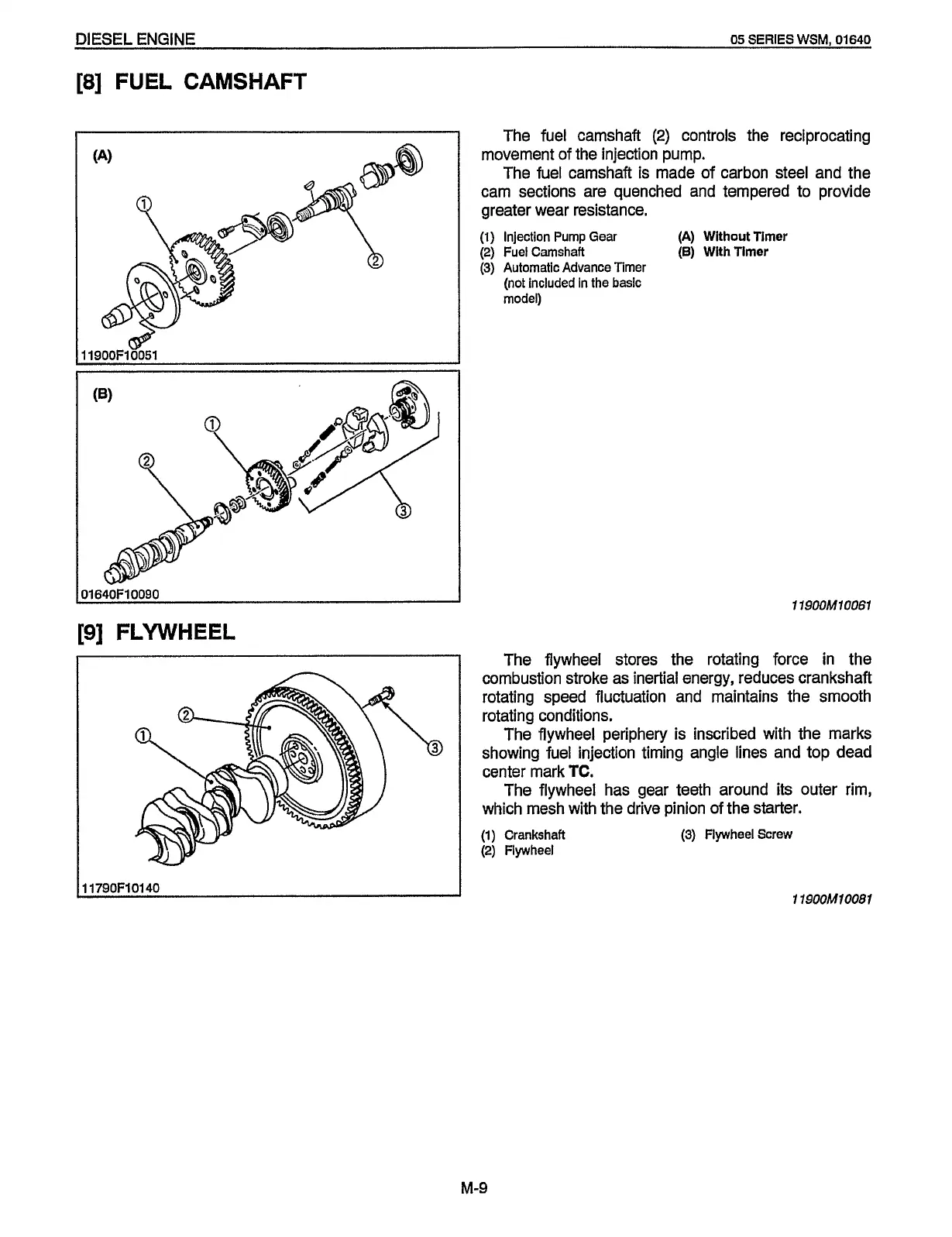

FUEL CAMSHAFT
I01640F10090
[9]
FLYWHEEL
1790F10140
The fuel camshaft (2) controls the reciprocating
movement
of
the injection pump.
The fuel camshaft is made
of
carbon steel and the
cam sections are quenched and tempered to provide
greater wear resistance.
(1)
injection Pump Gear
(A)
Without Timer
(2)
Fuel Camshaft
(6)
With Timer
(3)
Automatic Advance Timer
(not
included in the basic
model)
11900M10061
The flywheel stores the rotating force in the
combustion stroke as inertial energy, reduces crankshaft
rotating speed fluctuation and maintains the smooth
rotating conditions.
The flywheel periphery is inscribed with the marks
showing fuel injection timing angle lines and top dead
center mark
TC.
The flywheel has gear teeth around
its
outer rim,
which mesh with the drive pinion
of
the starter.
(1)
Crankshaft
(2)
Flywheel
(3)
Flywheel Screw
1
1900M
10081
M-9
