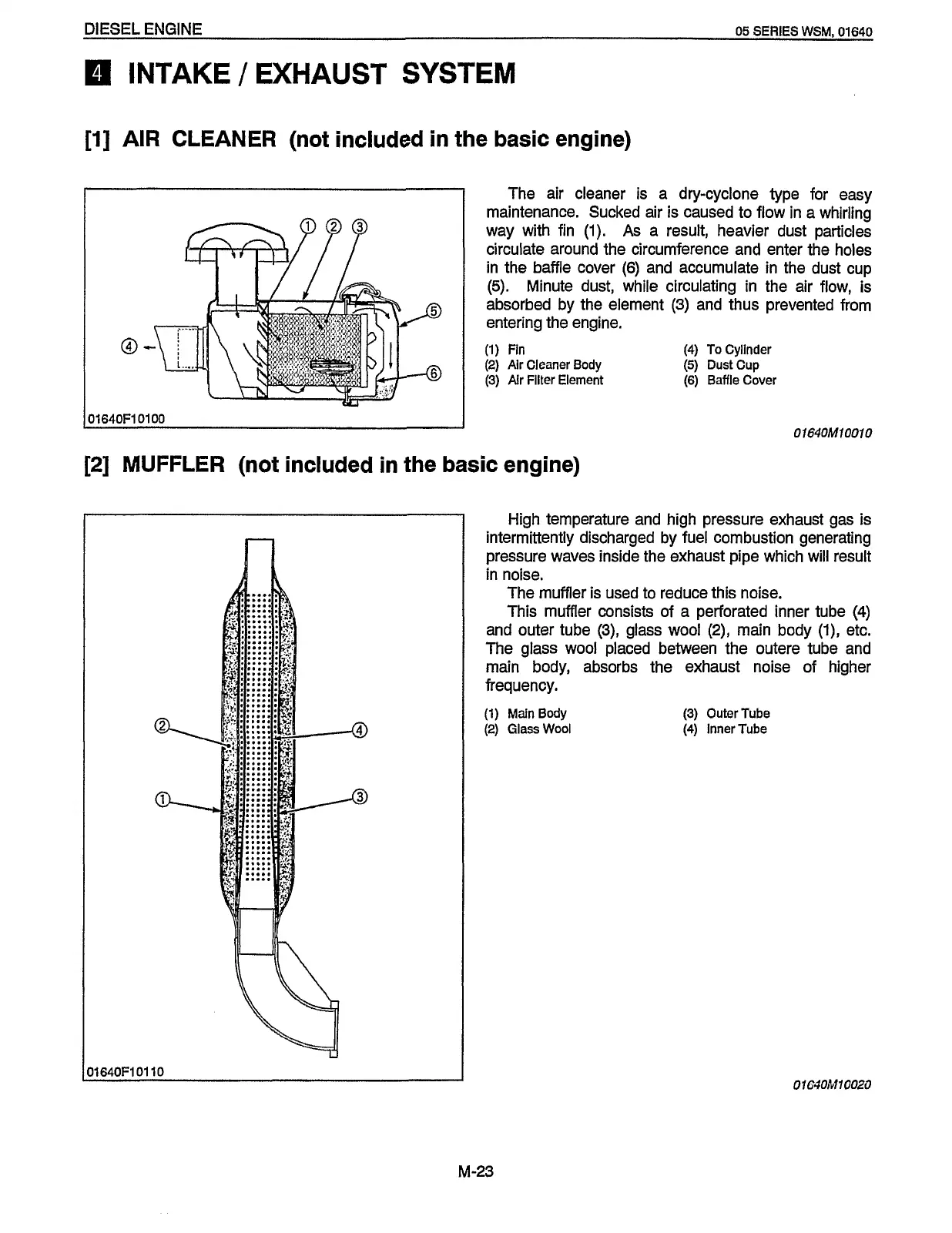

DIESEL ENGINE
05
SERIES
WSM,
01640
INTAKE
/
EXHAUST SYSTEM
[I]
AIR CLEANER (not included in the basic engine)
~01640F10100
I
The air cleaner is a dry-cyclone type for easy
maintenance. Sucked air is caused to flow in a whirling
way with fin
(1).
As
a result, heavier dust particles
circulate around the circumference and enter the holes
in the baffle cover
(6)
and accumulate in the dust cup
(5).
Minute dust, while circulating in the air flow,
is
absorbed by the element
(3)
and thus prevented from
entering the engine.
(1)
Fin
(4)
To
Cylinder
(2)
Air Cleaner Body
(5)
Dust Cup
(3)
Air Filter Element
(6)
Baffle Cover
01
640F101
01640M10010
[2]
MUFFLER (not included in the basic engine)
High temperature and high pressure exhaust gas is
intermittently discharged by fuel combustion generating
pressure waves inside the exhaust pipe which
will
result
in noise.
The muffler is used to reduce this noise.
This muffler consists
of
a
perforated inner tube
(4)
and outer tube
(3),
glass wool
(2),
main body
(I),
etc.
The glass wool placed between the outere tube and
main body, absorbs the exhaust noise
of
higher
frequency.
(I)
MainBody
(2)
Glass
Wool
(3)
Outer Tube
(4)
Inner Tube
01C40M10020
M-23
