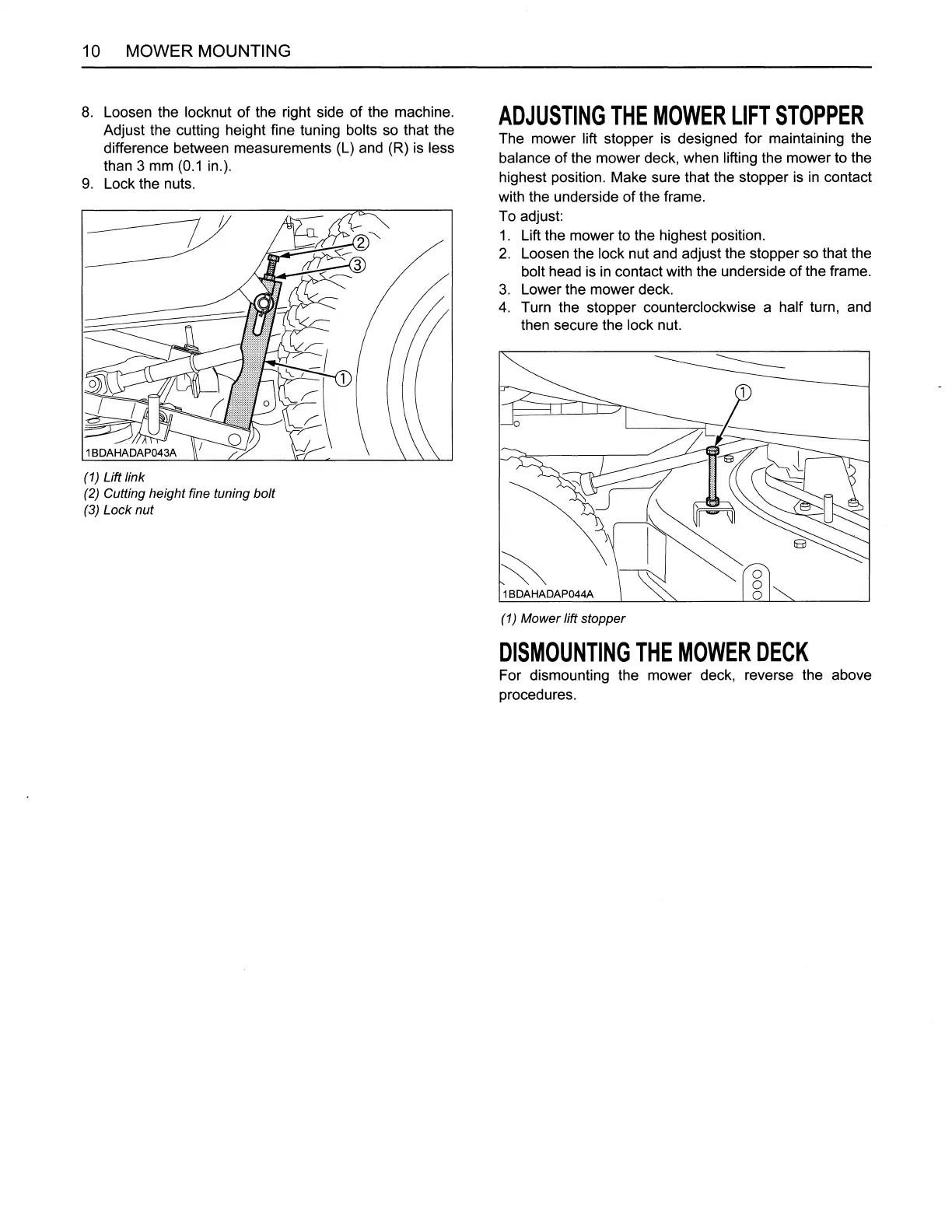

10
MOWER MOUNTING
8.
Loosen the locknut
of
the right side
of
the machine.
Adjust the cutting height fine tuning
bolts so that the
difference between measurements (L) and (R) is
less
than 3
mm
(0.1
in.).
9.
Lock the nuts.
(1)
Lift link
(2)
Cutting height fine tuning bolt
(3) Lock nut
ADJUSTING
THE
MOWER
LIFT
STOPPER
The mower lift stopper
is
designed for maintaining the
balance
of
the mower deck, when lifting the mower to the
highest position. Make sure that the stopper
is
in
contact
with the underside
of
the frame.
To adjust:
1.
Lift the mower to the highest position.
2.
Loosen the lock nut and adjust the stopper
so
that the
bolt head
is
in
contact with the underside
of
the frame.
3.
Lower the mower deck.
4.
Turn the stopper counterclockwise a half turn, and
then secure the
lock nut.
(1)
Mower lift stopper
DISMOUNTING
THE
MOWER
DECK
For dismounting the mower deck, reverse the above
procedures.
