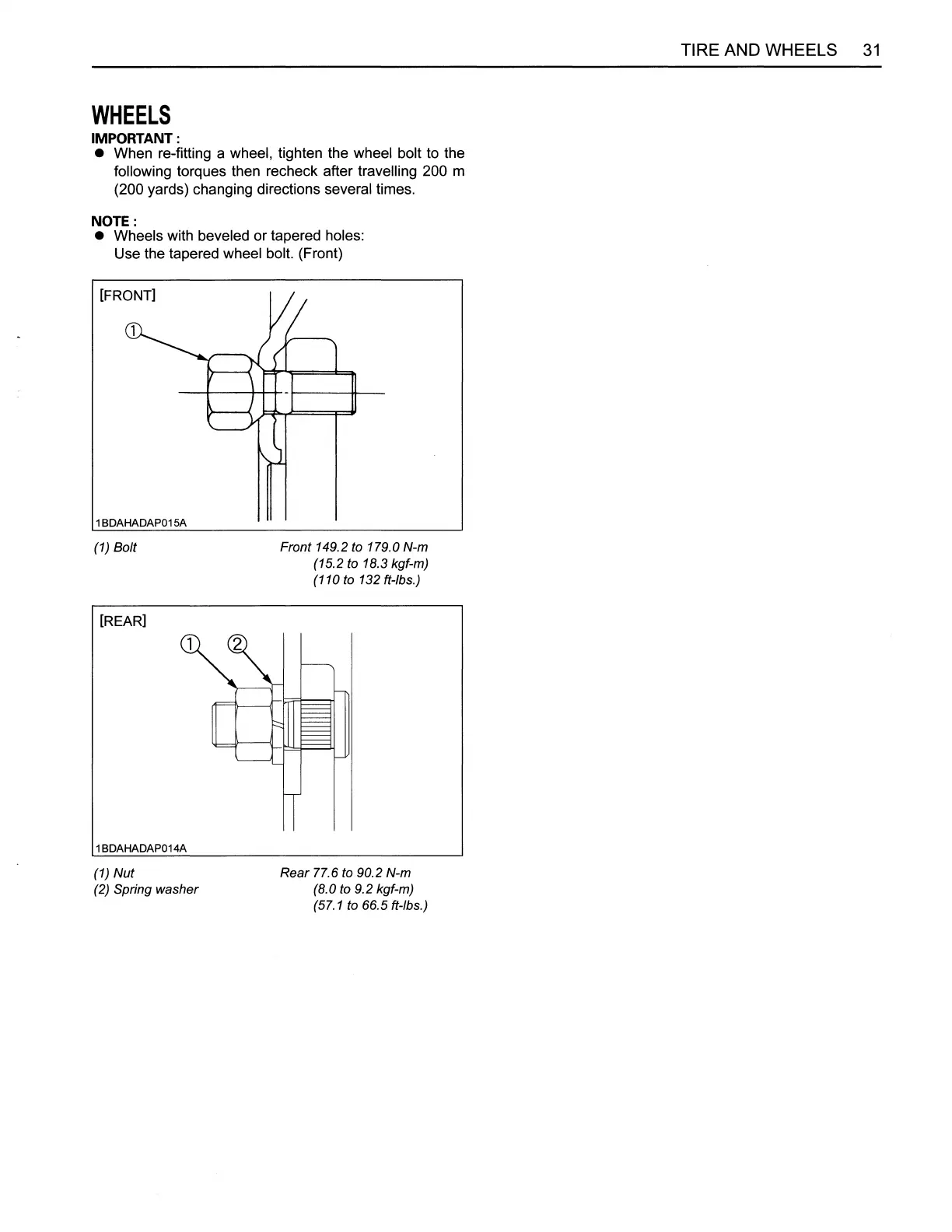

WHEELS
IMPORTANT:
• When re-fitting a wheel, tighten the wheel bolt to the
following torques then recheck after travelling 200 m
(200 yards) changing directions several times.
NOTE:
• Wheels with beveled or tapered holes:
Use the tapered wheel bolt. (Front)
[FRONT]
1 BDAHADAP015A
(1) Bolt
[REAR]
1BDAHADAP014A
(1) Nut
(2) Spring washer
Front
149.2 to 179.0 N-m
(15.2 to
18.3 kgf-m)
(110 to 132 ft-Ibs.)
Rear 77. 6 to 90.2 N-m
(8.0 to 9.2 kgf-m)
(57.1 to
66.5 ft-Ibs.)
TIRE AND WHEELS 31
