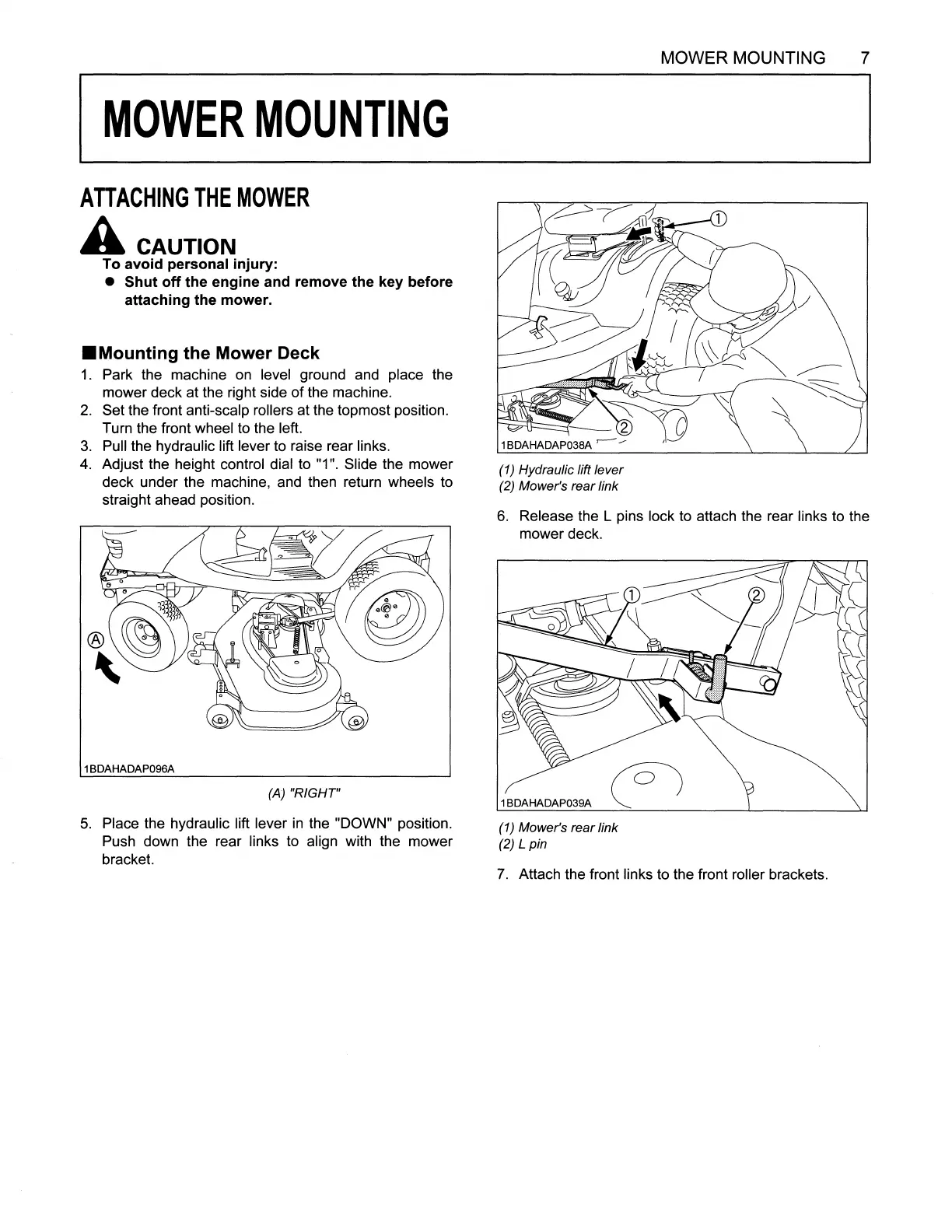

MOWER
MOUNTING
ATTACHING
THE
MOWER
A CAUTION
To avoid personal injury:
• Shut off the engine and remove the key before
attaching the mower .
• Mounting the
Mower
Deck
1.
Park the machine
on
level ground and place the
mower deck at the right side of the machine.
2.
Set the front anti-scalp rollers at the topmost position.
Turn the front
wheel to the left.
3.
Pull the hydraulic lift lever to raise rear links.
4.
Adjust the height control dial to "1". Slide the mower
deck under the machine, and then return
wheels to
straight ahead position.
1 BDAHADAP096A
(A)
"RIGHT"
5.
Place the hydraulic lift lever
in
the "DOWN" position.
Push down the rear
links to align with the mower
bracket.
(1) Hydraulic lift lever
(2)
Mower's rear link
MOWER MOUNTING 7
6.
Release the L pins lock to attach the rear links to the
mower deck.
(1) Mower's
rear
link
(2) L pin
7.
Attach the front links to the front roller brackets.
