95OTHER ADJUSTMENTS AND REPLACEMENTS
BAuxiliary Electric
Max power is less than 110 W including the equipped light
55W.
If you need another auxiliary electric, contact your
KUBOTA dealer for details.
BSlow Blow Fuse
A The main fuse protects the entire electrical system. If
the main fuse or another fuse has blown, determine
why it blew and make any necessary repairs.
Never bridge fuses, always replace them with a new
fuse of the same rating.
C Replacement procedure
1. Disconnect the negative cord of the battery.
2. Remove the slow blow fuse case.
3. Open the slow blow fuse case cap and cover then
remove the bolts and draw out the slow blow fuse (A)
and (B).
BElectric Fuse

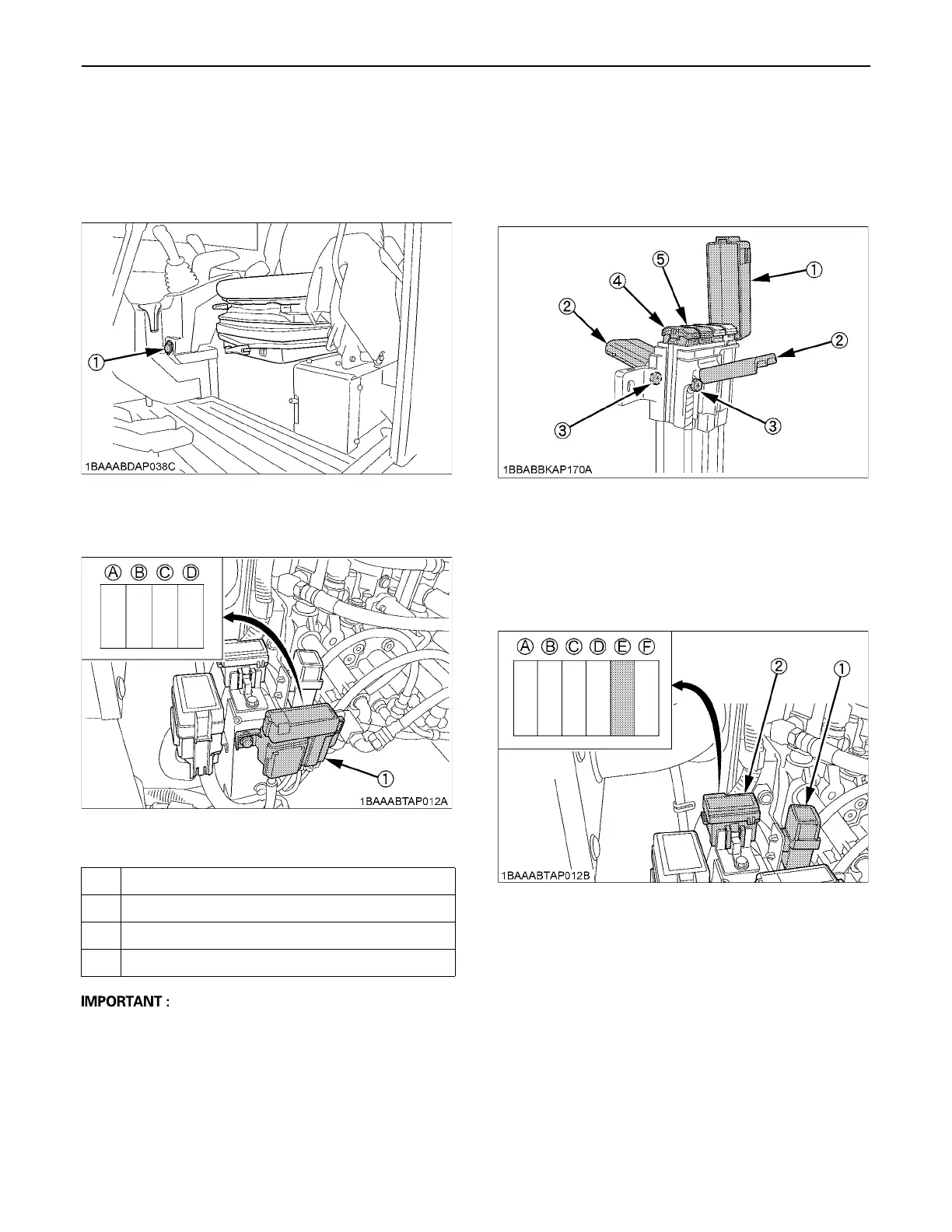

(1) Auxiliary Electric
(1) Slow blow fuse
(A) 100A Alternator
(B) 30A Engine ECU
(C) 60A Main Power
(D) 50A Engine Power
(1) Slow blow fuse case cap
(2) Cover
(3) Bolt
(4) Slow blow fuse (A)
(5) Slow blow fuse (B)
(1) Electric fan fuse (20A slow blow fuse)
(2) Air flow sensor (5A slow blow fuse) (E)
