72 REGULAR CHECKS AND MAINTENANCE WORK
REGULAR CHECKS AND MAINTENANCE WORK
To avoid personal injury or death:
A When operating, keep hands and body inside
of the ROPS/OPG (Top Guard Level I)
protective envelope.
A Do not touch the control levers and the pedals
from outside the cab during the engine
running.

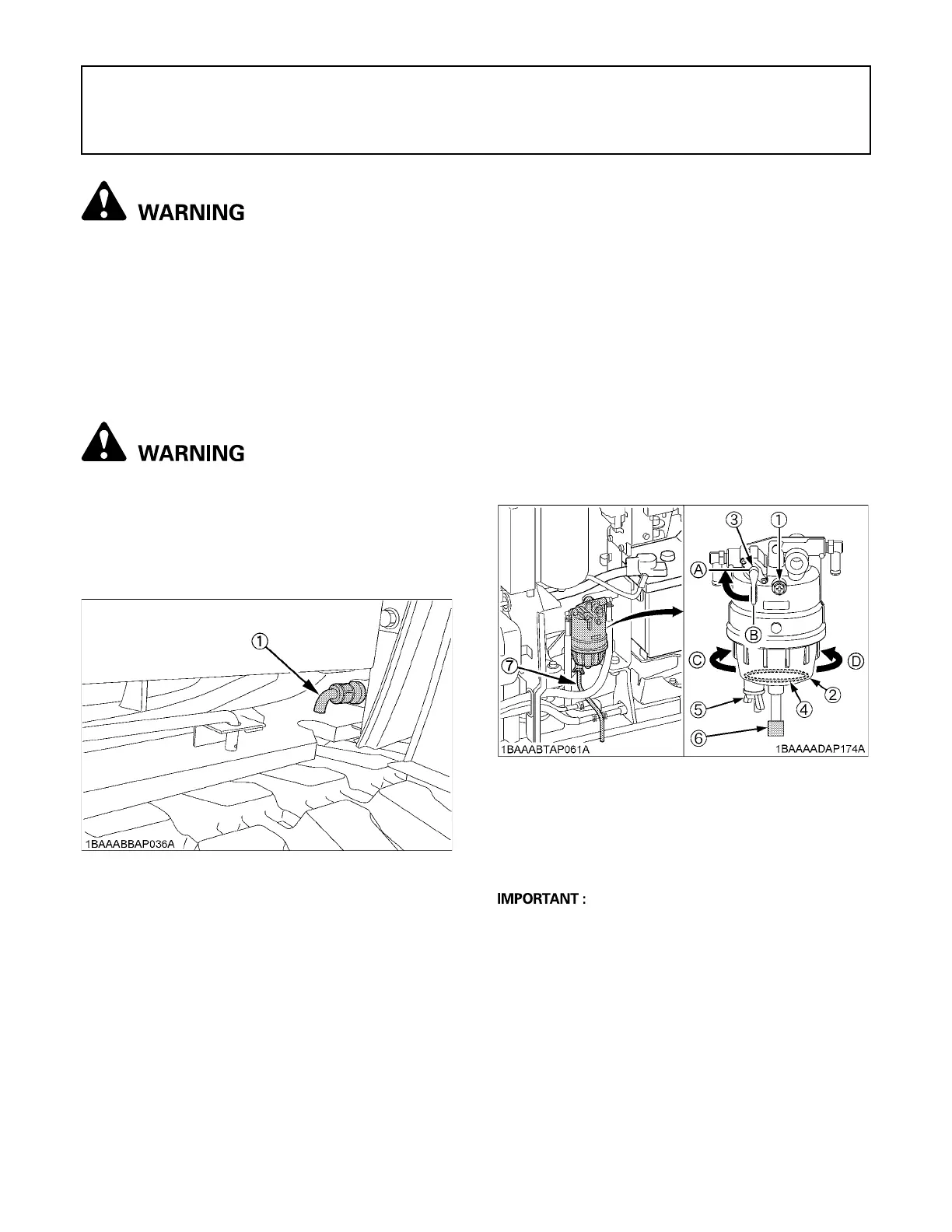

EVERY 50 SERVICE HOURS
BDraining the Water from the Fuel Tank
To avoid personal injury or death:
A Before draining the water from the fuel tank, be
sure to stop the engine and remove the key.
A Do not smoke during inspection.
1. Open the side cover.
2. Open the drain shutoff-valve.
BDraining Water Separator
[Checking and Draining]
Water and dirt contained in fuel will settle down in the
water separator. When such foreign substances are
deposited, set the water separator handle to the
"CLOSE" position. Loosen the top screw first and then
the bottom shutoff-valve to let the foreign substances out
of the separator.
Finally be sure to air-bleed the fuel system.
[Cleaning]
1. Set the water separator handle to the "CLOSE"
position.
2. Loosen and remove the cup proper, and clean its
inside with light oil.
3. Tighten up the cup proper.
A If the water separator is full with water, it means that
there may be water in the fuel filter. In such case, drain
the fuel filter.
(See "Draining Water Separator" in "REGULAR
CHECKS AND MAINTENANCE WORK" section.)
(1) Drain shutoff-valve
(1) Screw
(2) Cup
(3) Water separator handle
(4) Float
(5) Shutoff-valve
(6) Connector of water level sensor
(7) Hose
(A) "CLOSE"
(B) "OPEN"
(C) Loosen
(D) Tighten
To Next Page
