CHECKS BEFORE START22
BOpening/Closing of CAB Door
1. Unlock the CAB door and pull the knob. Open the CAB
door fully until fixed into place.
2. To close the CAB door, push the release lever down
and close the door.
3. When leaving the excavator, always lock the door.
BOpening/Closing of Front CAB Window
To avoid personal injury or death:
A Keep hands and feet away from the area
between front window and CAB frame.
Otherwise the operator risks serious pinching
or crushing injuries.
A Other persons should stay away when opening
the window.
To open and close the front window, take the steps below.
1. Push the lock levers beside grip.
2. Hold the grips tightly with both hands. Pull the grip
slightly upward and toward yourself to let the
windshield slide inward.
3. Pull the windshield all the way to the lock at the back
of CAB.
4. To close the window, take the reverse steps 3, 2 and 1.

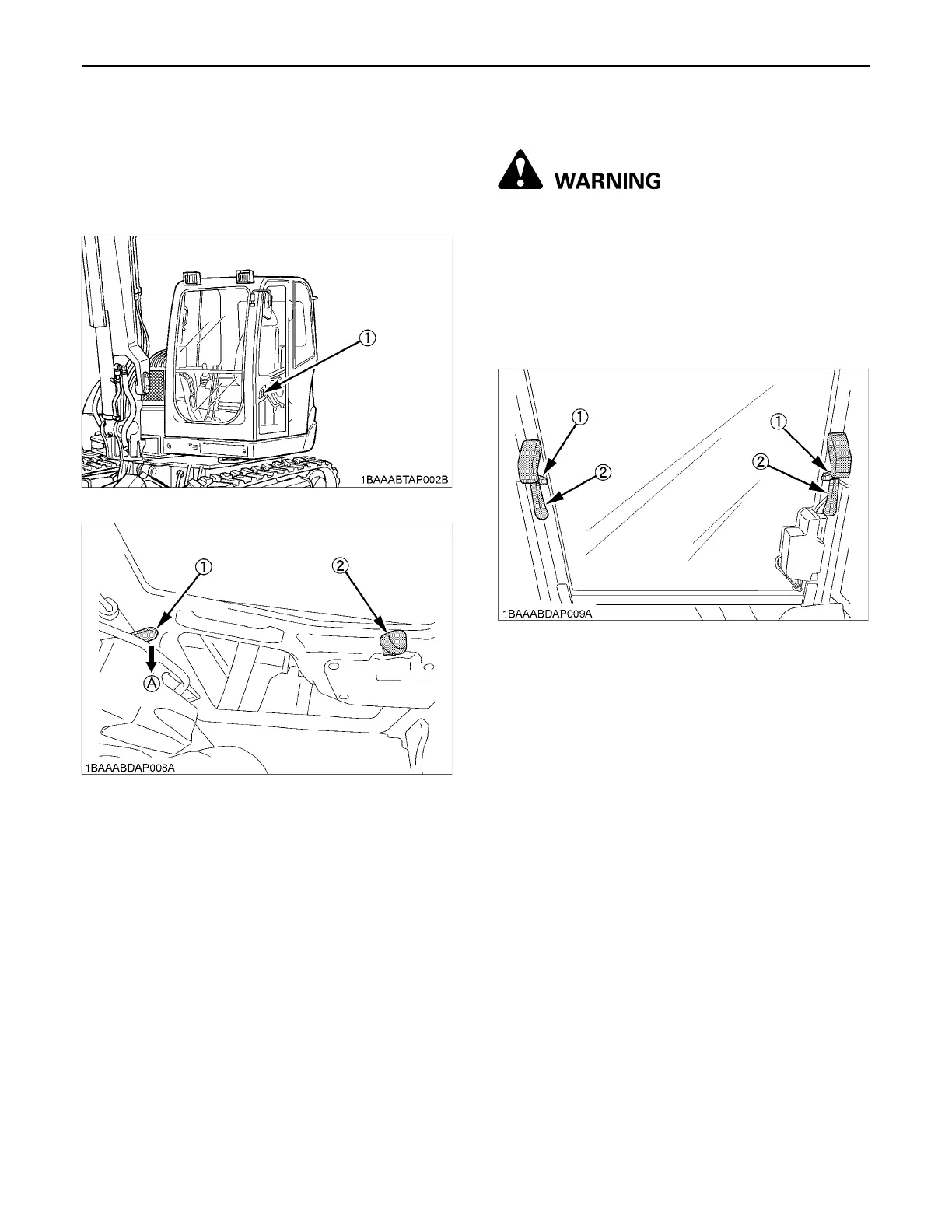

(1) Door knob (outside)
(1) Release lever
(2) Door knob (inside)
(A) Push down
(1) Lock lever
(2) Grip
