6 INSTRUMENT PANEL AND CONTROL ELEMENTS

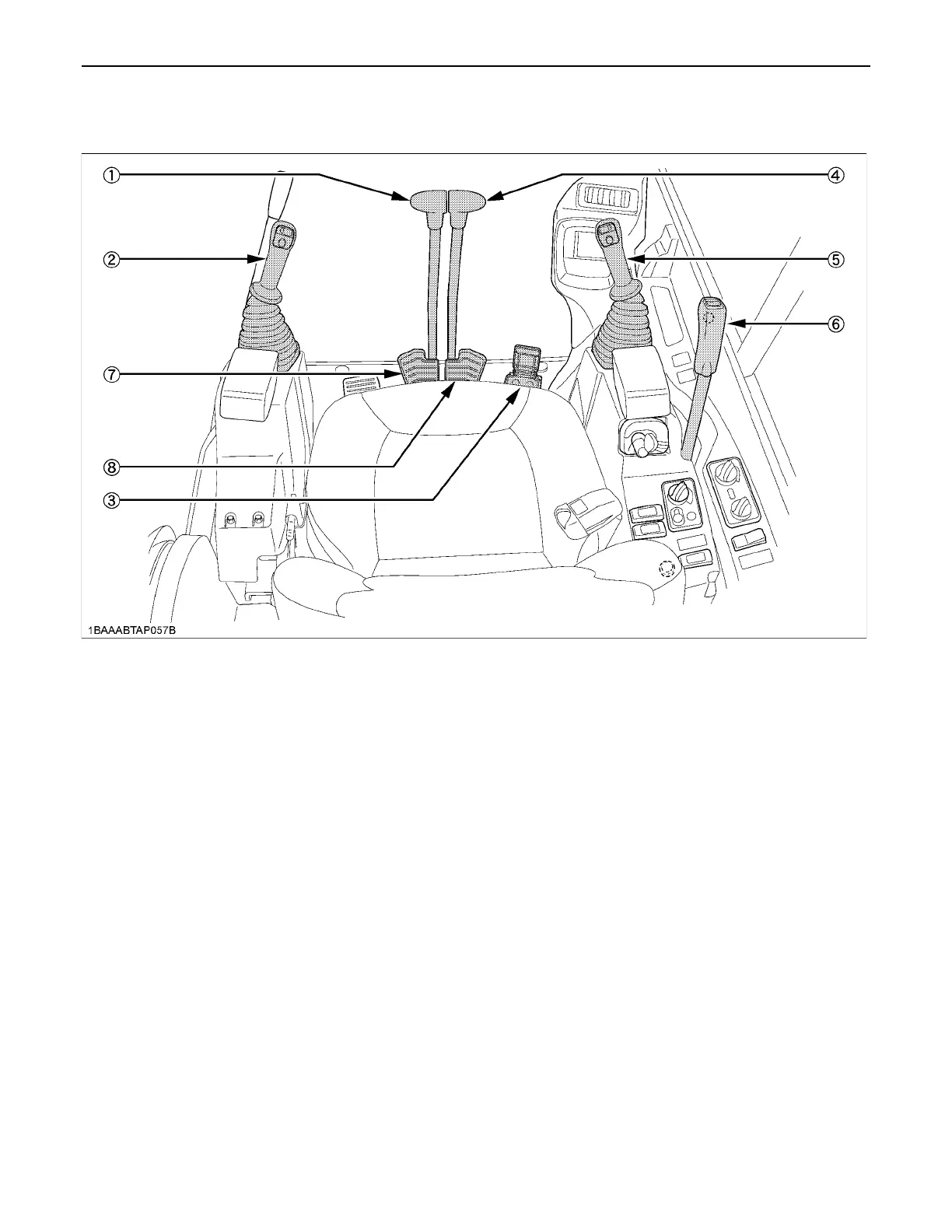

B Control Pedals and Levers
(1) Drive lever (left)
(2) Attachment control lever (left)
(3) Boom swing pedal
(4) Drive lever (right)
(5) Attachment control lever (right)
(6) Dozer control lever
(7) Drive pedal (left)
(8) Drive pedal (right)
Ref. page
Drive lever (left) ............................................... 34
Attachment control lever (left) .......................... 38, 39
Boom swing pedal ........................................... 39
Drive lever (right) ............................................. 34
Attachment control lever (right) ....................... 38, 39
Dozer control lever .......................................... 36
