87TIRES, WHEELS AND BALLAST
BRear Wheels

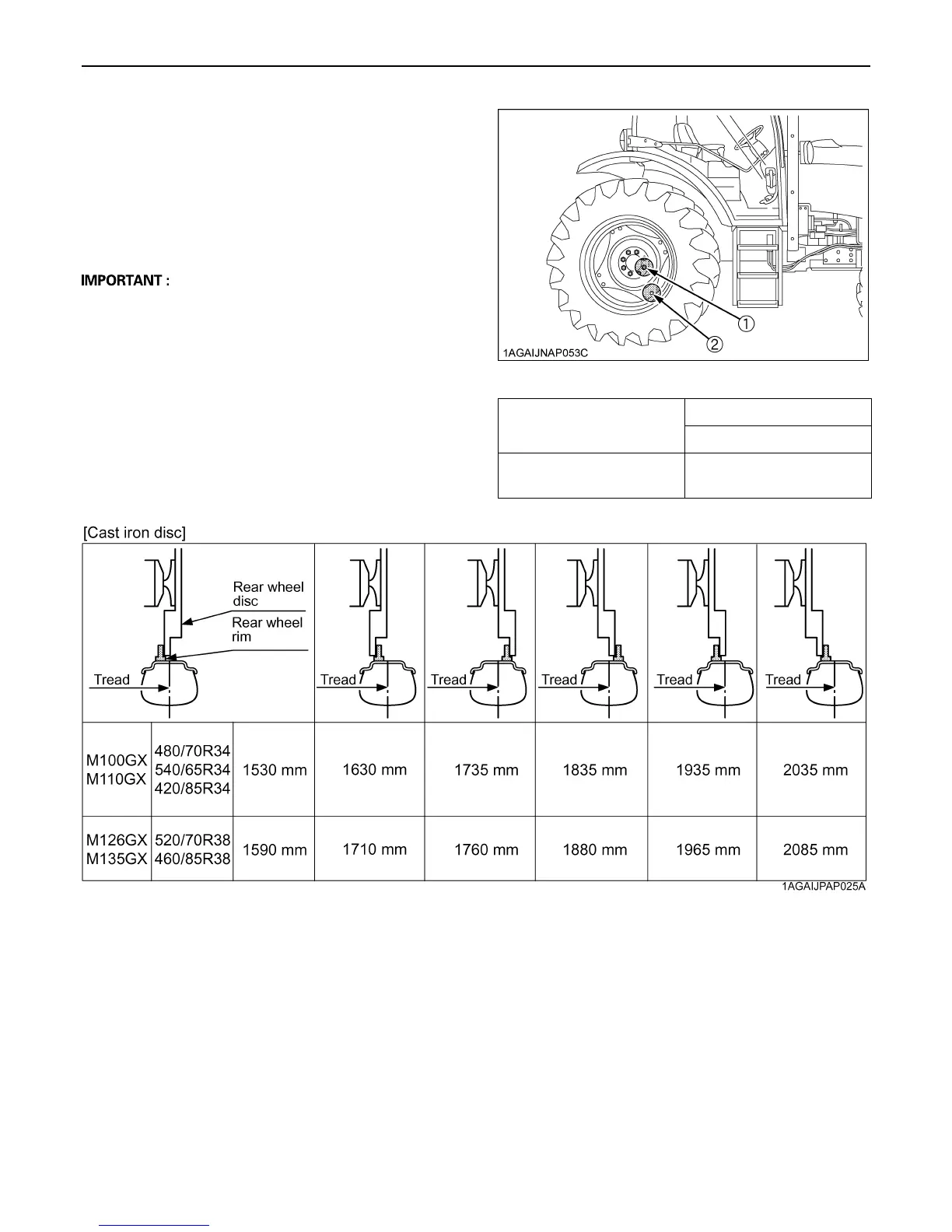

Rear tread width can be adjusted as shown with the
standard equipped tires.
To change the tread width
1. Remove the wheel rim and / or disk mounting bolts.
2. Change the position of the rim and / or disk (right and
left) to the desired position, and tighten the bolts.
A Always attach wheels as shown in the drawing.
A If not attached as illustrated, transmission parts may
be damaged.
A When re-fitting or adjusting a wheel, tighten the bolts
to the following torques then recheck after driving the
tractor 200m (200 yards) and 10 times of shuttle
movement by 5 m (5 yards), and thereafter according
to service interval. (See "MAINTENANCE" section.)
N-m (kgf-m)
(1)
(2)
Cast iron disk
343 to 401
(35.0 to 41.0)
305 to 325
(31.1 to 33.2)
To Next Page
