G-23
05-E3B, 05-E3BG, WSM
G GENERAL
[12] CHECK POINTS OF EVERY 3000 HOURS

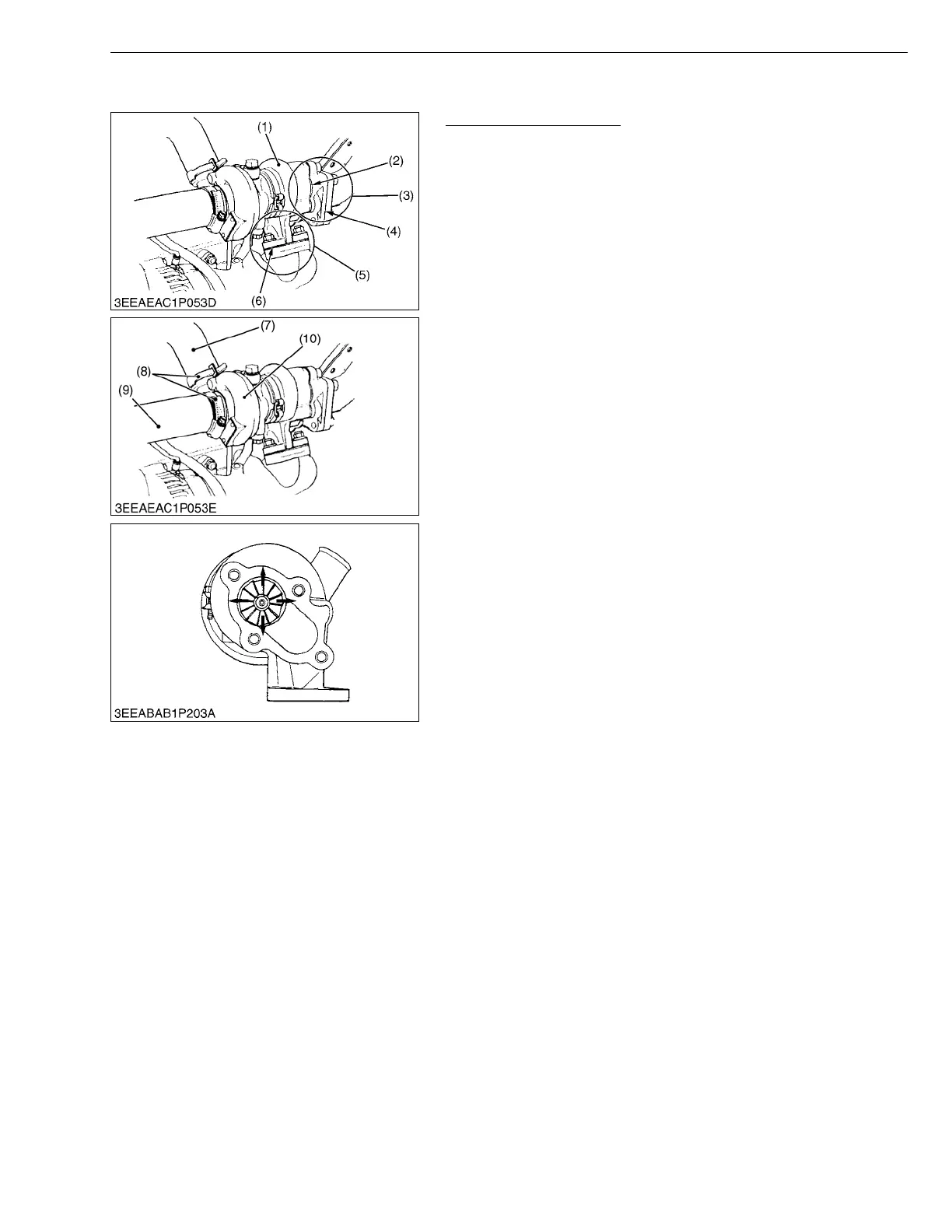

Checking Turbocharger
(Turbine Side)
1. Check the exhaust port (3) and inlet port (5) side of turbine
housing (1) to see if there is no exhaust gas leak.
2. If any gas leak is found, retighten the bolts and nuts or replace
the gasket (2) / (4) / (6) with new one.
(Compressor Side)
1. Check the inlet hose (9) of the compressor cover (10) to see if
there is no air leak.
2. If any air leak is found, change the clamp (8) and / or inlet hoses.
3. Check the intake hose (7) and the clamp to see if there is not
loose or crack.
4. If any loose or crack is found, tighten the cramp or change the
hose to prevent dust from entry.
(Radial Clearance)
1. If the wheel contact to the housing, replace the turbocharger
assembly with new one.
W1022082
(1) Turbine Housing
(2) Gasket
(3) Exhaust Port
(4) Gasket
(5) Inlet Port
(6) Gasket
(7) Intake Hose
(8) Clamp
(9) Inlet Hose
(10) Compressor Cover
