[4] BOOST COMPENSATOR
W1013537

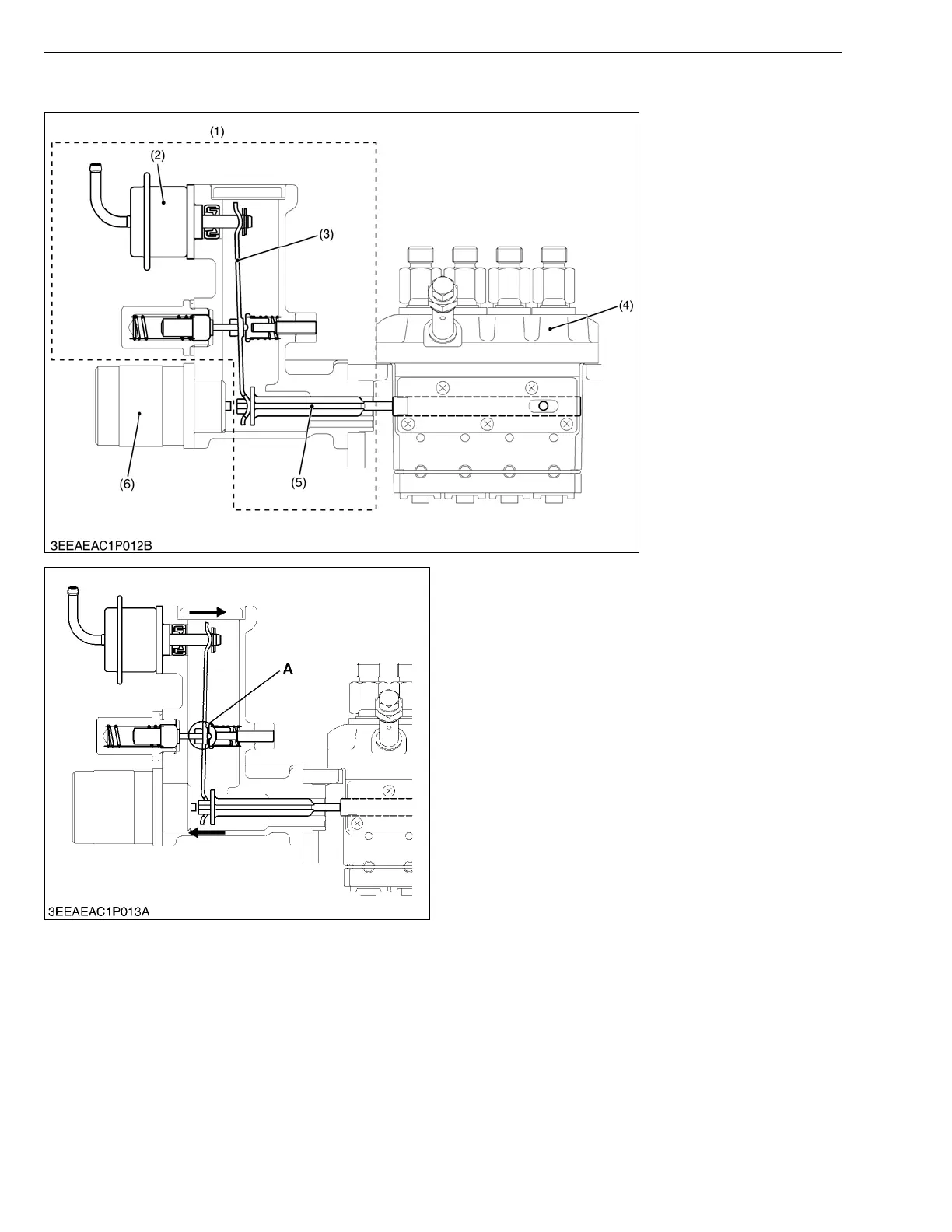

Boost compensator is the device that reduces black
smoke during the engine startup and acceleration.
The rod of actuator (2) is pushed out by the rise of
boost pressure, and the plate (3) moves in the direction
of the fuel increase around the fulcrum (A).
W1013615
(1) Boost Compensator
Assembly
(2) Actuator
(3) Plate
(4) Injection Pump Assembly
(5) Guide
(6) Stop Solenoid
A : Fulcrum
