M-1
05-E3B, 05-E3BG, WSM
DIESEL ENGINE
1. ENGINE BODY
[1] CLOSED BREATHER
Closed breather system has been adopted to prevent
the release of blow-by gas into the atmosphere.
After its oil content is filtered by oil shield (4), the blow-
by gas in fed back to the intake manifold through
breather valve (3) to be used for re-combustion.
W1012956
[2] HALF-FLOATING HEAD COVER (D1305-E3B / E3BG)
The rubber packing is fitted in to maintain the cylinder
head cover 0.5 mm (0.02 in.) or so off the cylinder head.
This arrangement helps reduce noise coming from the
cylinder head.
W1013327

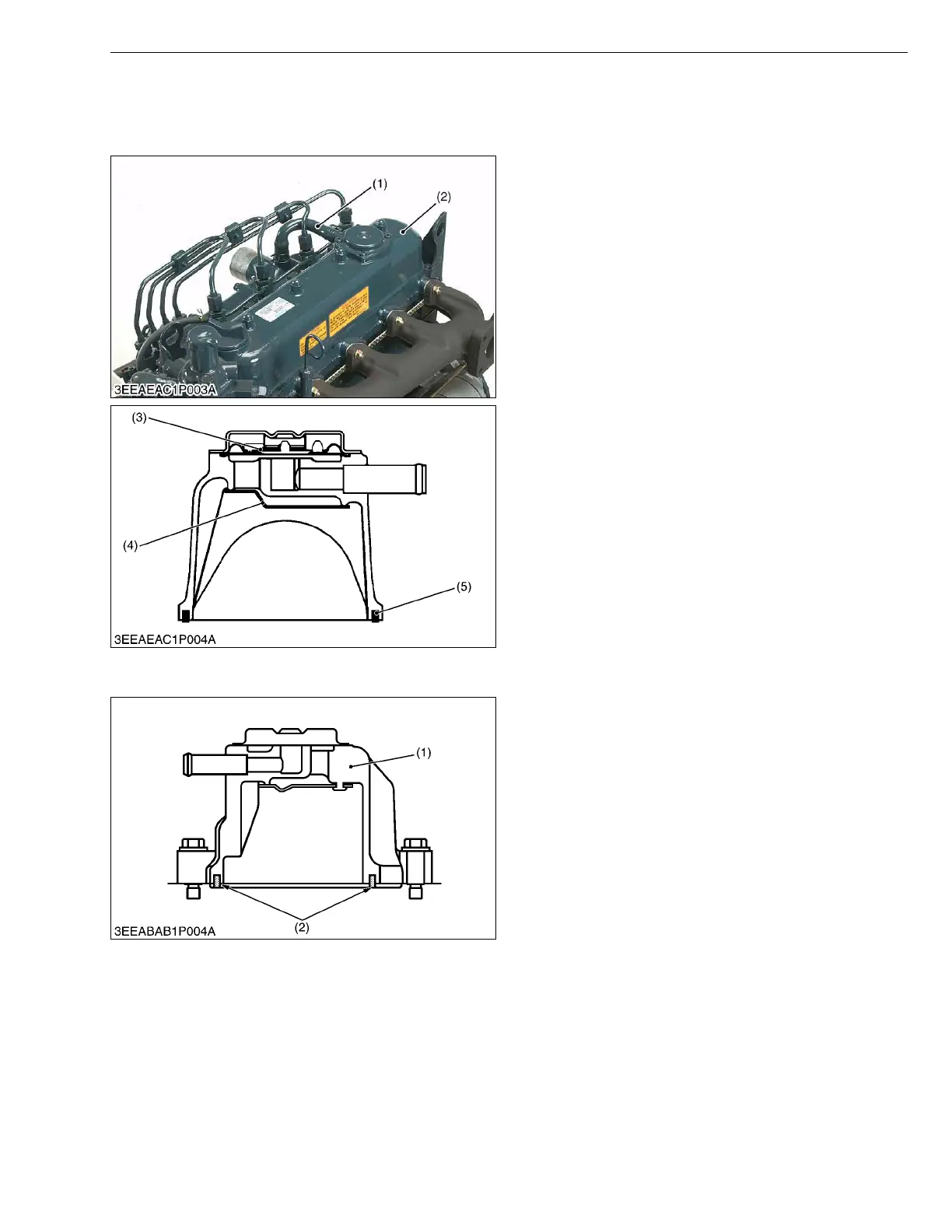

(1) Breather Tube
(2) Cylinder Head Cover
(3) Breather Valve
(4) Oil Shield
(5) Rubber Packing
(1) Cylinder Head Cover (2) Rubber Packing
To Next Page
