S-31
05-E3B, 05-E3BG, WSM
DIESEL ENGINE
(3) Cylinder Head and Valve
Cylinder Head Cover
1. Disconnect the breather hose (1).
2. Remove the cylinder head cover screw (2).
3. Remove the cylinder head cover (3).
(When reassembling)
• Check to see if the cylinder head cover gasket is not defective.
[D1005-E3B / E3BG, D1105-E3B / E3BG, D1105-T-E3B,
V1505-E3B / E3BG, V1505-T-E3B]
[D1305-E3B / E3BG]
W1085242
Injection Pipes
1. Loosen the screws to the pipe clamp (1).
2. Detach the injection pipes (2).
(When reassembling)
• Send compressed air into the pipes to blow out dust. Then,
reassemble the pipes in the reverse order.
W1028640
Tightening torque Cylinder head cover screw
7 to 8 N·m
0.7 to 0.9 kgf·m
5 to 6 lbf·ft
Tightening torque Cylinder head cover screw
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.24 to 8.31 lbf·ft

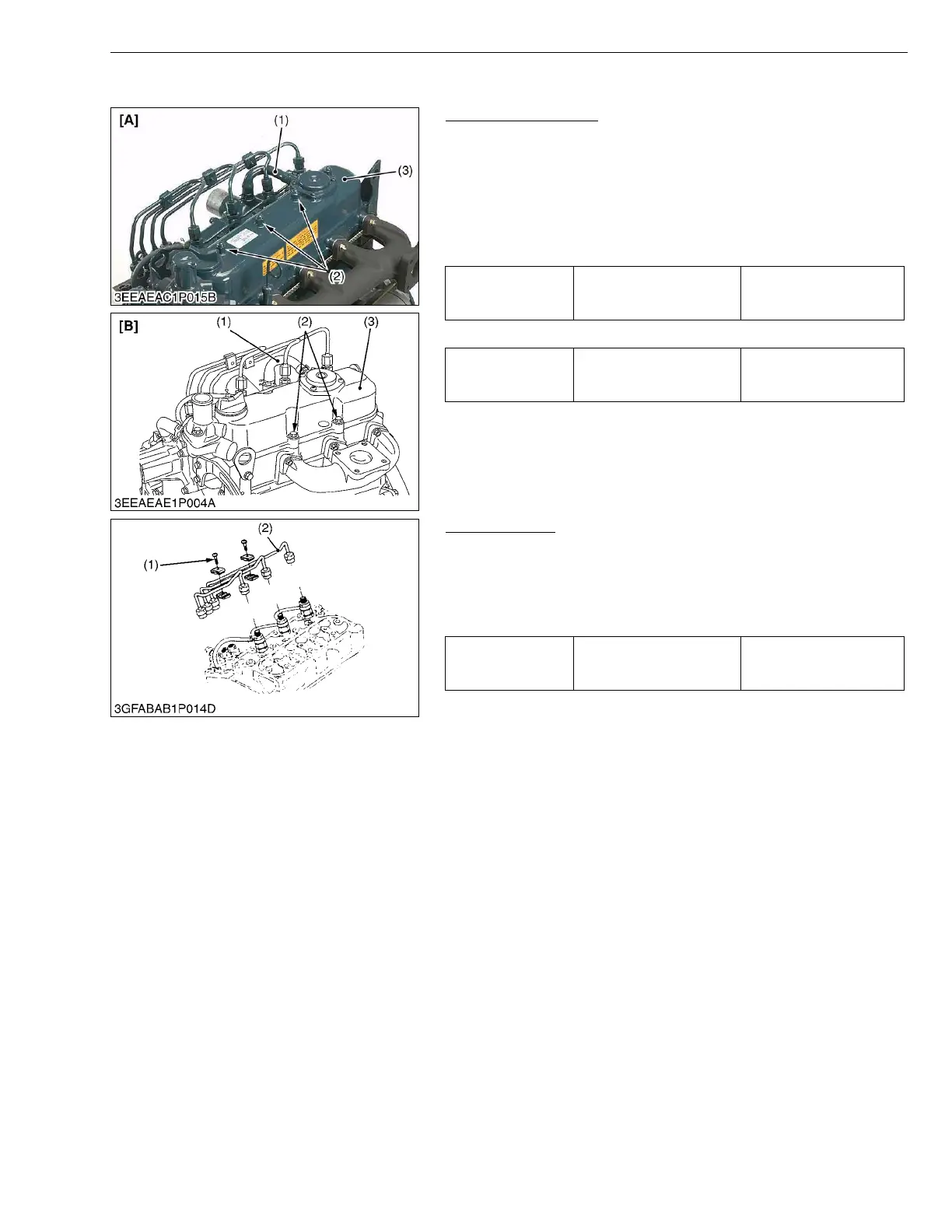

(1) Breather Hose
(2) Cylinder Head Cover Screw
(3) Cylinder Head Cover
[A] D1005-E3B / E3BG,
D1105-E3B / E3BG, D1105-T-E3B,
V1505-E3B / E3BG, V1505-T-E3B
[B] D1305-E3B / E3BG
Tightening torque Injection pipe retaining nut
25 to 34 N·m
2.5 to 3.5 kgf·m
18 to 25 lbf·ft
(1) Pipe Clamp (2) Injection Pipe
KiSC issued 12, 2007 A
