S-30
05-E3B, 05-E3BG, WSM
DIESEL ENGINE
[2] DISASSEMBLING AND ASSEMBLING
(1) Draining Oil and Coolant
Draining Oil and Coolant
CAUTION
• Never remove radiator cap until coolant temperature is
below its boiling point. Then loosen cap slightly to the stop
to relieve any excess pressure before removing cap
completely.
1. Prepare a bucket. Open the drain cock to drain coolant.
2. Prepare an oil pan. Remove the drain plug to drain engine oil in
the pan.
W1021151
(2) External Components
Air Cleaner and Muffler
1. Remove the air cleaner.
2. Remove muffler retaining nuts to remove the muffler.
(When reassembling)
• Install the muffler gasket so that its steel side face the muffler.
W1021239

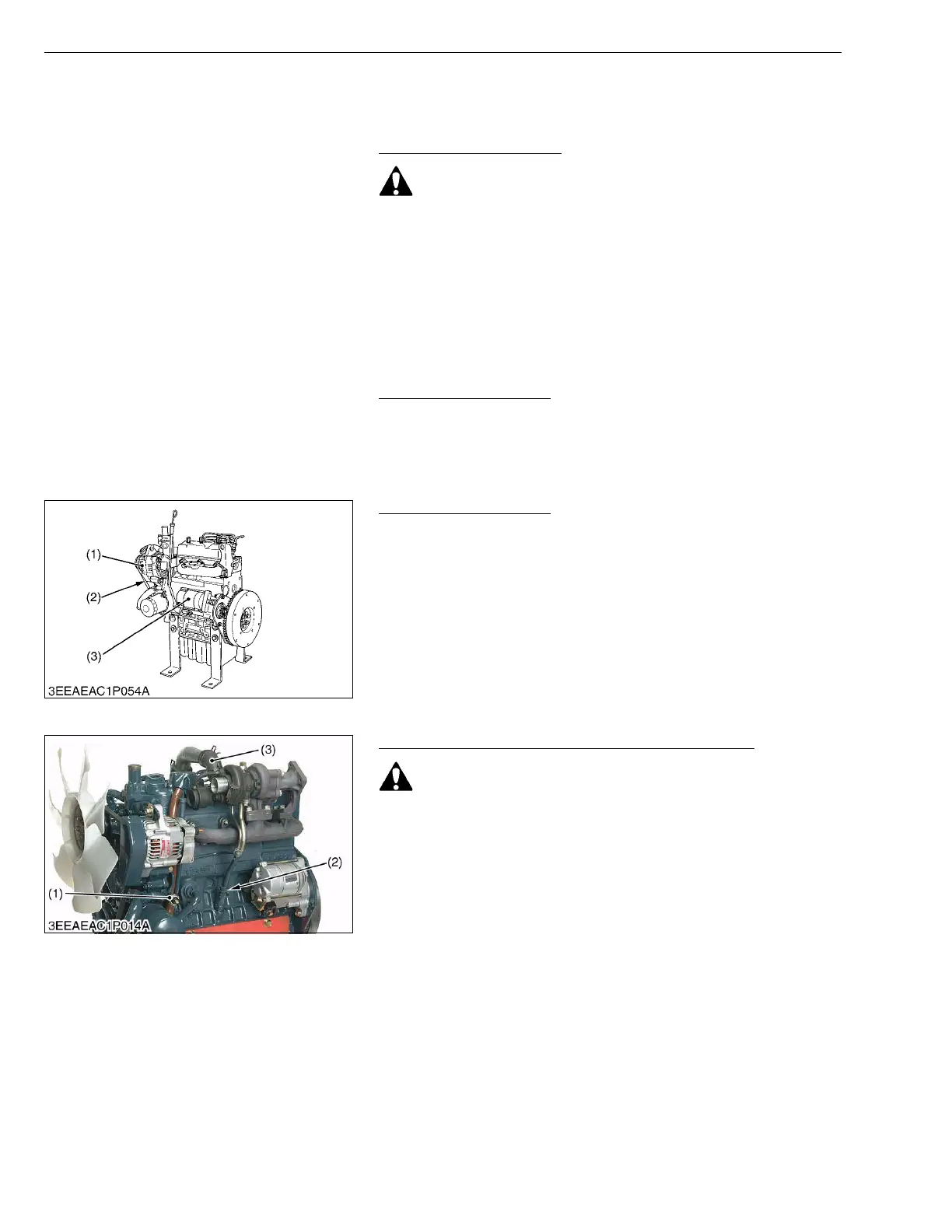

Alternator and Fan Belt
1. Remove the alternator (1).
2. Remove the fan belt (2).
3. Remove the starter (3).
(When reassembling)
• Check to see that there are no cracks on the belt surface.
• After reassembling the fan belt, be sure to adjust the fan belt
tension.
W1021324
Turbocharger (equipped with Turbocharger Model)
CAUTION
• While the engine is running and or just after it stops, the
turbocharger is hot, be careful not to touch the
turbocharger.
• When detaching and attaching the turbocharger assembly,
be very careful not to allow dust, dirt and other foreign
matters in the oil pipes.
• When the turbocharger assembly has been replaced, pour
fresh engine oil through the oil filter port of the
turbocharger.
• Before starting the engine, make sure that the air cleaner
position.
1. Disconnect the intake hose (3).
2. Remove the oil switch (1).
3. Disconnect the pipe band (2).
4. Remove the exhaust manifold with turbocharger.
W1115178
(1) Alternator
(2) Fan Belt
(3) Starter
(1) Oil Switch
(2) Pipe Band
(3) Intake Hose
To Next Page
